Rear Upper Control Arm: Removal

Torque: 131 N*m (1,340 kgf*cm, 97 ft.*lbf)

1. LH side:
   1. Place matchmarks on the height control sensor link and upper control arm.
   2. Remove the nut and disconnect the height control sensor link.

   Torque: 5.6 N*m (57 kgf*cm, 49 in.*lbf)

   Fig 1: Placing Matchmarks On Height Control Sensor Link

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the ABS speed sensor wire harness.
2. RH side:
   1. Remove the bolt and heat insulator.

   Torque: 18 N*m (185 kgf*cm, 13 ft.*lbf)

3. Remove the 2 nuts, washers, bolts and upper control arm.

Torque: 150 N*m (1,530 kgf*cm, 111 ft.*lbf)

HINT:

At the time of installation, please refer to the follow items.

• Replace the 2 used nuts with new ones.
• After stabilizing the suspension, torque the nuts.

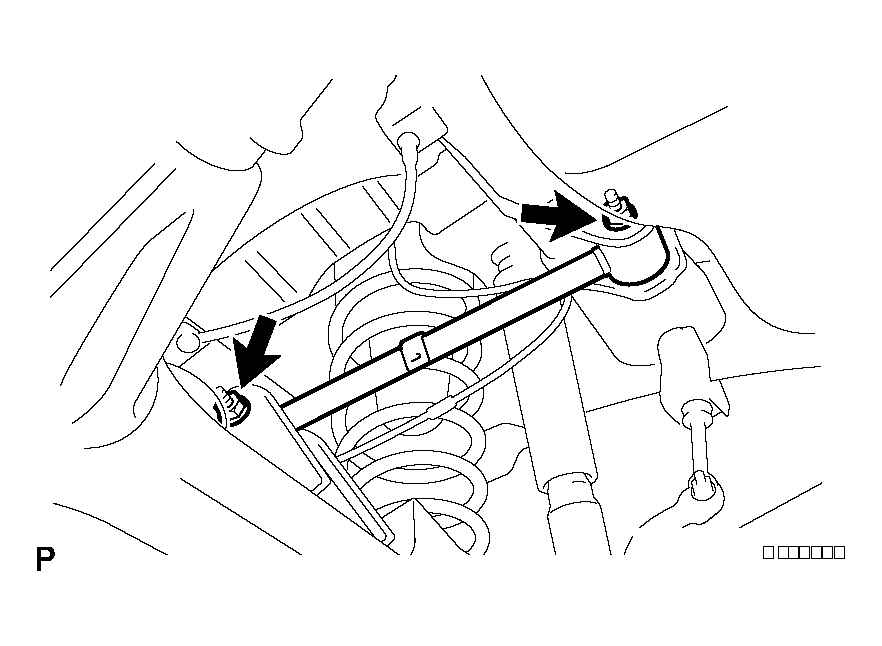

Fig 2: Identifying Nuts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
