Valve Body: Components

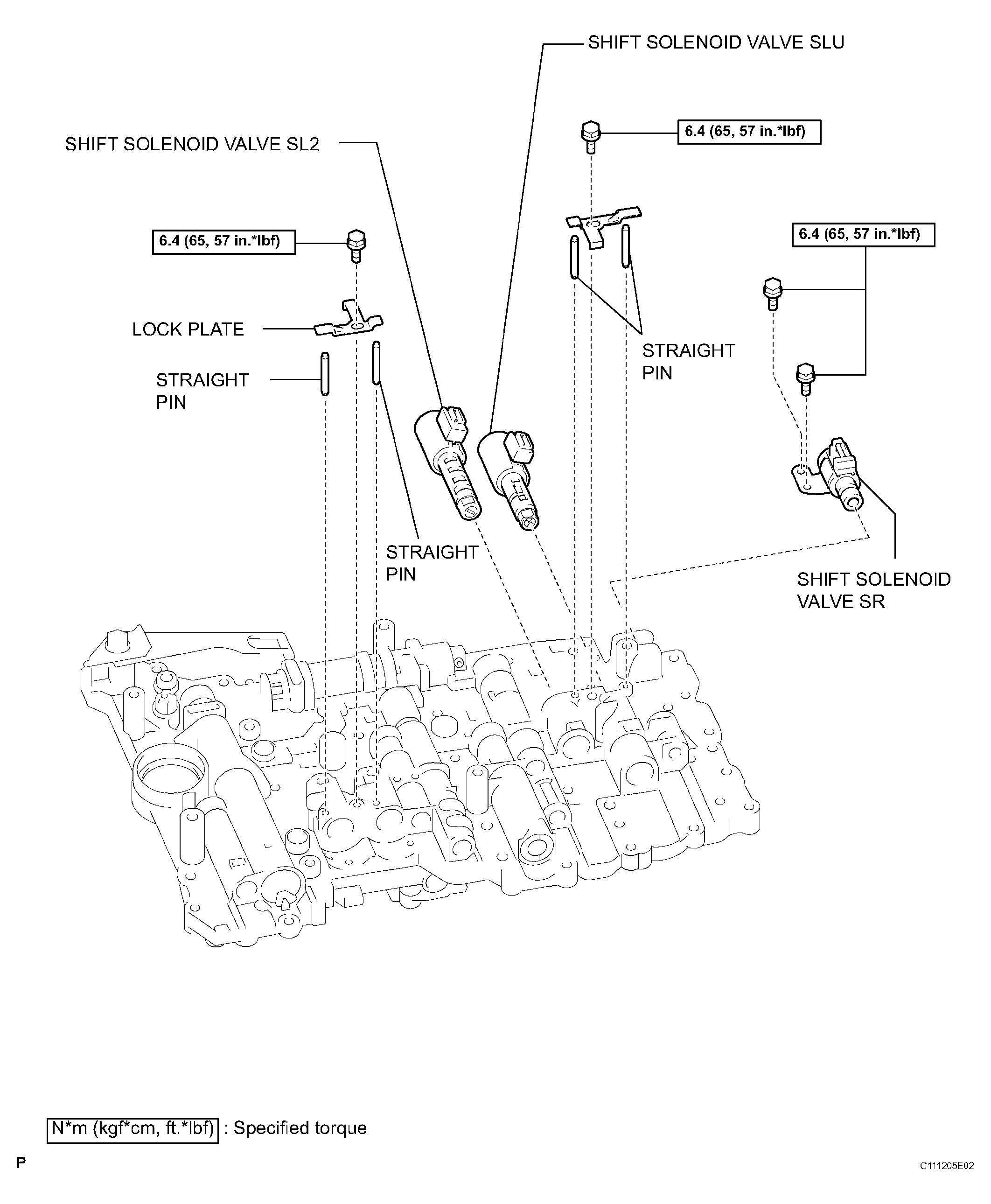

Fig 1: Identifying Valve Body Components (1 Of 2)
G04063051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

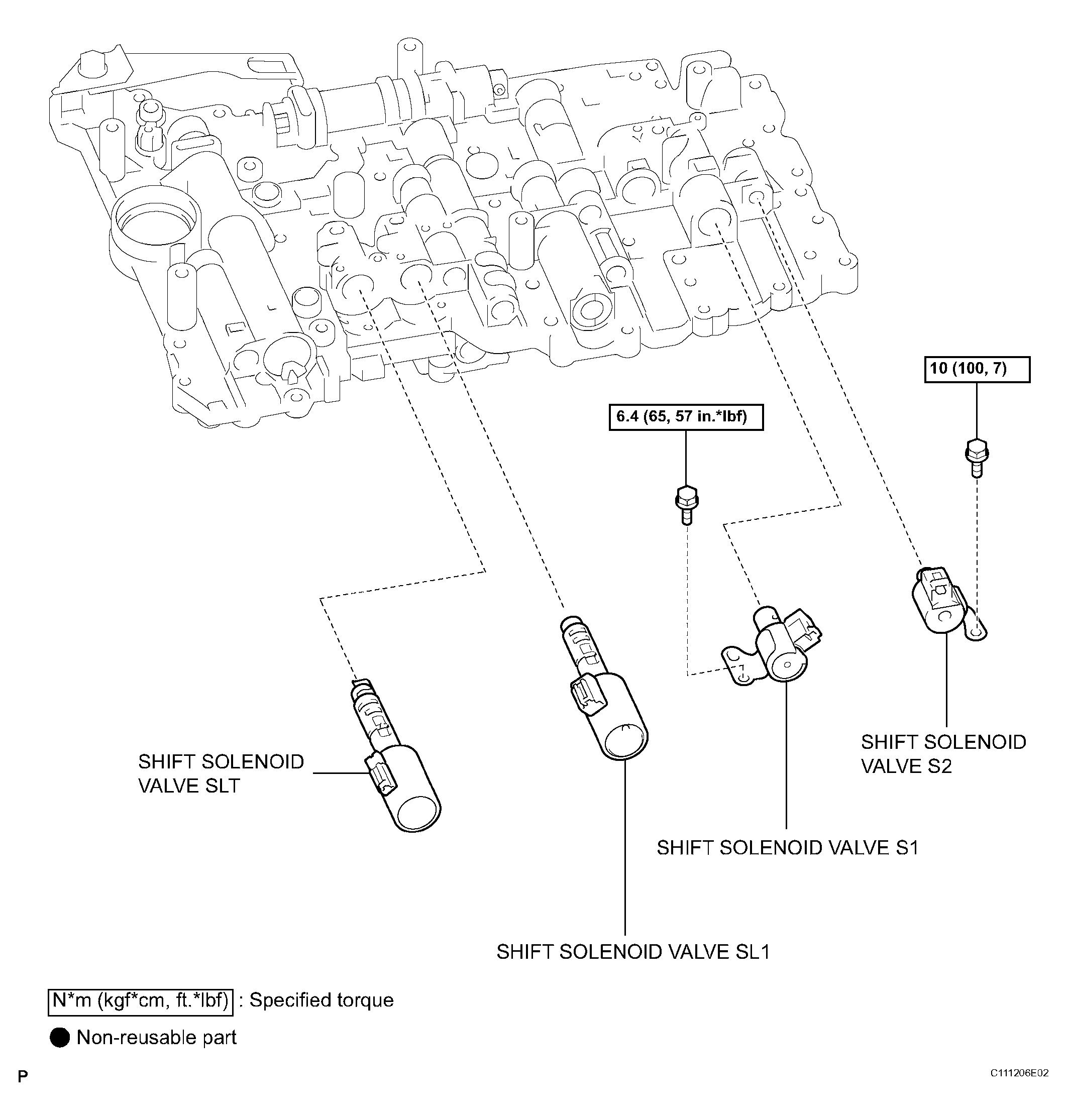

Fig 2: Identifying Valve Body Components (2 Of 2)
G04063052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
