Parts Location

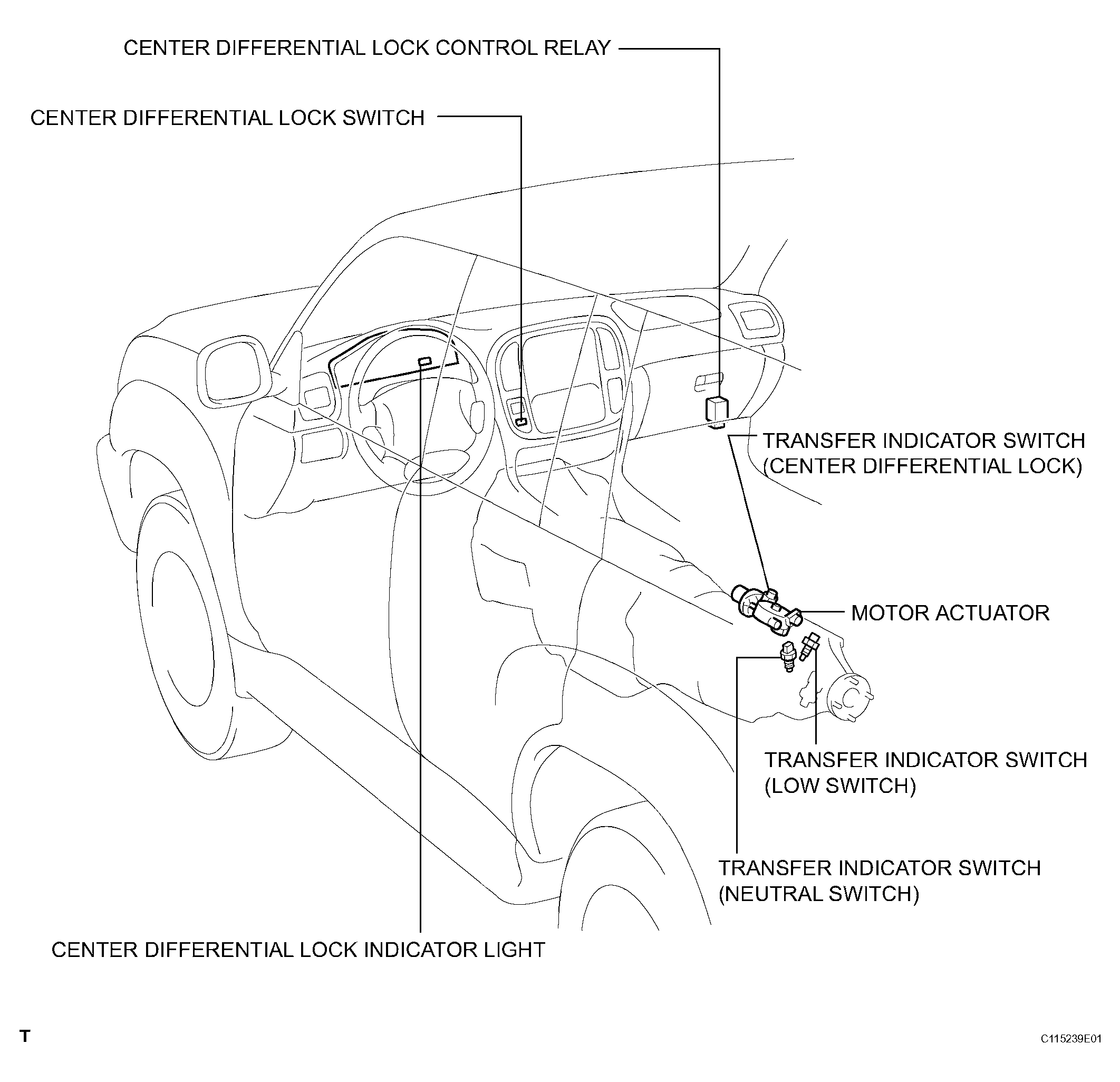

Fig 1: Identifying Transfer System Components Location - (HF2A)
G04063070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
