Dynamic Laser Cruise Control System
›
Parts Location
Parts Location

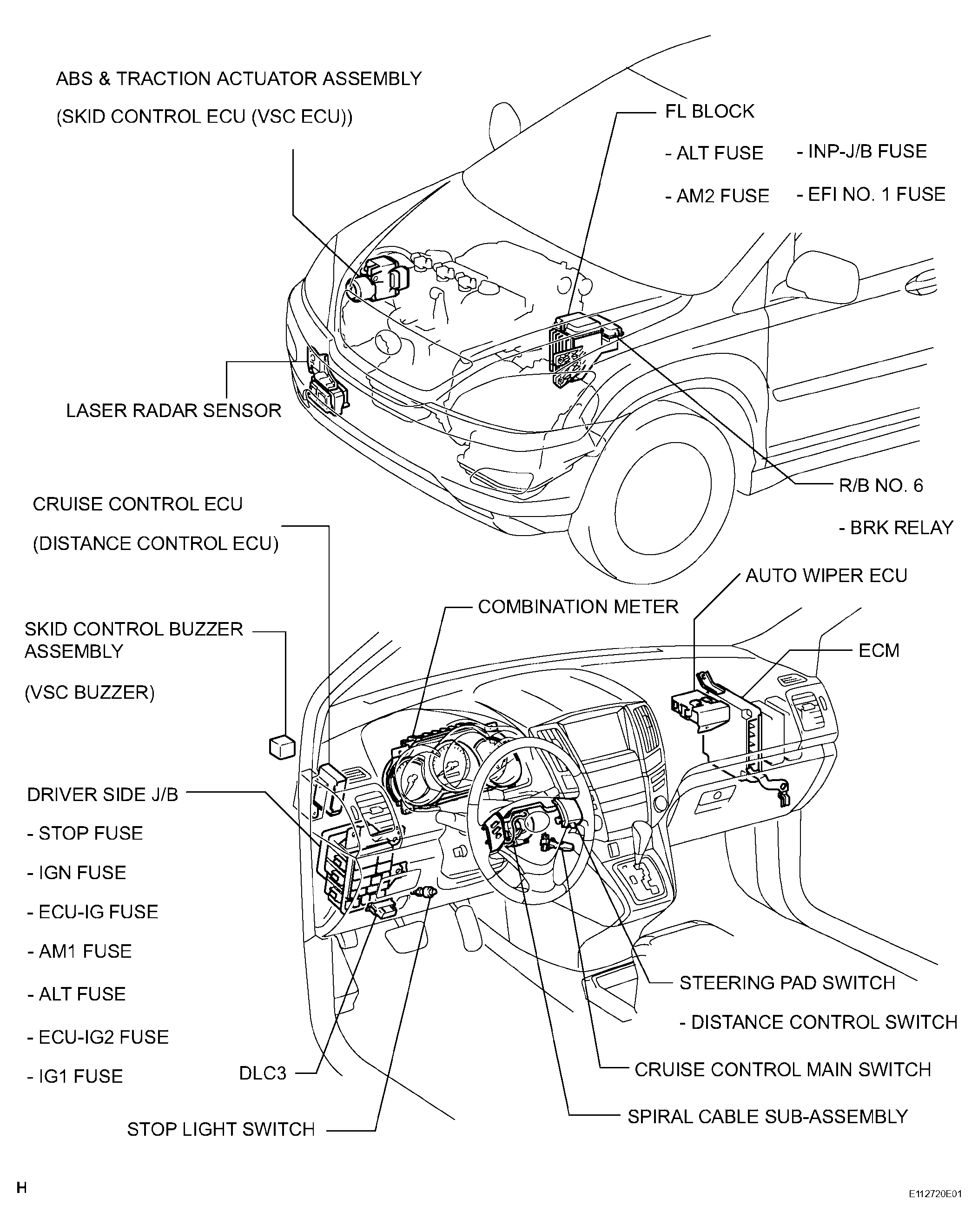

Fig 1: Identifying Dynamic Laser Cruise Control System Parts Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
