Repair and Diagnosis
›
Accessories & Equipment
›
Cruise Control Systems
›
Cruise Control
›
Laser Sensor
›
Components
Laser Sensor: Components

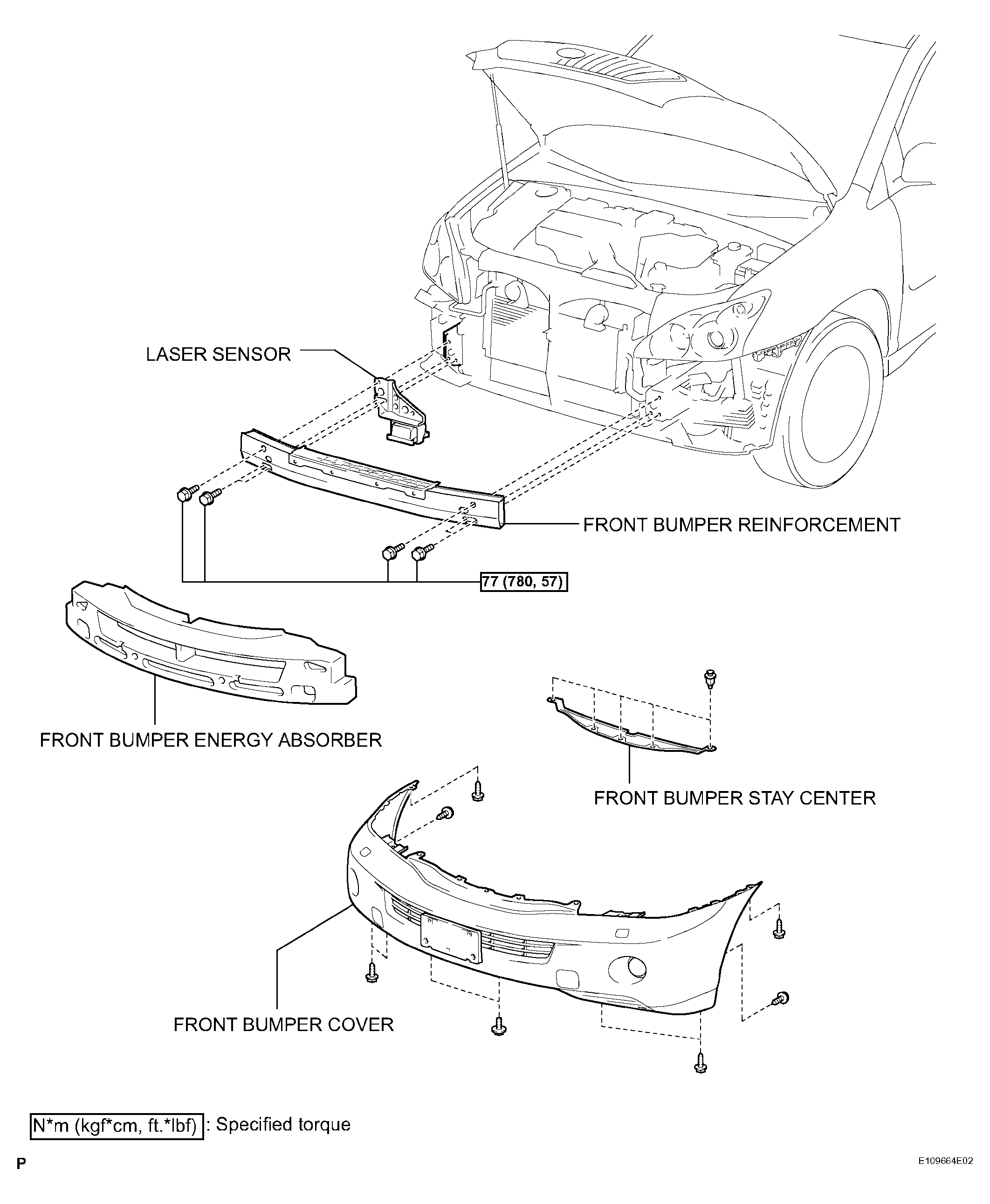

Fig 1: Laser Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
