Audio / Visual: Multi-Display: Removal
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See REMOVAL )
- REMOVE CONSOLE PANEL UPPER FRONT (See REMOVAL )
- REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (See REMOVAL )
- REMOVE RADIO RECEIVER (See REMOVAL )
- REMOVE MULTI-DISPLAY

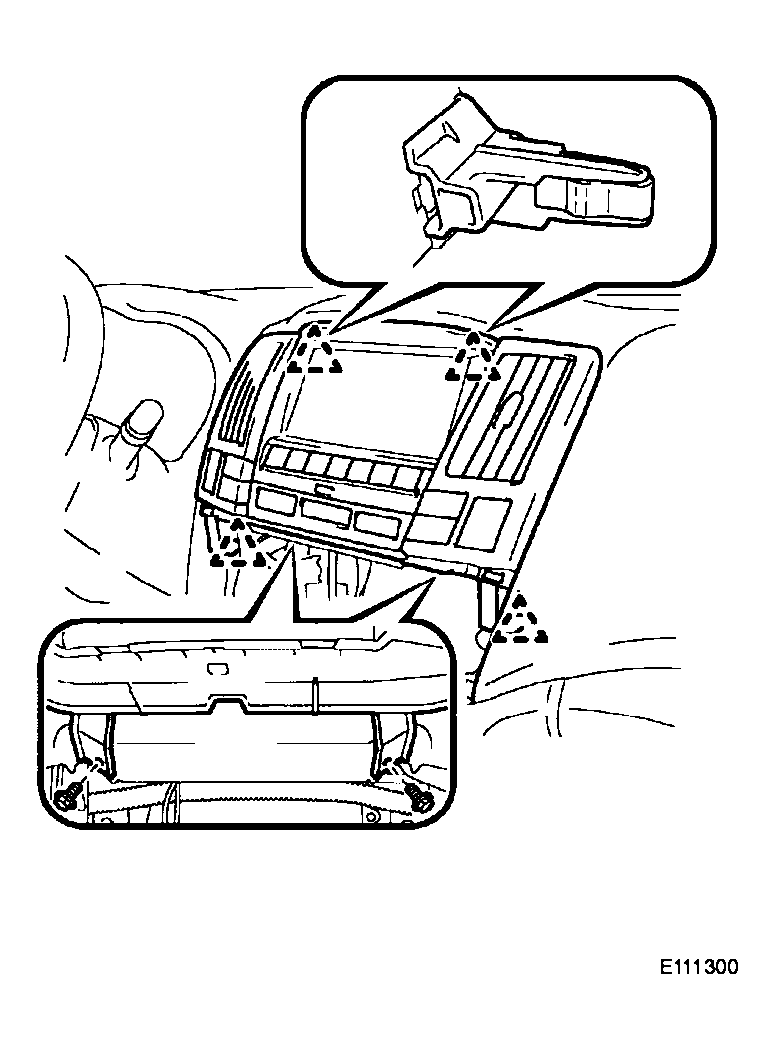

- Remove the 2 bolts and disengage the 4 clips.
- Disconnect the connectors.
- Remove the multi-display.
