Multi-display Controller Communication Error

  1. IDENTIFY THE COMPONENT SHOWN BY THE SUB-CODE
    1. Enter the diagnostic mode.
    2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
    3. Identify the component shown by the sub-code.
      Fig 1: Multi-Display Screen - System Check Mode And LAN Monitor
      G04093061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • The "110 (multi-display)" is the component shown by the sub-code in the example shown in the illustration.
      • The sub-code will be indicated by its physical address.
      • For the component list, refer to "DIAGNOSIS DISPLAY DETAILED DESCRIPTION " .
  2. CHECK POWER SOURCE CIRCUIT OF COMPONENT SHOWN BY SUB-CODE
    1. Inspect the power source circuit of the component shown by the sub-code.

      If the power source circuit is operating normally, proceed to the next step.

    Component Table

    COMPONENT REFERENCE TABLE

    Component Proceed to
    Multi-display Controller (16C, 16D) MULTI-DISPLAY CONTROLLER POWER SOURCE CIRCUIT
  3. INSPECT MULTI-DISPLAY CONTROLLER
    1. Disconnect the multi-display connectors.
    2. Measure the resistance according to the value(s) in the table below.

    Resistance

    RESISTANCE SPECIFIED CONDITION

    Tester Connection Condition Specified Condition
    TX+ (R25-1) - TX- (R25-6) Always 60 to 80 Ω
    TX2+ (R17-5) - TX2- (R17-4) Always 60 to 80 Ω
    TX3+ (R15-17) TX3- (R15-18) Always 60 to 80 Ω
    TX4+ (R16-14) TX4- (R16-13) Always 60 to 80 Ω

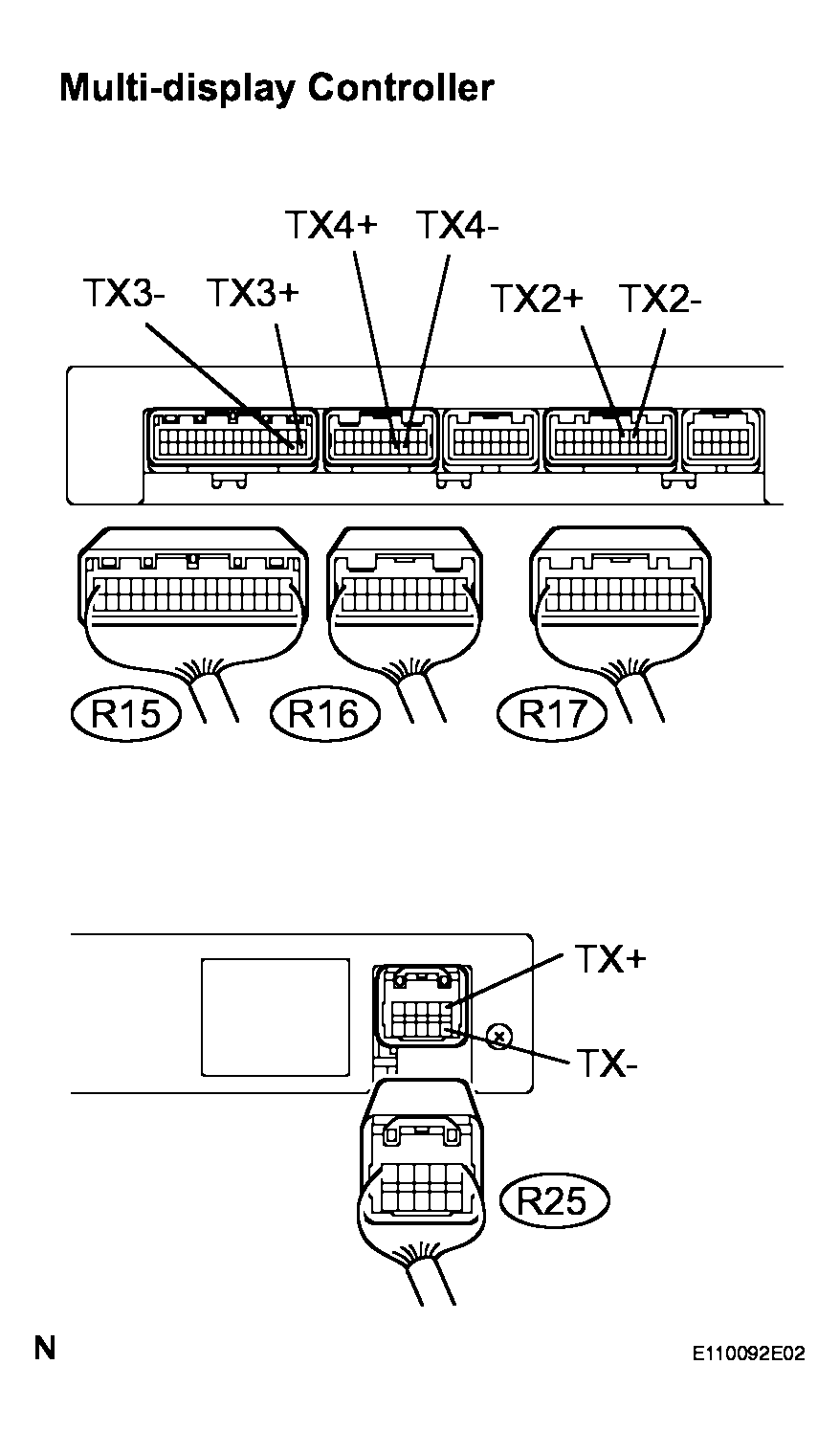

    Fig 2: Disconnecting Multi-Display Connectors
    G04092728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE MULTI-DISPLAY CONTROLLER

    OK: Go to next step.

  4. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY CONTROLLER - COMPONENT SHOWN BY SUB-CODE)

    HINT:

    • Start the check from the circuit that is near the component shown by the sub-code first.
    • For details of the connectors, refer to the "TERMINALS OF ECU " .
    1. Referring to the AVC-LAN wiring diagram below, check the AVC-LAN circuit between the multi-display controller and the component shown by the sub-code.

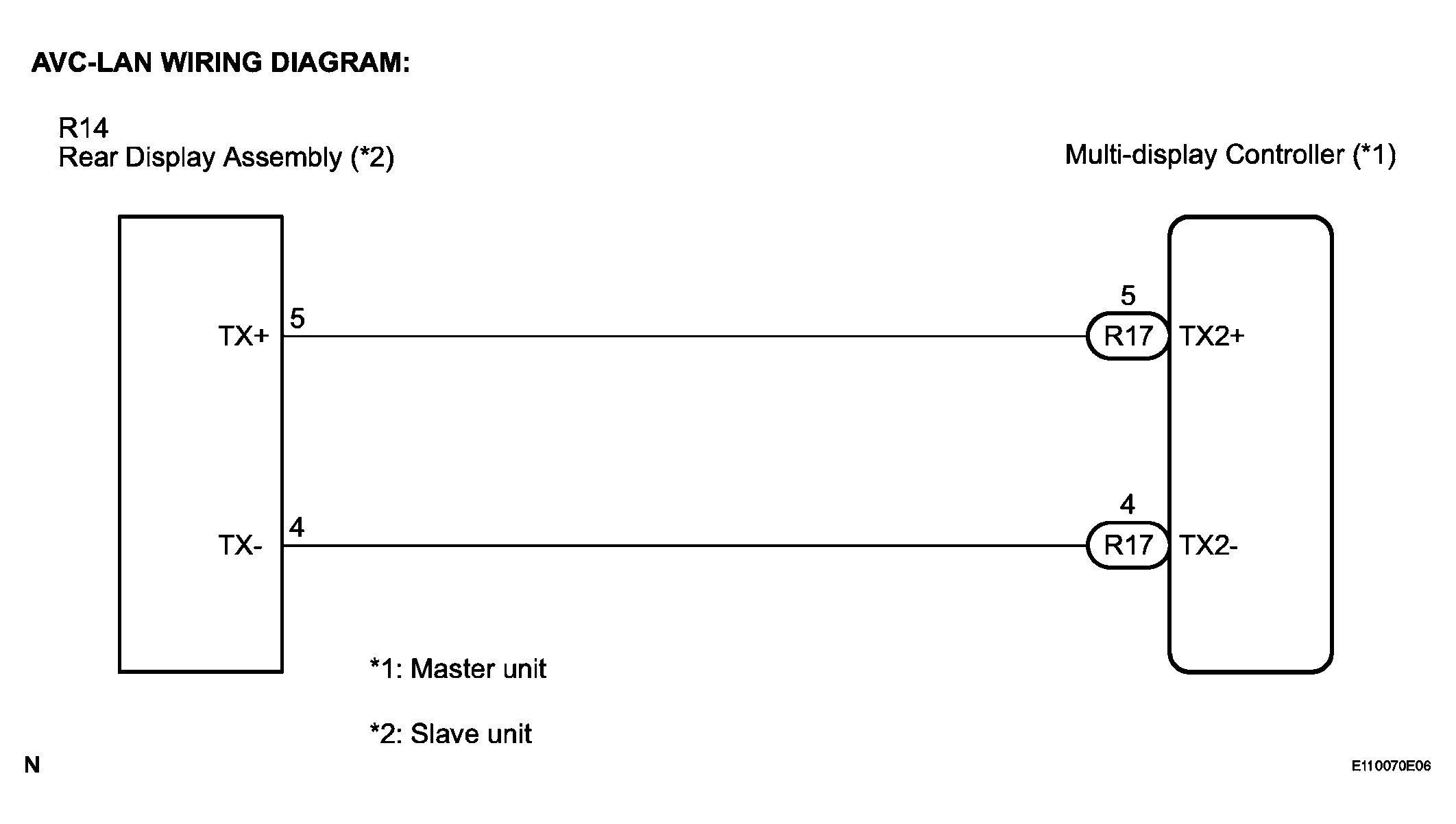

      Fig 3: AVC-LAN Wiring Diagram
      G04092729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Check for open or short in the AVC-LAN circuit between the multi-display controller and the component shown by the sub-code.

        OK: There is no open or short circuit.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step.

  5. REPLACE COMPONENT SHOWN BY SUB-CODE
    1. Replace the component shown by the sub-code with a normal one and check if the same problem occurs again.

      OK: Same problem does not occur.

    NG: REPLACE MULTI-DISPLAY CONTROLLER

    OK: END
