Inspection Procedure

INSPECT RADIO RECEIVER

Disconnect the radio receiver connectors.
Measure the resistance according to the value(s) in the table below.

Resistance

TERMINALS RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
ATX+ (R2-5) - ATX- (R2-15)	Always	60 to 80 Ω
TX+ (R3-9) - TX- (R3-10)	Always	60 to 80 Ω
TX+ (R4-9) - TX- (R4-10)	Always	60 to 80 Ω

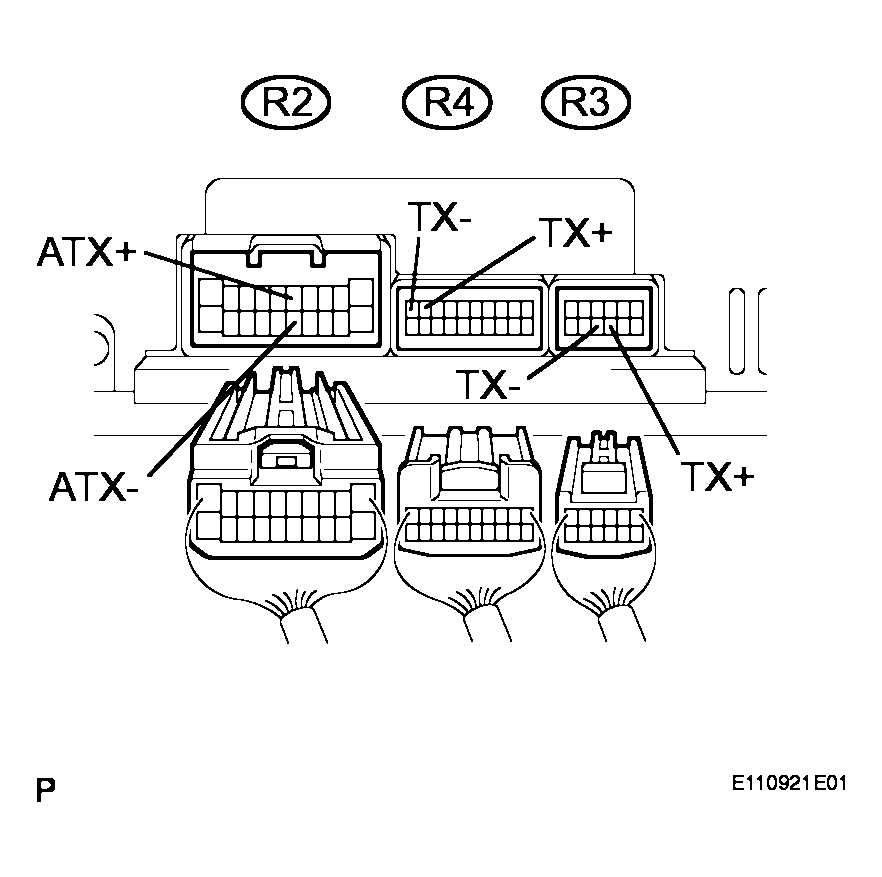

Fig 1: Identifying Radio Receiver Connector terminals

G04092986

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE RADIO RECEIVER

OK: Go to next step

CHECK HARNESS AND CONNECTOR
HINT:

For details of the connectors, refer to "TERMINALS OF ECU " ).
1. Referring to the AVC-LAN wiring diagram below, check all AVC-LAN circuits.
  1. Check for an open or short in all AVC-LAN circuits.
    OK: There is no open or short circuit.

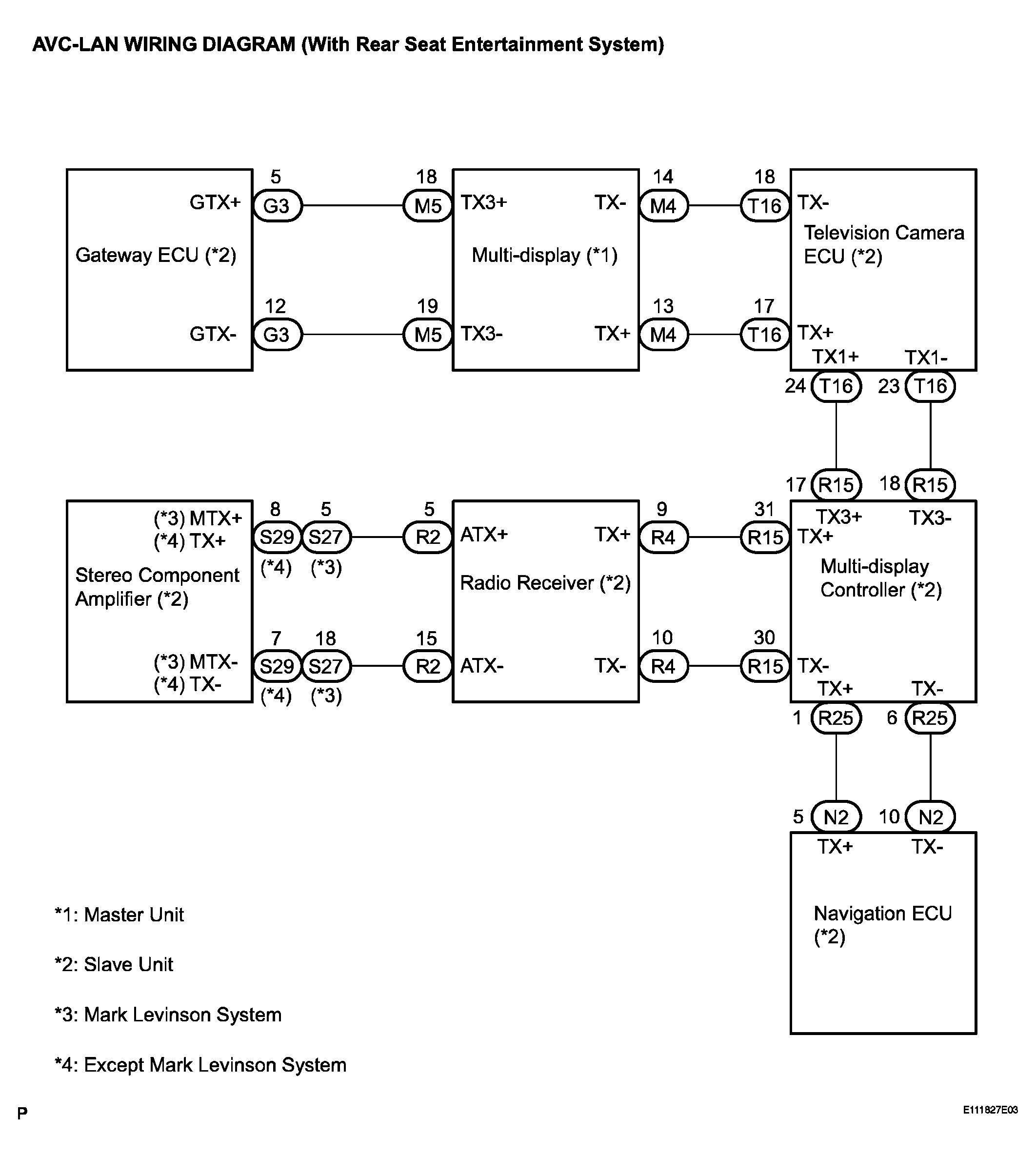

Fig 2: AVC-LAN - Wiring Diagram (With Rear Seat Entertainment System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

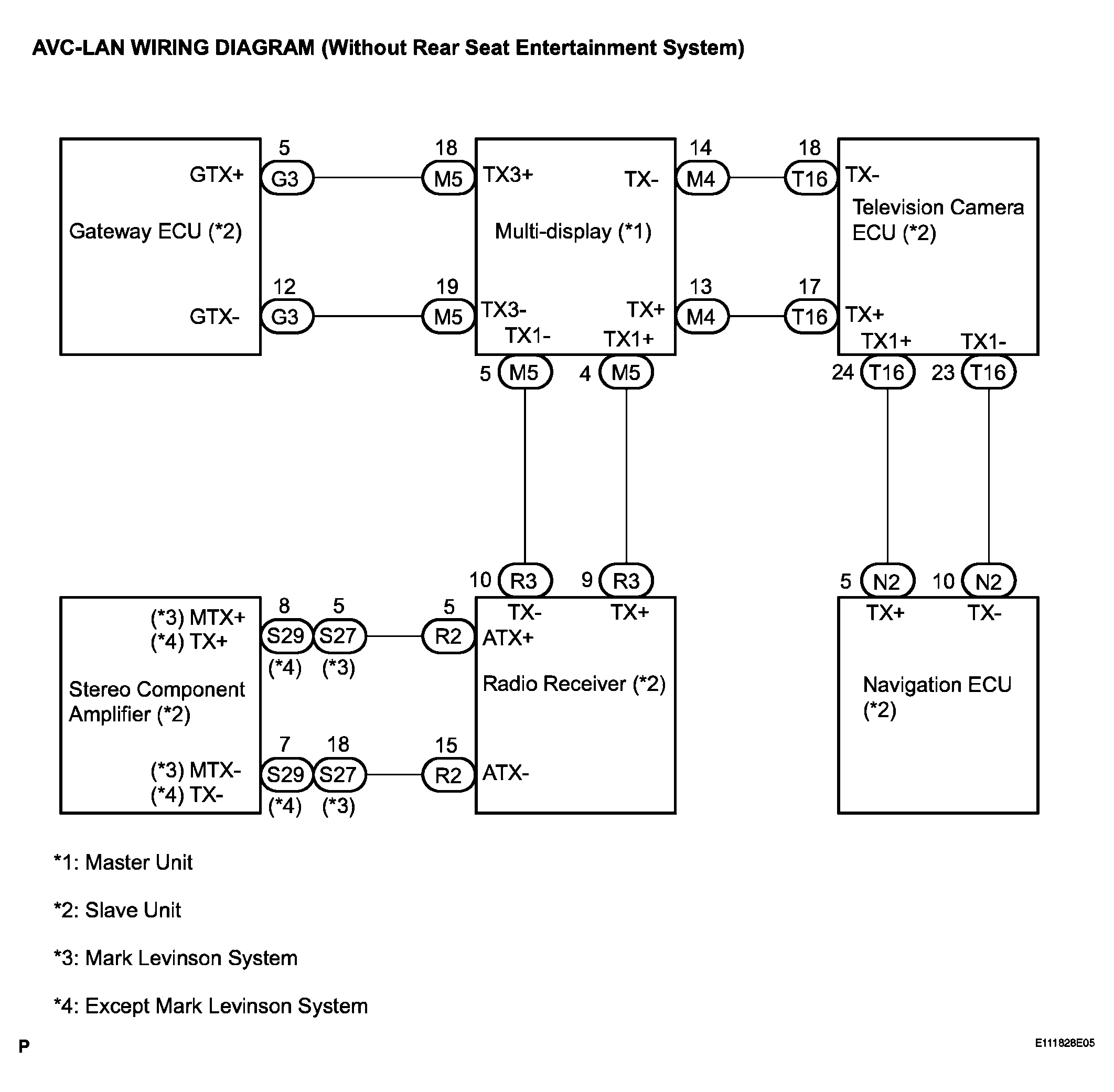

Fig 3: AVC-LAN Communication - Wiring Diagram (Without Rear Seat Entertainment System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: RETURN TO THE ORIGINAL INSPECTION FLOW BECAUSE THE CHECK RESULT IS NORMAL
