Lexus
›
2006
›
RX 330 AWD
›
Repair and Diagnosis
›
Accessories & Equipment
›
Infotainment
›
Navigation
›
Navigation System
›
Multi-display Power Source Circuit
›
Wiring Diagram
Multi-display Power Source Circuit: Wiring Diagram

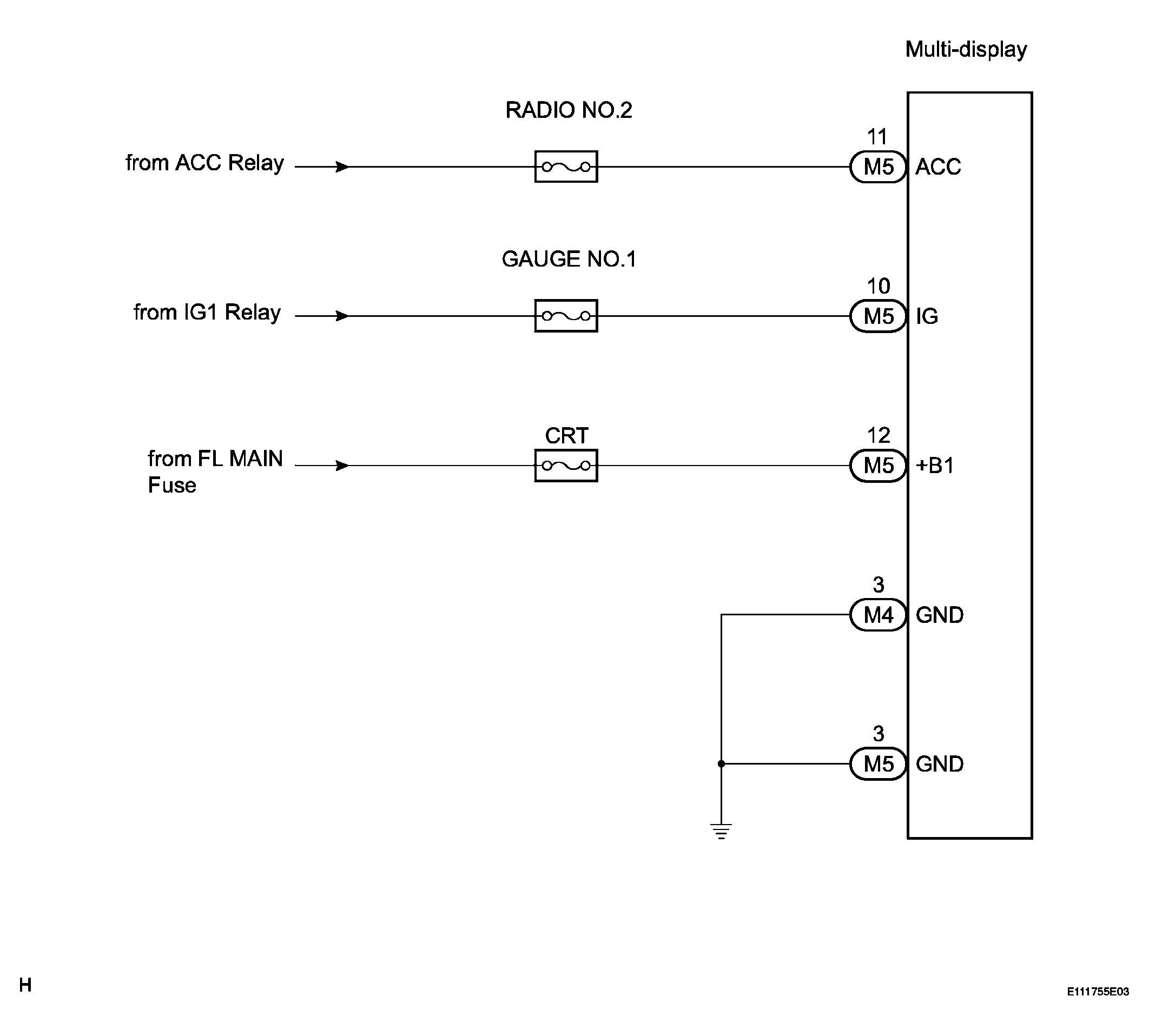

Fig 1: Multi-display Power Source Circuit - Wiring Diagram
