Inspection Procedure

1. Disconnect the navigation ECU connector N3.
2. Measure the resistance according to the value(s) in the table below.

   Resistance

   TERMINALS RESISTANCE SPECIFICATION



   Tester connection	Condition	Specified Condition
   GND1 - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

Voltage

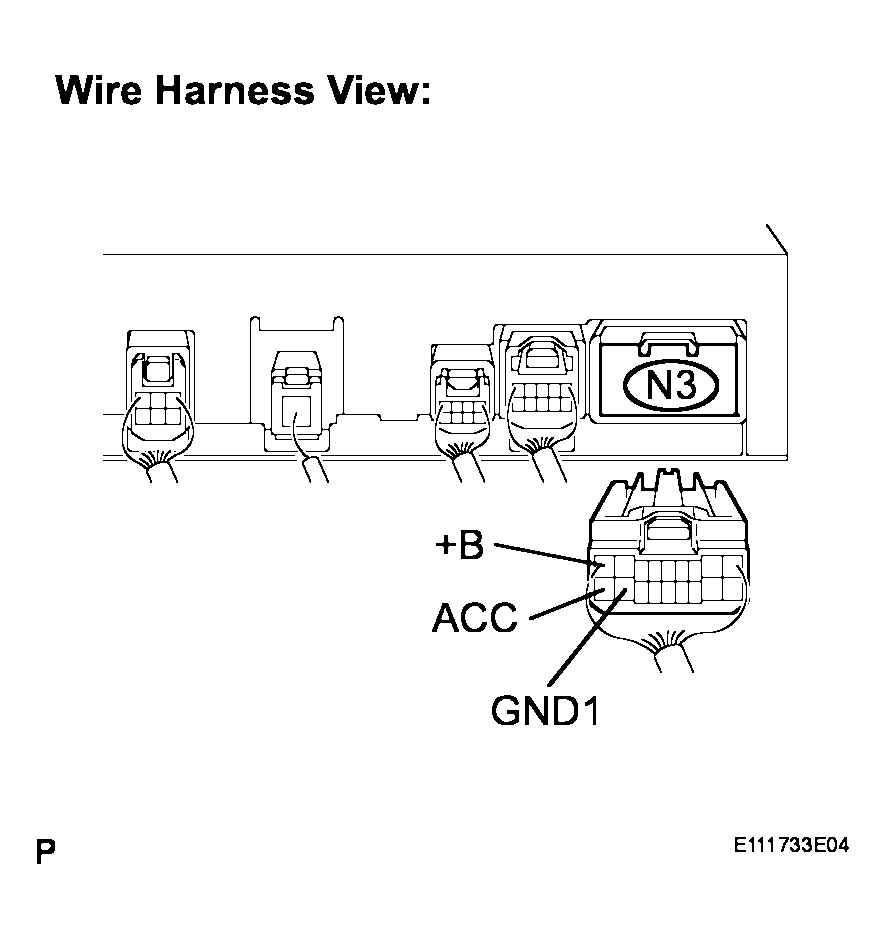

Fig 1: Disconnecting Navigation ECU Connector N3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: RETURN TO THE ORIGINAL INSPECTION FLOW BECAUSE THE CHECK RESULT IS NORMAL
