Repair and Diagnosis
›
Accessories & Equipment
›
Infotainment
›
Navigation
›
Navigation System
›
Navigation ECU Power Source Circuit
›
Wiring Diagram
Navigation ECU Power Source Circuit: Wiring Diagram

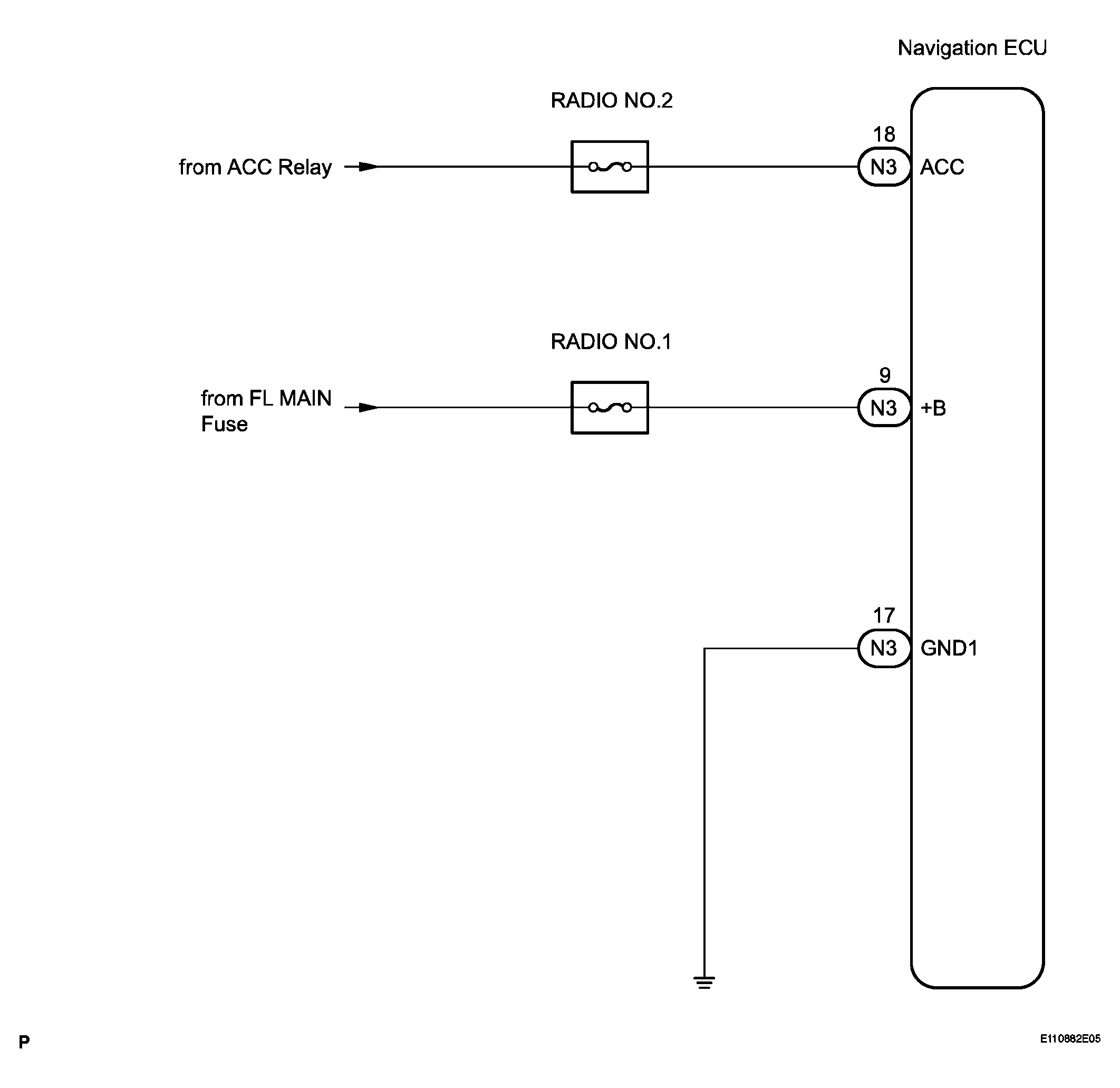

Fig 1: Navigation ECU Power Source Circuit - Wiring Diagram
