Roof Headlining: Components

Fig 1: Roof Headlining Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Roof Headlining Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

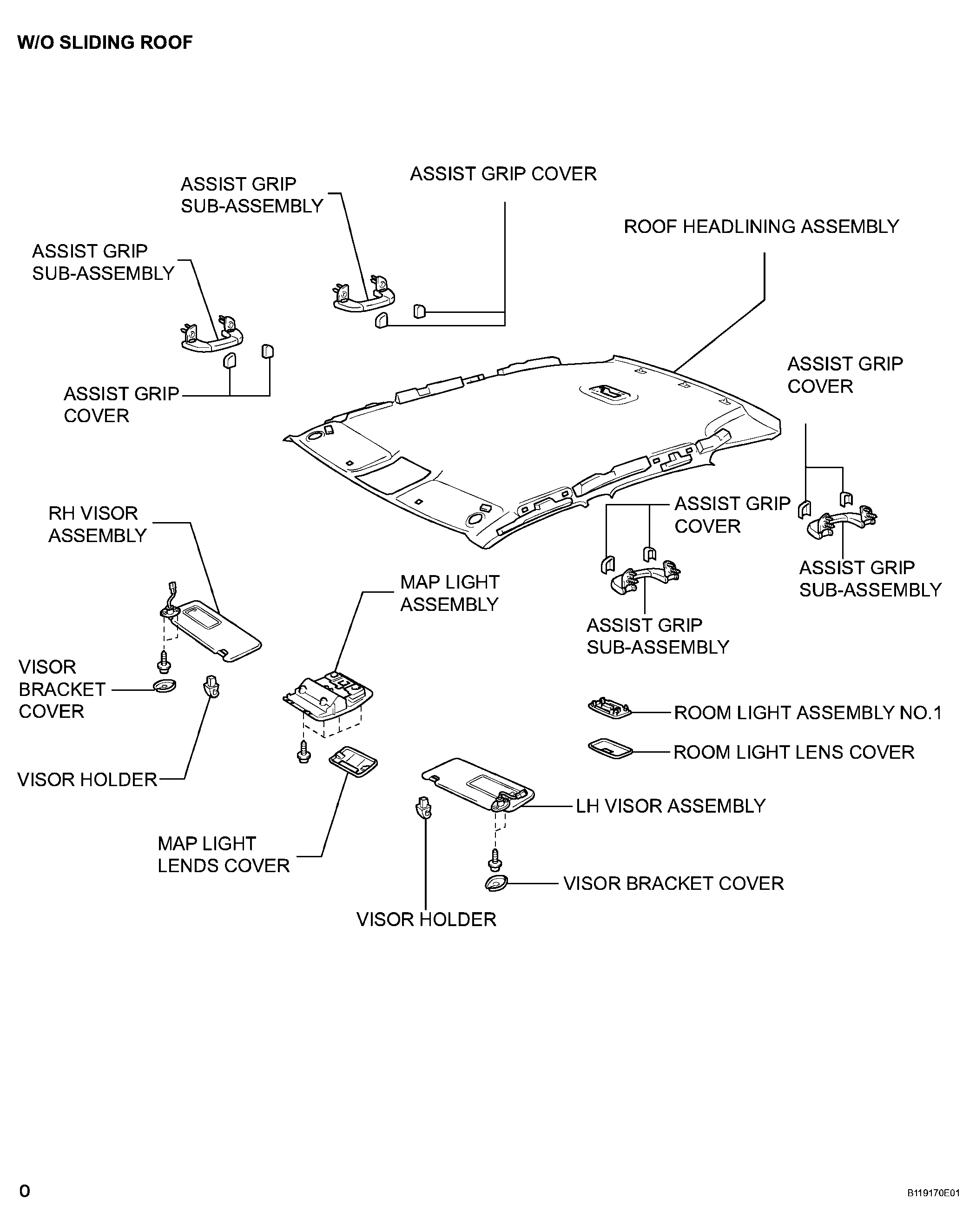

Fig 3: Identifying Roof Headlining Components (W/O Sliding Roof)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

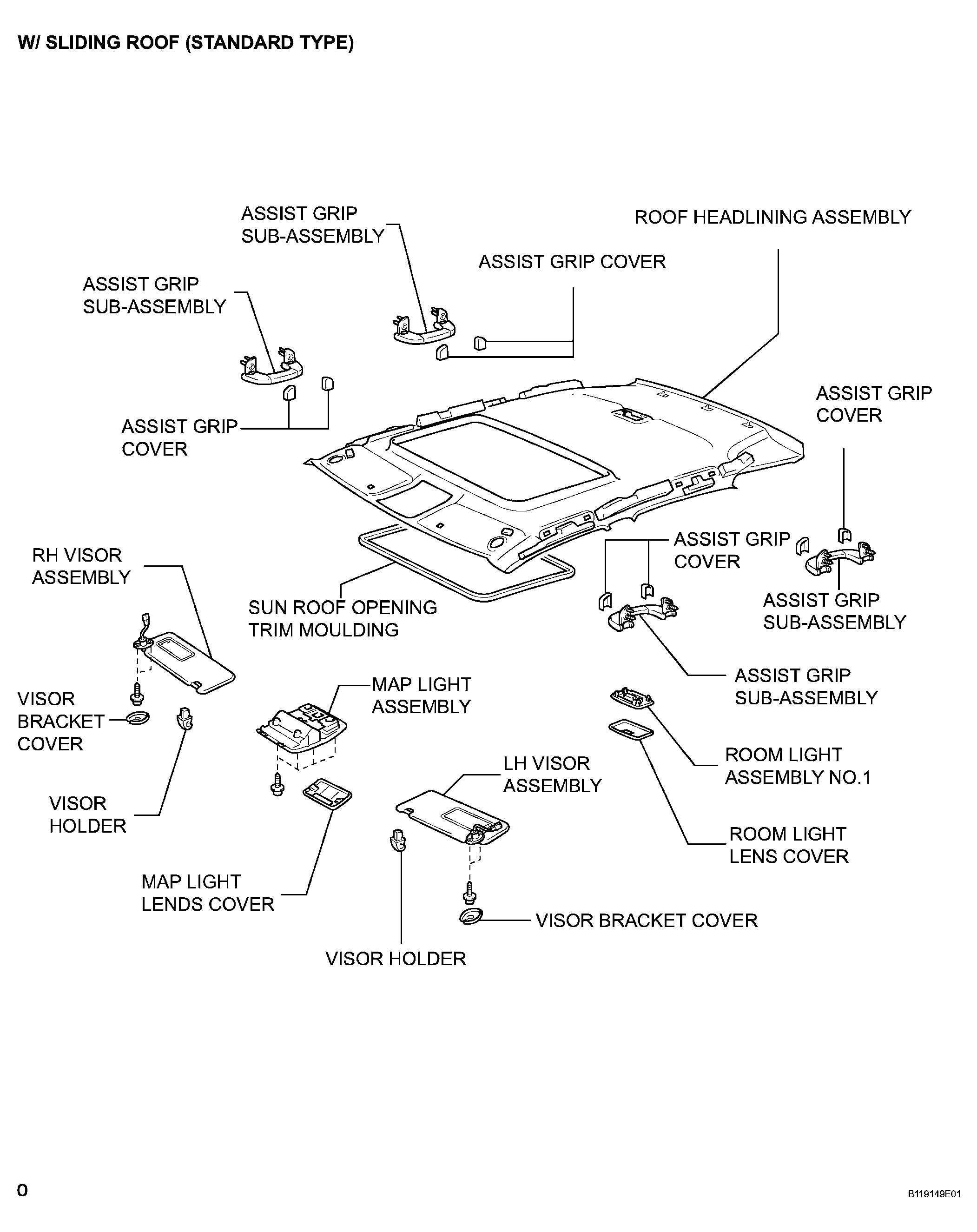

Fig 4: Identifying Roof Headlining Components (W/Sliding Roof - Standard Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

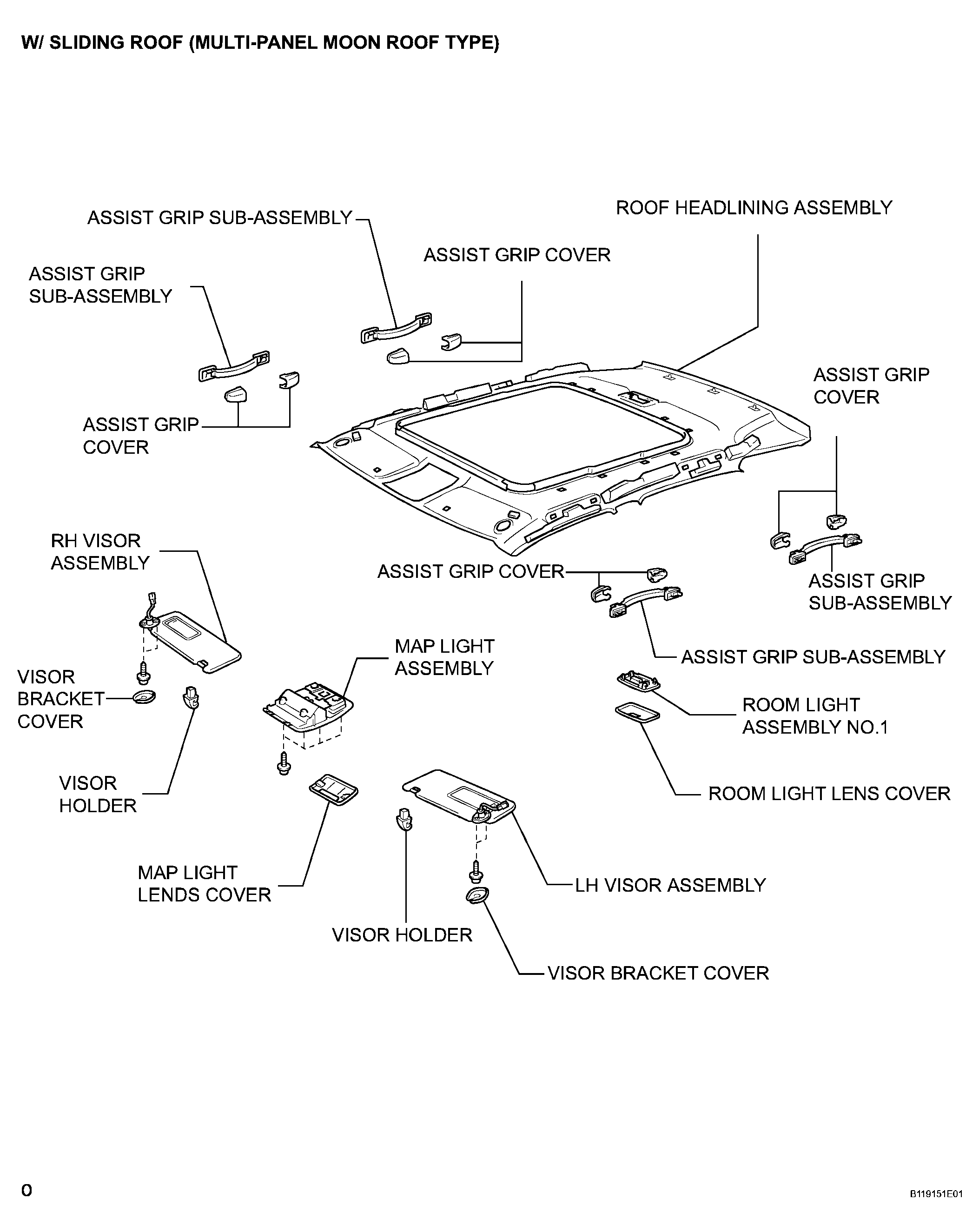

Fig 5: Identifying Roof Headlining Components (W/Sliding Roof - Multiplying Moon Roof Type)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
