Outer Rear View Mirror: Inspection

  1. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (W/ MEMORY)
    1. Inspect outer mirror motor operation.
      1. Remove the outer rear view mirror assembly.
      2. Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.

      Standard

      MEASUREMENT - SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 1 (RMVR)
      Battery negative (-) --> Terminal 10 (RM+R)      		 Turns upward (A)
      Battery positive (+) --> Terminal 10 (RM+R)
      Battery negative (-) --> Terminal 1 (RMVR)      		 Turns downward (B)
      Battery positive (+) --> Terminal 9 (RMHR)
      Battery negative (-) --> Terminal 10 (RM+R)      		 Turns left (C)
      Battery positive (+) --> Terminal 10 (RM+R)
      Battery negative (-) --> Terminal 9 (RMHR)      		 Turns right (D)

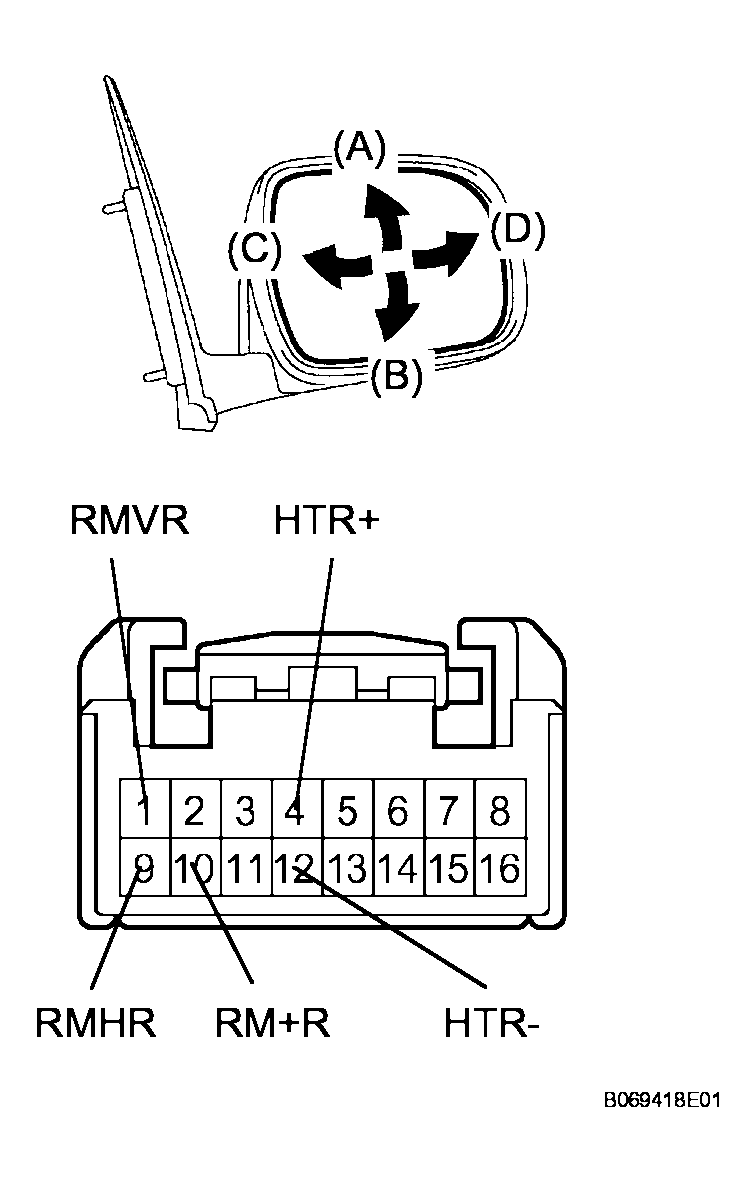

      Fig 1: Inspecting Outer Mirror Motor Operation
      G04093289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect outer mirror heater operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.

      Standard

      MEASUREMENT - SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 4 (HTR+)
      Battery negative (-) --> Terminal 12 (HTR-)      		 Mirror surface temperature becomes higher
    3. Inspect electrochromic outer mirror operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.

      Standard

      MEASUREMENT - SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 7 (EC+)
      Battery negative (-) --> Terminal 15 (EC-)      		 Mirror surface changes to dark

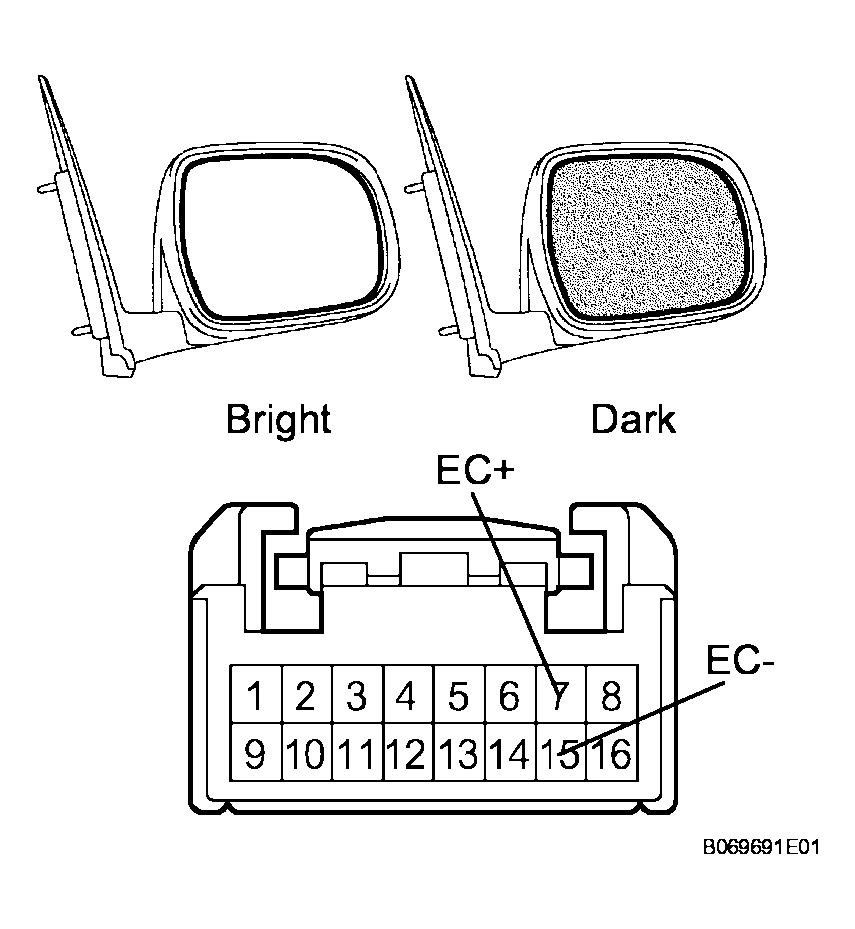

    Fig 2: Inspecting Electrochromic Outer Mirror Operation
    G04093290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (W/O MEMORY)
    1. Inspect outer mirror motor operation.
      1. Remove the outer rear view mirror assembly.
      2. Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.

      Standard

      MEASUREMENT - SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 2 (MV)
      Battery negative (-) --> Terminal 1 (M+)      		 Turns upward (A)
      Battery positive (+) --> Terminal 1 (M+)
      Battery negative (-) --> Terminal 2 (MV)      		 Turns downward (B)
      Battery positive (+) --> Terminal 6 (MH)
      Battery negative (-) --> Terminal 1 (M+)      		 Turns left (C)
      Battery positive (+) --> Terminal 1 (M+)
      Battery negative (-) --> Terminal 6 (MH)      		 Turns right (D)

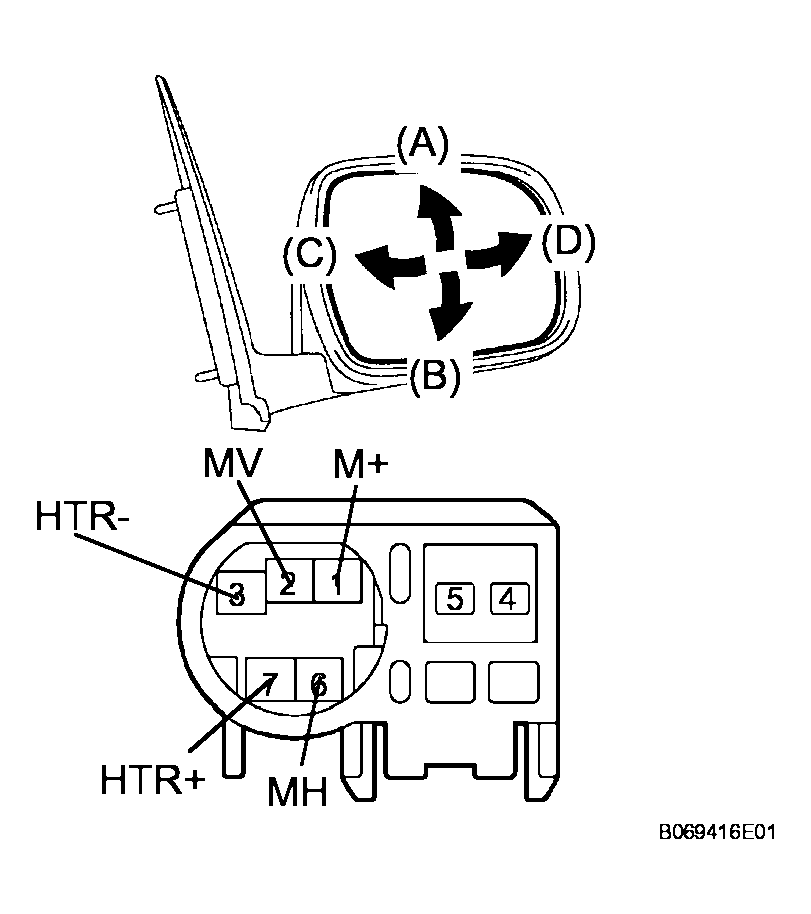

      Fig 3: Inspecting Outer Mirror Motor Operation
      G04093291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect outer mirror heater operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.

      Standard

      MEASUREMENT - SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 7 (HTR+)
      Battery negative (-) --> Terminal 3 (HTR-)      		 Mirror surface temperature becomes higher
    3. Inspect electrochromic outer mirror operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.

      Standard

      MEASUREMENT - SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 4 (EC+)
      Battery negative (-) --> Terminal 5 (EC-)      		 Mirror surface changes to dark

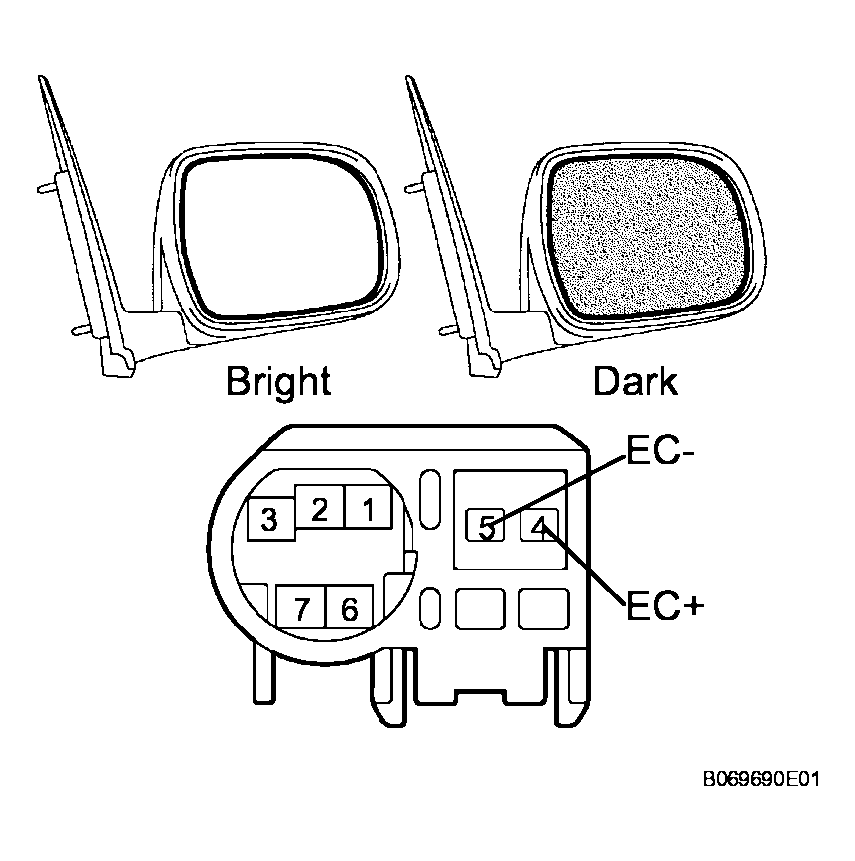

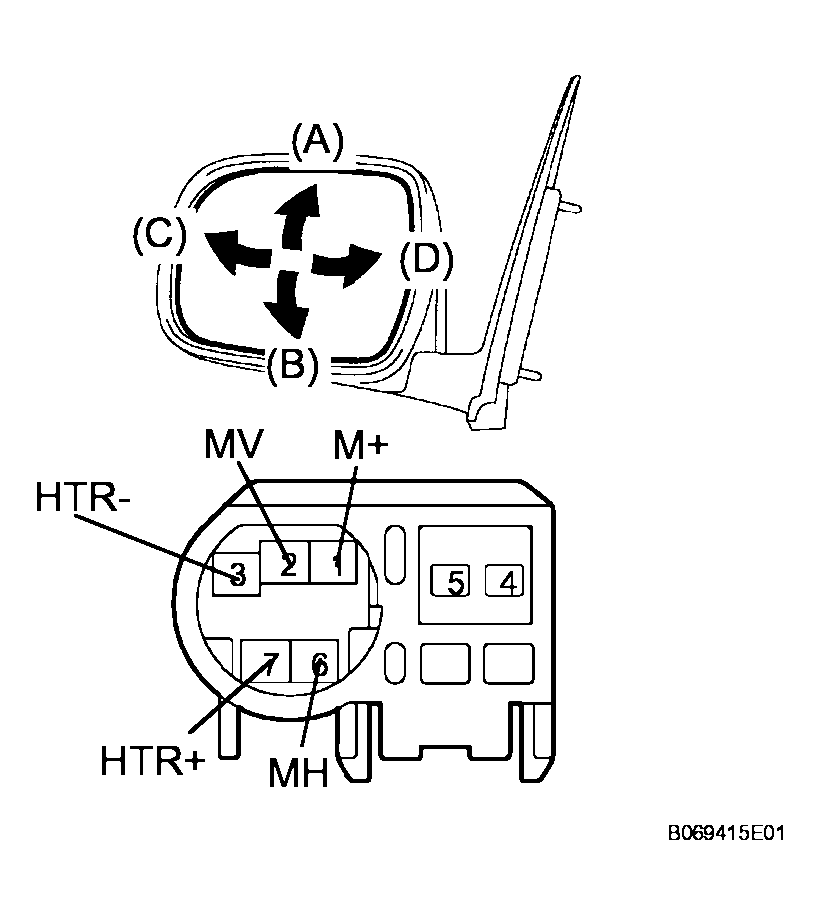

    Fig 4: Inspecting Electrochromic Outer Mirror Operation (W/O Memory)
    G04093292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (W/ MEMORY)
    1. Inspect outer mirror motor operation.
      1. Remove the outer rear view mirror assembly.
      2. Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.

      Standard

      MEASUREMENT - SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 1 (LMVR)
      Battery negative (-) --> Terminal 10 (LM+R)      		 Turns upward (A)
      Battery positive (+) --> Terminal 10 (LM+R)
      Battery negative (-) --> Terminal 1 (LMVR)      		 Turns downward (B)
      Battery positive (+) --> Terminal 9 (LMHR)
      Battery negative (-) --> Terminal 10 (LM+R)      		 Turns left (C)
      Battery positive (+) --> Terminal 10 (LM+R)
      Battery negative (-) --> Terminal 9 (LMHR)      		 Turns right (D)

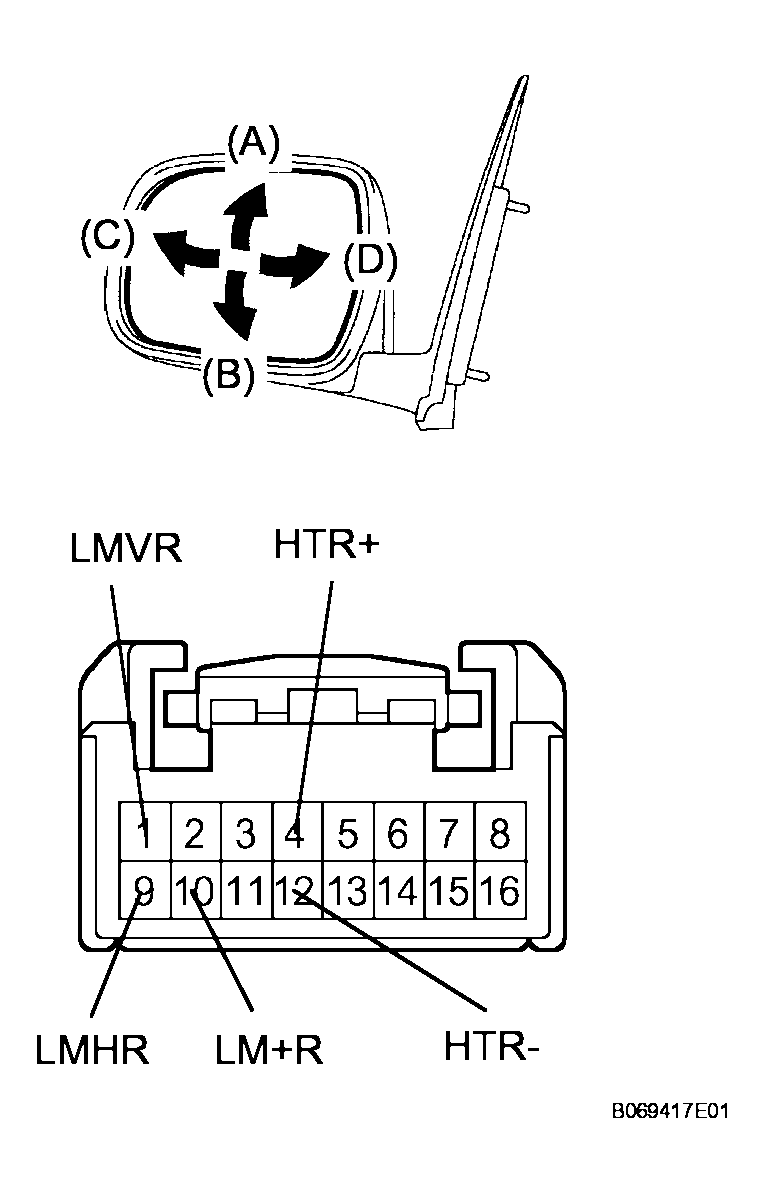

      Fig 5: Inspecting Outer Mirror Motor Operation (W/Memory)
      G04093293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect outer mirror heater operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.

      Standard

      MEASUREMENT - SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 4 (HTR+)
      Battery negative (-) --> Terminal 12 (HTR-)      		 Mirror surface temperature becomes higher
    3. Inspect electrochromic outer mirror operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.

      Standard

      MEASUREMENT - SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 7 (EC+)
      Battery negative (-) --> Terminal 15 (EC-)      		 Mirror surface changes to dark

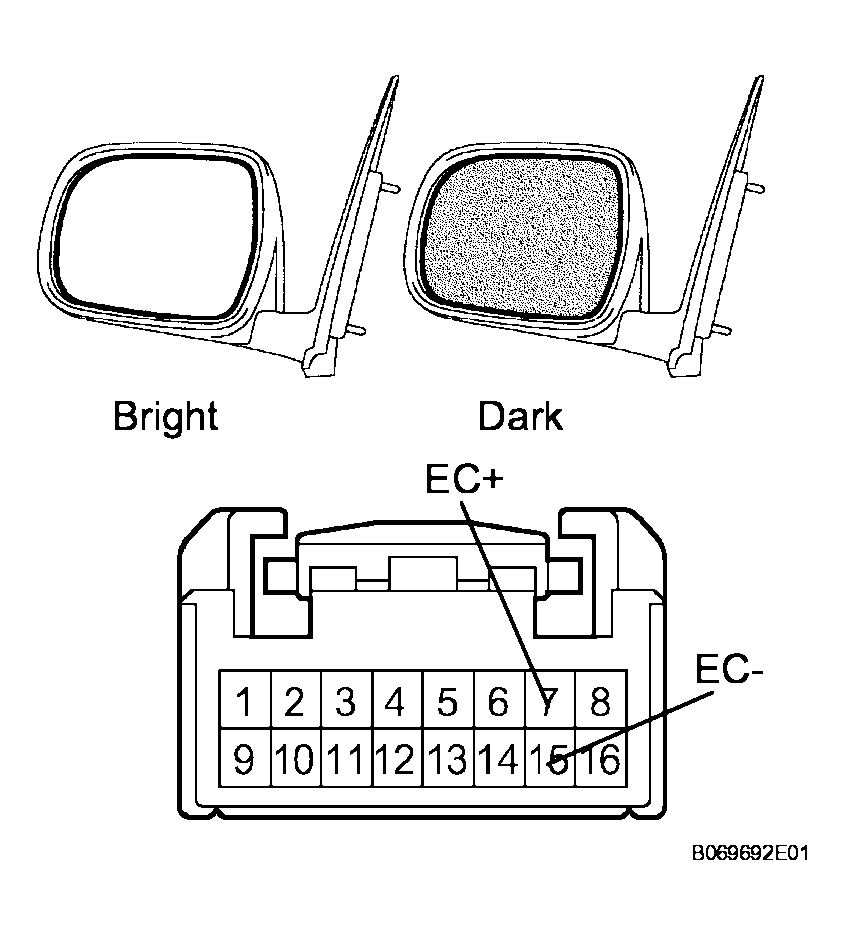

    Fig 6: Inspecting Electrochromic Outer Mirror Operation (W/ Memory)
    G04093294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (W/O MEMORY)
    1. Inspect outer mirror motor operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.

      Standard

      MEASUREMENT - SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 2 (MV)
      Battery negative (-) --> Terminal 1 (M+)      		 Turns upward (A)
      Battery positive (+) --> Terminal 1 (M+)
      Battery negative (-) --> Terminal 2 (MV)      		 Turns downward (B)
      Battery positive (+) --> Terminal 6 (MH)
      Battery negative (-) --> Terminal 1 (M+)      		 Turns left (C)
      Battery positive (+) --> Terminal 1 (M+)
      Battery negative (-) --> Terminal 6 (MH)      		 Turns right (D)
      Fig 7: Inspecting Outer Mirror Motor Operation (W/O Memory)
      G04093295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect outer mirror heater operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.

      Standard

      MEASUREMENT - SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 7 (HTR+)
      Battery negative (-) --> Terminal 3 (HTR-)      		 Mirror surface temperature becomes higher
    3. Inspect electrochromic outer mirror operation.
      1. Apply battery voltage and check operation of the mirror face, as shown in the table and illustration.

      Standard

      MEASUREMENT - SPECIFIED CONDITION

      Measurement Condition Specified Condition
      Battery positive (+) --> Terminal 4 (EC+)
      Battery negative (-) --> Terminal 5 (EC-)      		 Mirror surface changes to dark

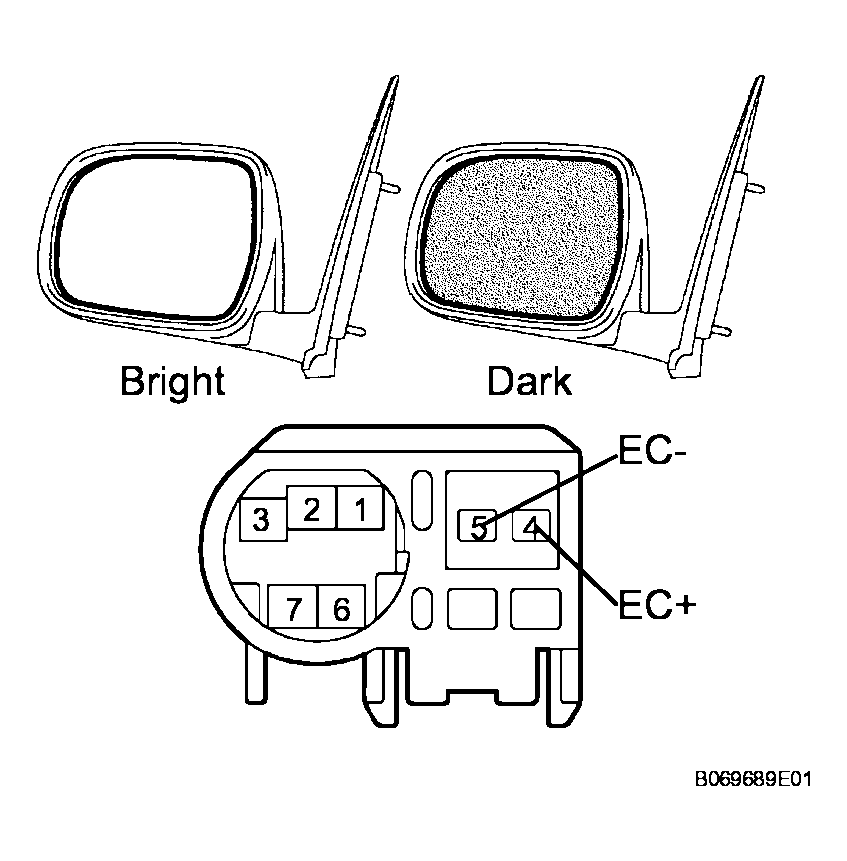

    Fig 8: Inspecting Electrochromic Outer Mirror Operation (W/O Memory)
    G04093296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
