Seat Memory Switch: Inspection

  1. INSPECT SEAT MEMORY SWITCH
    1. Measure the resistance according to the value(s) in the table below.

      Resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Switch Position Specified Condition
      1(E) - 2(MMRY) SET switch ON (pushed) Below 1 Ω
      1(E) - 2(MMRY) SET switch OFF (not pushed) 10 kΩ or higher
      1(E) - 4(1) SW1 switch ON (pushed) Below 1 Ω
      1(E) - 4(1) SW1 switch OFF (not pushed) 10 kΩ or higher
      1(E) - 3(2) SW2 switch ON (pushed) Below 1 Ω
      1(E) - 3(2) SW2 switch OFF (not pushed) 10 kΩ or higher

      If the result is not as specified, replace the switch.

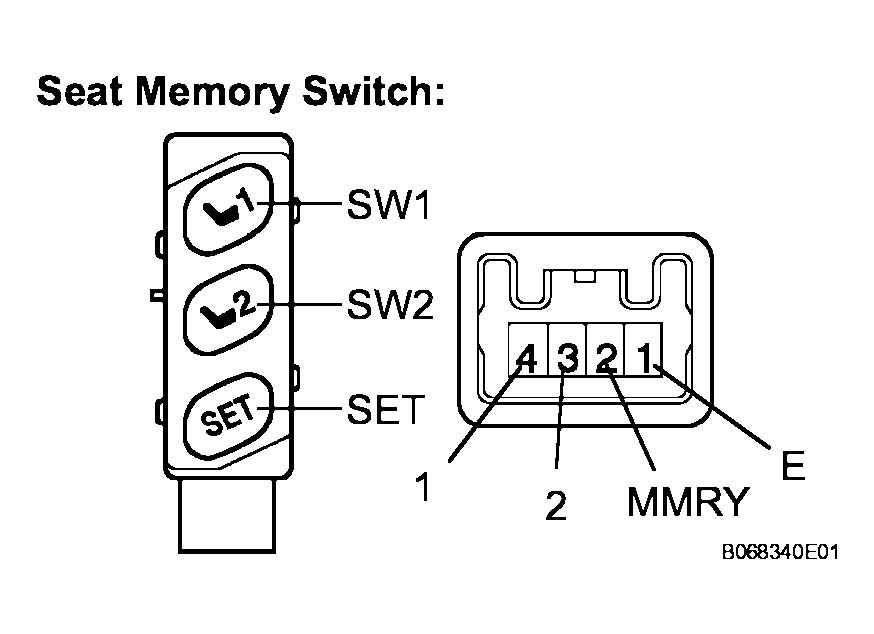

    Fig 1: Identifying Seat Memory Switch Connector
    G04093471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
