DTC C1249/49 Open in Stop Light Switch Circuit
›
Wiring Diagram
DTC C1249/49 Open in Stop Light Switch Circuit: Wiring Diagram

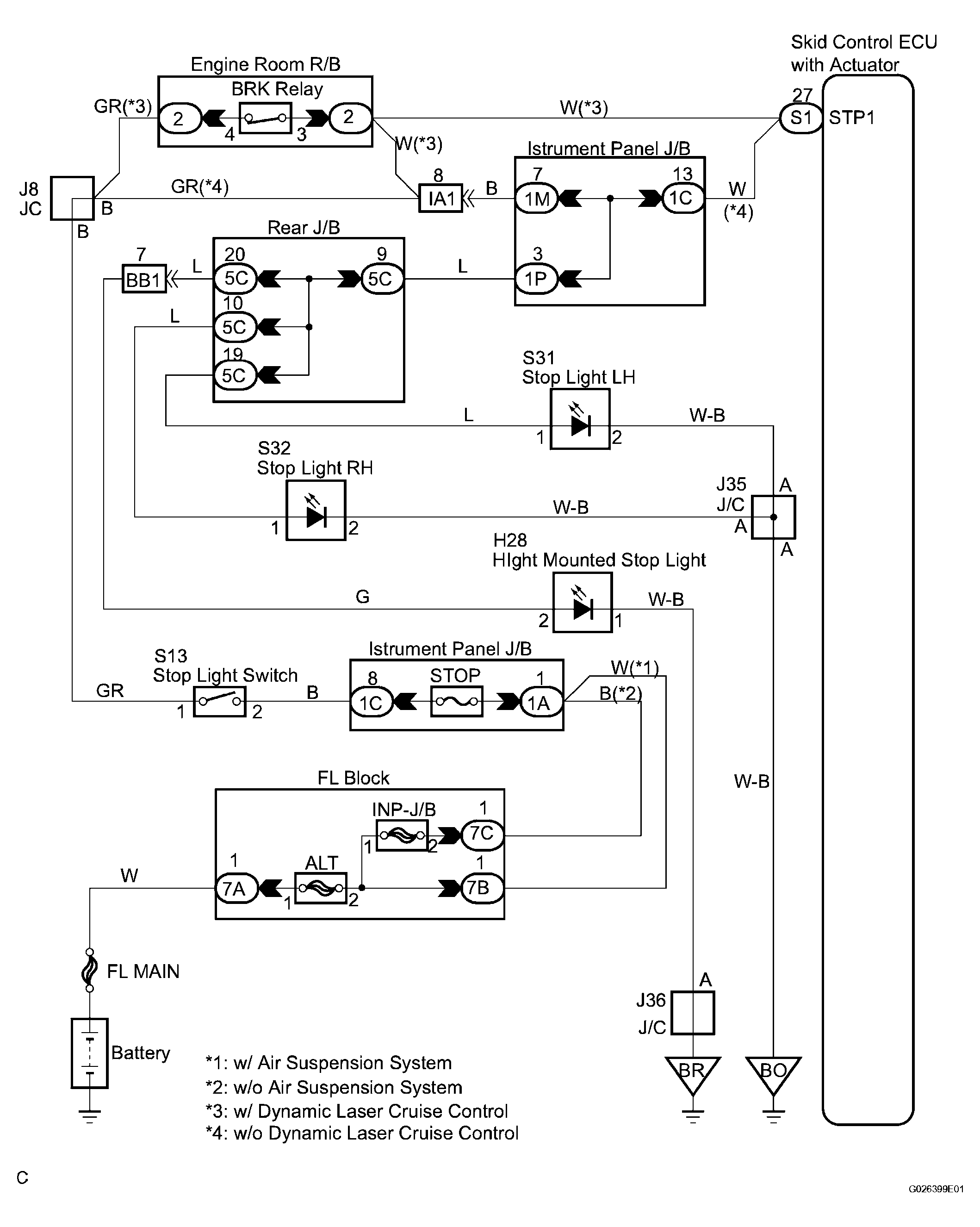

Fig 1: Identifying Stop Light Switch Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
