TRAC OFF Indicator Light, TRAC OFF Switch Circuit: Wiring Diagram

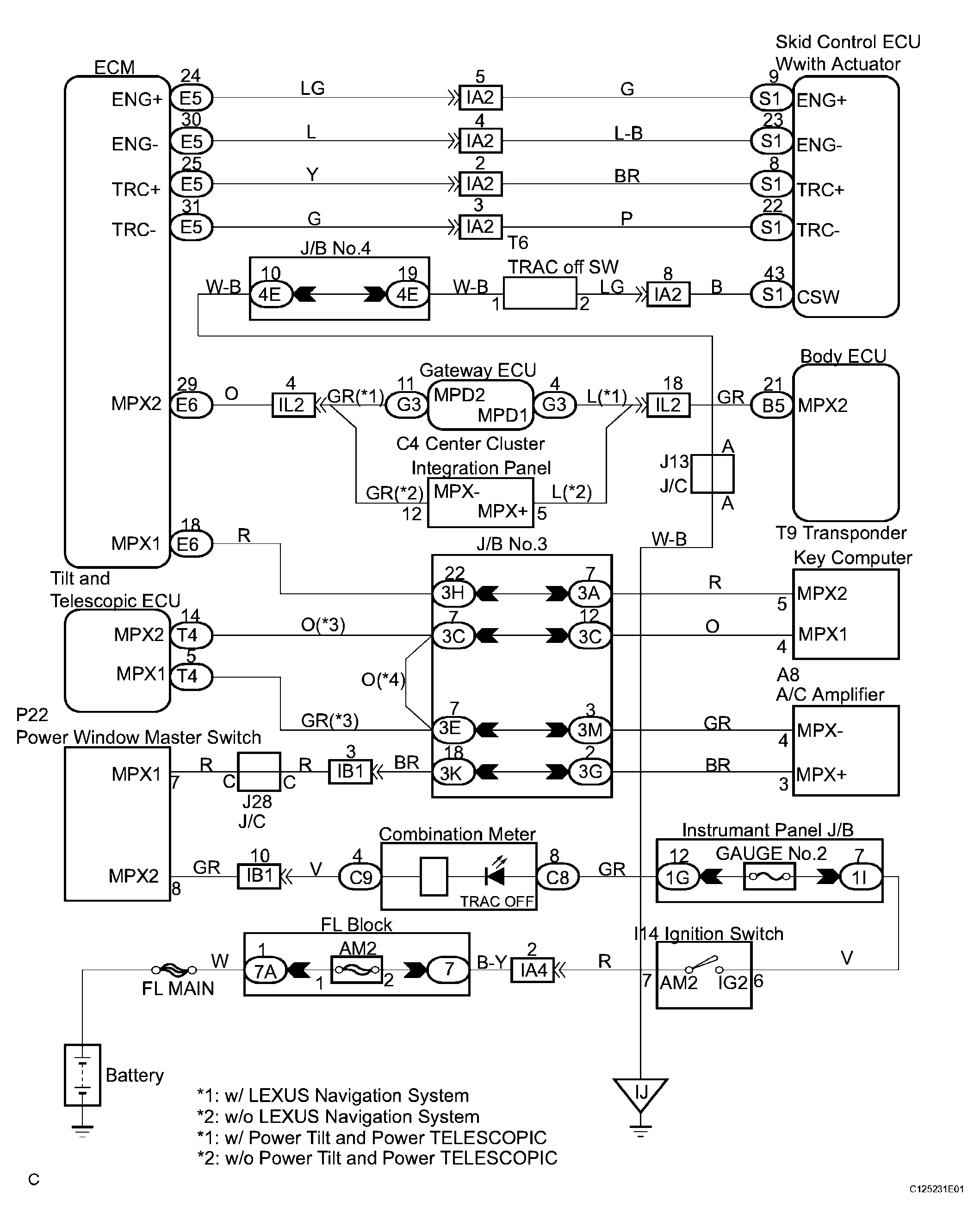

Fig 1: Identifying TRAC OFF Switch Wiring Diagram
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
