Front Axle Hub: Installation

1. INSTALL FRONT AXLE ASSEMBLY LH

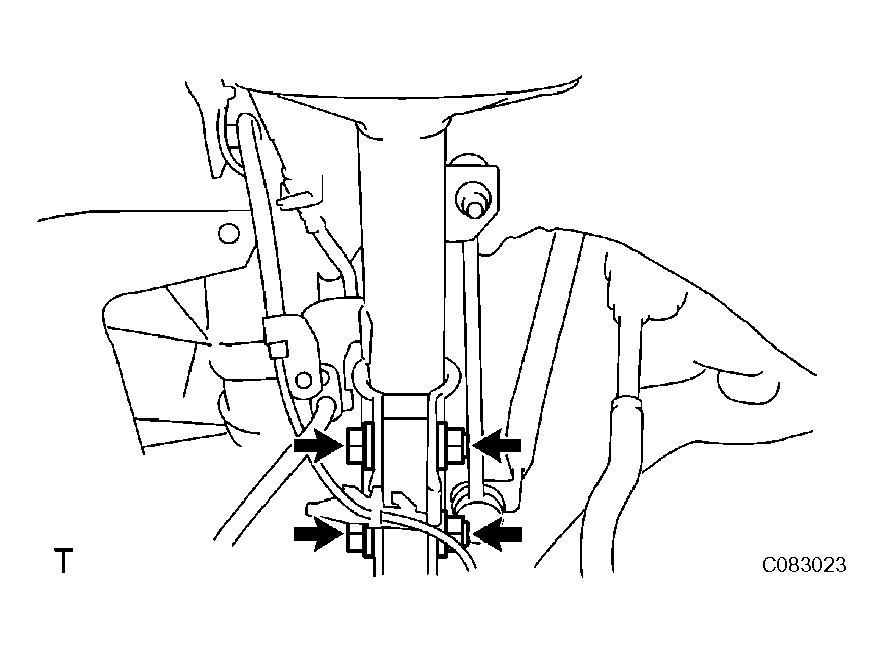

   1. Install the 2 bolts, nuts and front axle assembly LH with the 2 bolts and nuts to the shock absorber assembly front LH.
   Fig 1: Installing Front Axle Assembly LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 230 N*m (2,350 kgf*cm, 170 ft.*lbf)

   NOTE:

   • Only when reusing the bolts and nuts, apply the small amount of engine oil to the screw part of the nuts.
   • Do not excessively push out the front axle assembly LH.
   • Be careful not to damage the outboard joint boot.
   • Be careful not to damage the speed sensor rotor.
2. INSTALL FRONT SUSPENSION ARM SUBASSEMBLY LOWER NO. 1 LH (See  INSTALLATION  )
3. INSTALL TIE ROD END SUB-ASSEMBLY LH (See  INSTALLATION  )
4. INSTALL FRONT DISC
5. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH

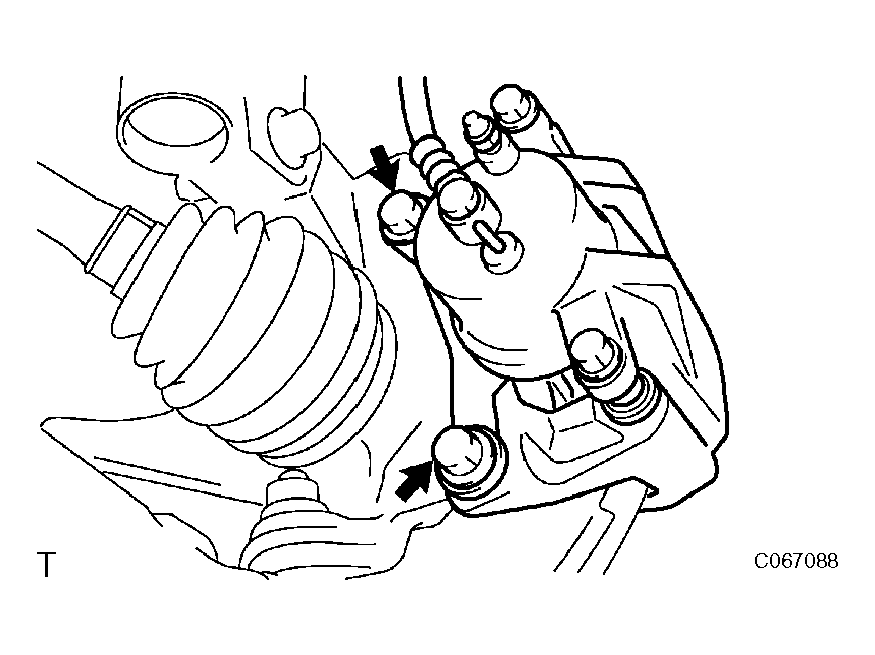

   1. Install the front disc brake caliper assembly LH with the 2 bolts to the steering knuckle LH.

   Torque: 104 N*m (1,060 kgf*cm, 77 ft.*lbf)

6. INSTALL FRONT AXLE HUB LH NUT
   1. Using a socket wrench (30mm), install a new axle hub LH nut.
   Fig 2: Installing A New Axle Hub LH Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 294 N*m (3,000 kgf*cm, 217 ft.*lbf)

7. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY LH
   1. Remove the 2 bolts and separate the front disc brake caliper assembly LH from the steering knuckle LH.
   NOTE: Use a string or other device to keep the brake caliper from hanging down.
8. REMOVE FRONT DISC
9. INSPECT BEARING BACKLASH (See  ON-VEHICLE INSPECTION   )
10. INSPECT AXLE HUB DEVIATION (See  ON-VEHICLE INSPECTION   )
11. INSTALL FRONT DISC
12. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH
    1. Install the front disc brake caliper assembly LH with the 2 bolts to the steering knuckle LH.

    Torque: 104 N*m (1,060 kgf*cm, 77 ft.*lbf)

13. INSTALL SPEED SENSOR FRONT LH (See  INSTALLATION  )
14. INSTALL FRONT AXLE HUB LH NUT
    1. Using a socket wrench (30 mm), install a new axle hub LH nut.

       Torque: 294 N*m (3,000 kgf*cm, 217 ft.*lbf)

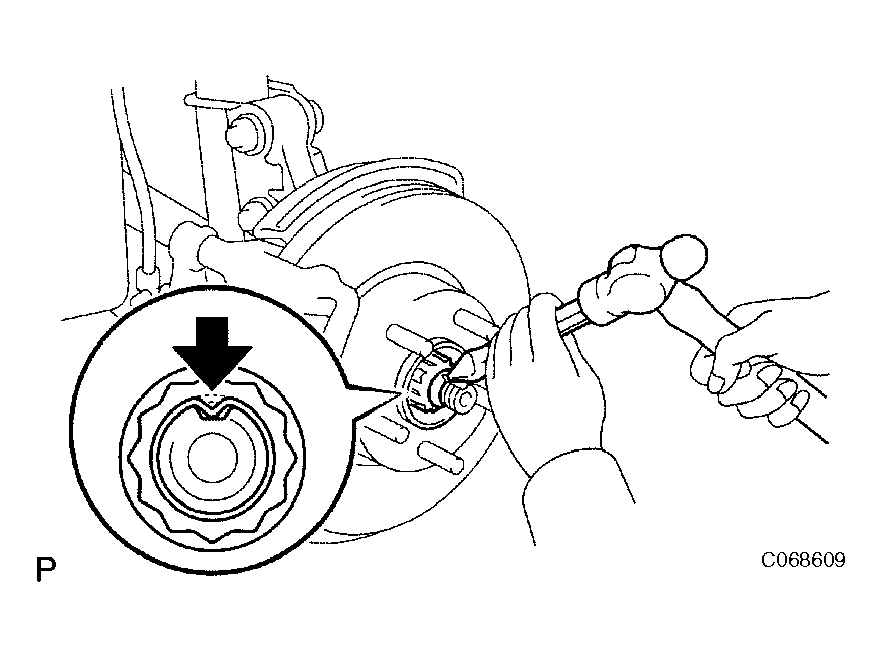

    2. Using a chisel and hammer, stake the axle hub LH nut.
15. INSPECT FRONT WHEEL ALIGNMENT
    1. Inspect front wheel alignment (See FRONT WHEEL ALIGNMENT ).
    Fig 3: Inspecting Front Wheel Alignment

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. CHECK ABS SPEED SENSOR SIGNAL
    1. Check ABS speed sensor signal (See TEST MODE PROCEDURE ).
17. INSTALL FRONT WHEEL

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
