Front Wiper and Washer without Auto Wiper System
›
Notes
Front Wiper and Washer without Auto Wiper System: Notes

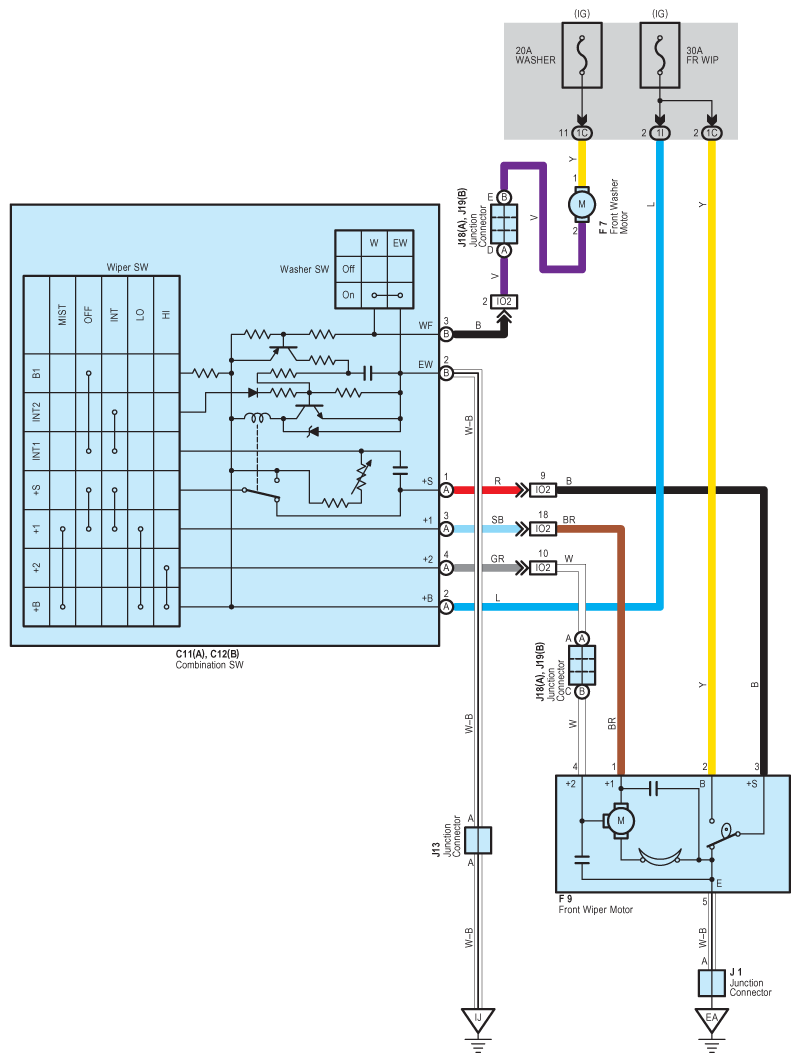

Fig 1: Front Wiper And Washer Without Auto Wiper System - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
