Headlight Cleaner: Notes

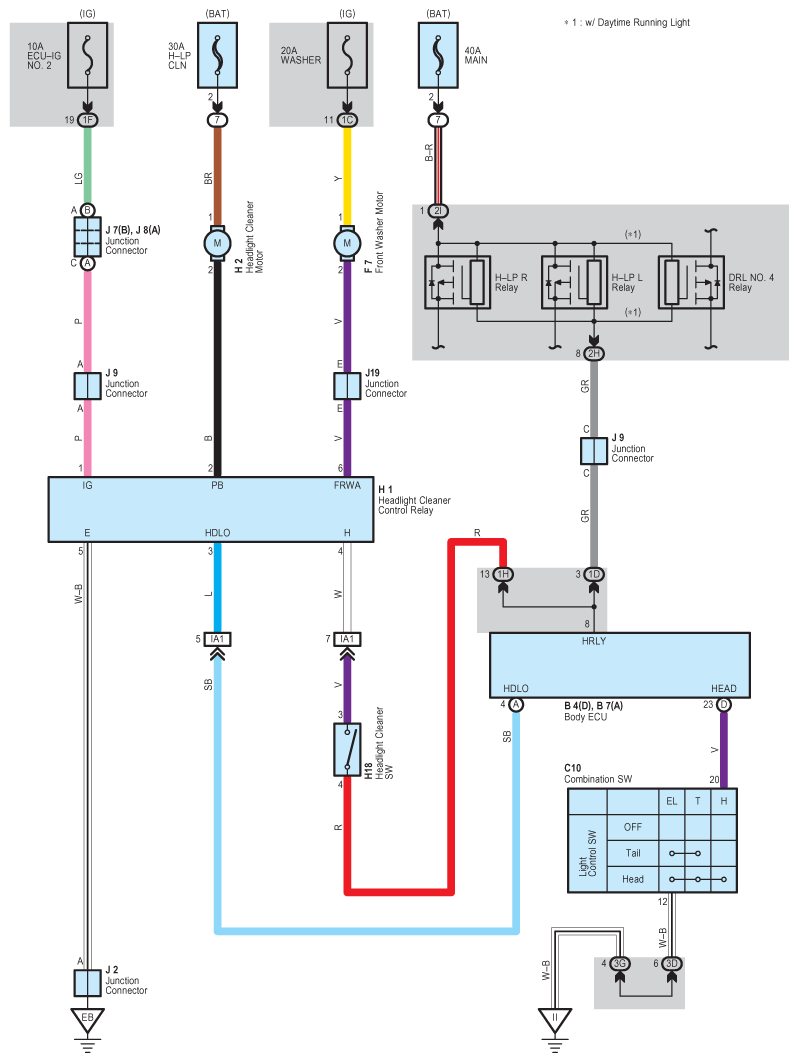

Fig 1: Headlight Cleaner - Wiring Diagram
G08929103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
