Lexus
›
2006
›
RX 330 AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Multiplex Communication System - CAN
›
Notes
Multiplex Communication System - CAN: Notes

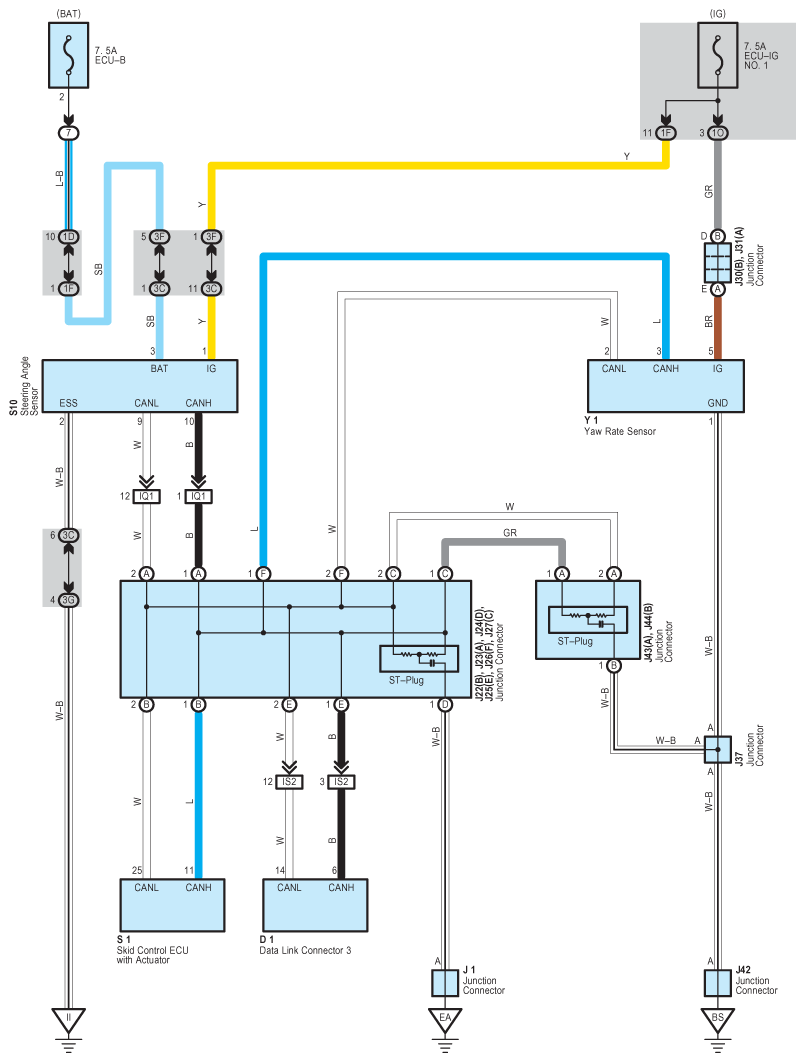

Fig 1: Multiplex Communication System - CAN - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
