Power Outlet: Notes

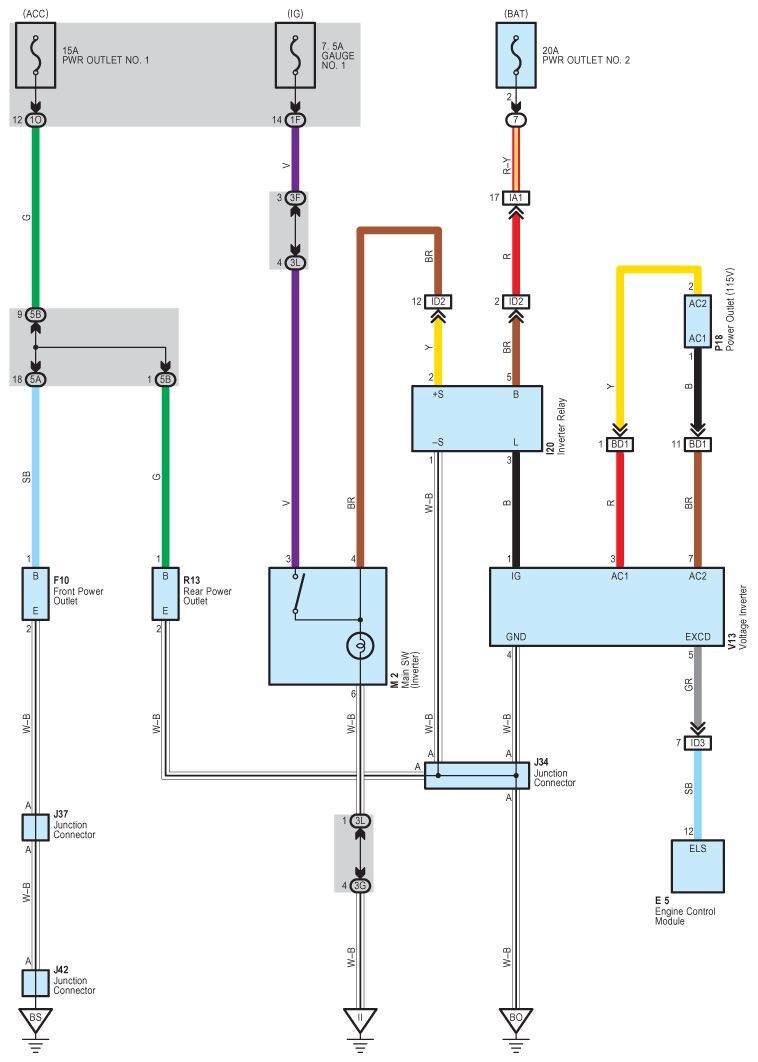

Fig 1: Power Outlet - Wiring Diagram

G08929133

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
