Power Seat for Driver's Seat without Memory
›
Notes
Power Seat for Driver's Seat without Memory: Notes

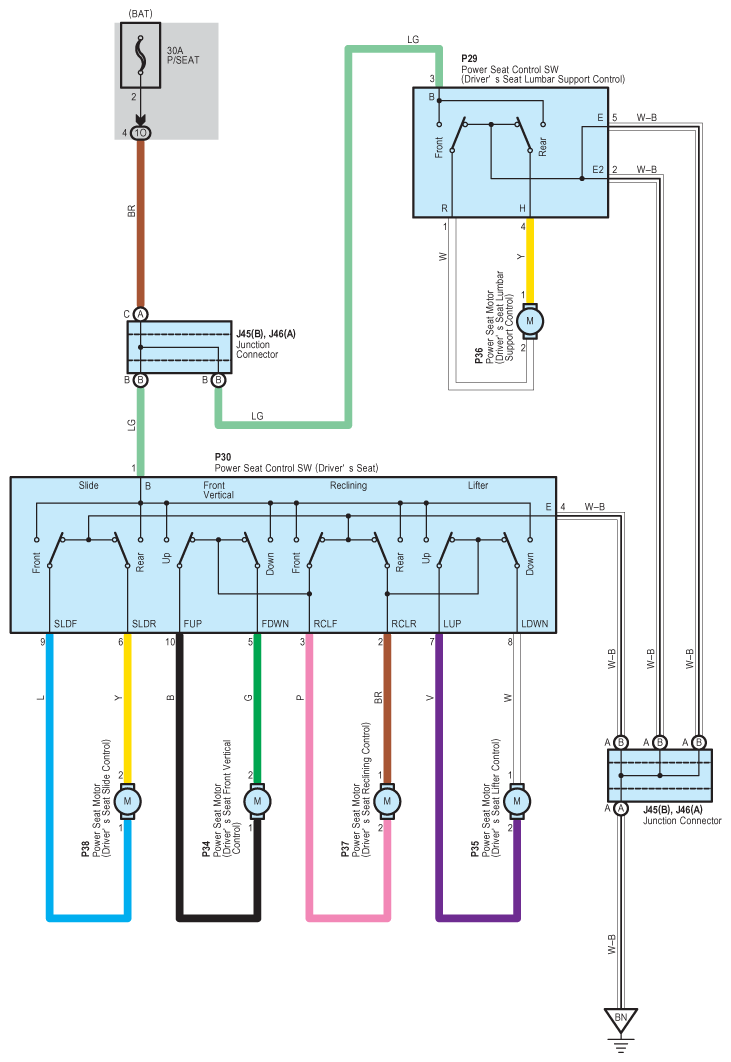

Fig 1: Power Seat For Driver's Seat Without Memory - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
