Radiator Fan: Notes

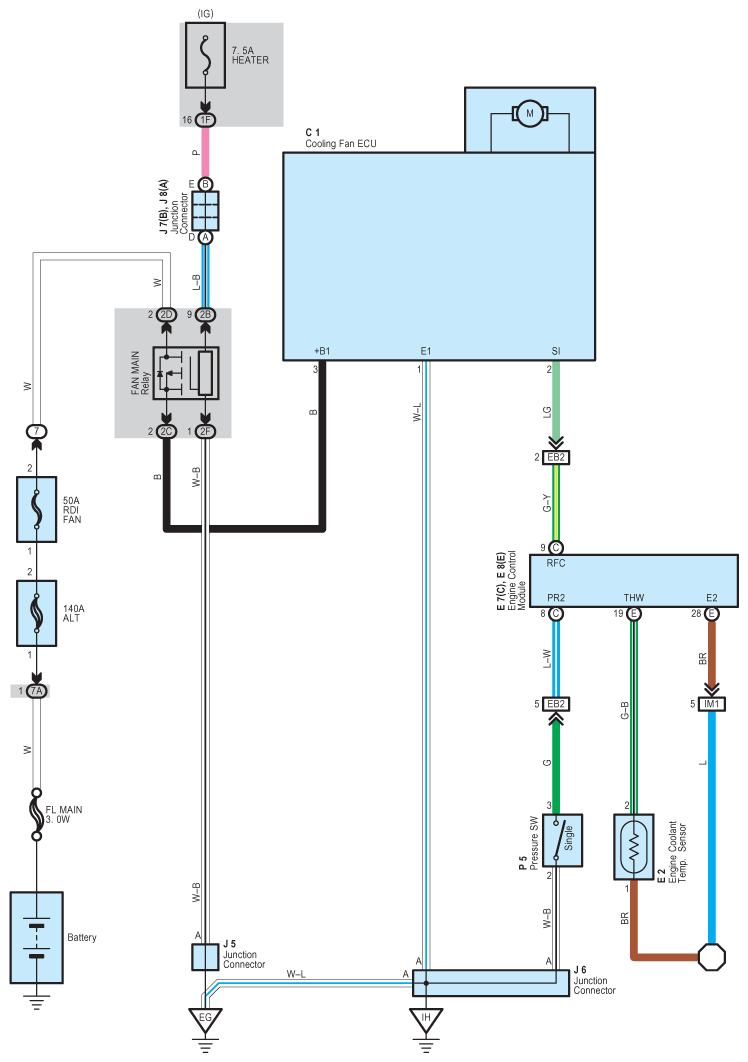

Fig 1: Radiator Fan - Wiring Diagram

G08929168

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
