Rear Wiper and Washer: Notes

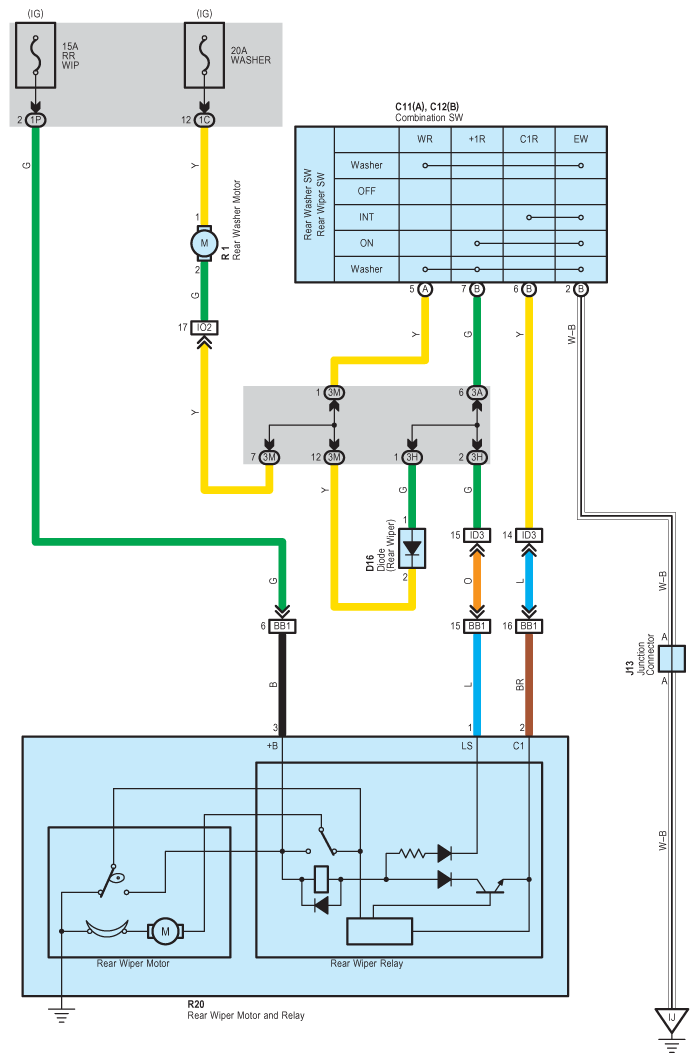

Fig 1: Rear Wiper And Washer - Wiring Diagram
G08929109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
