Shift Lock: Notes

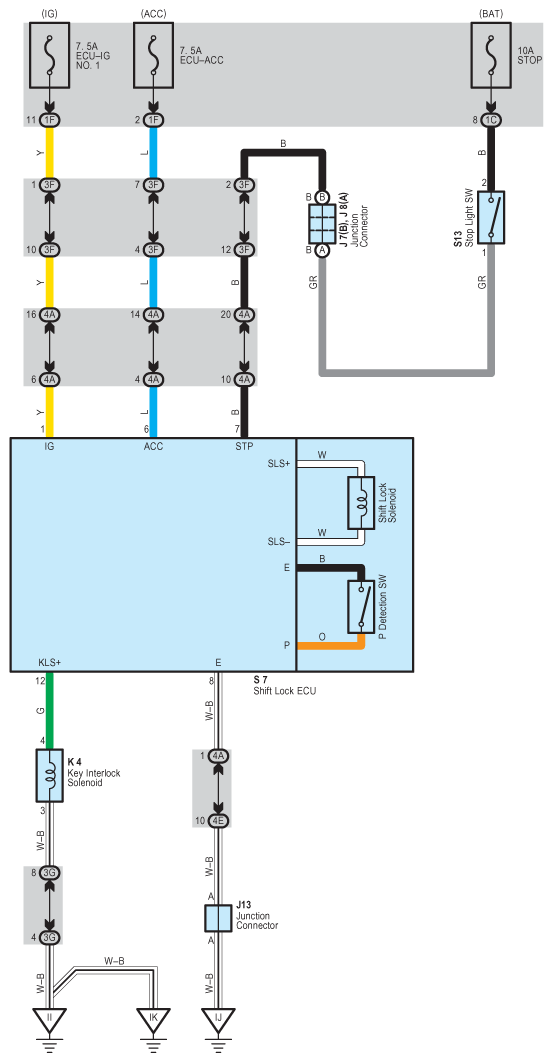

Fig 1: Shift Lock - Wiring Diagram

G08929055

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
