Charging (3MZ-FE): Generator: Components

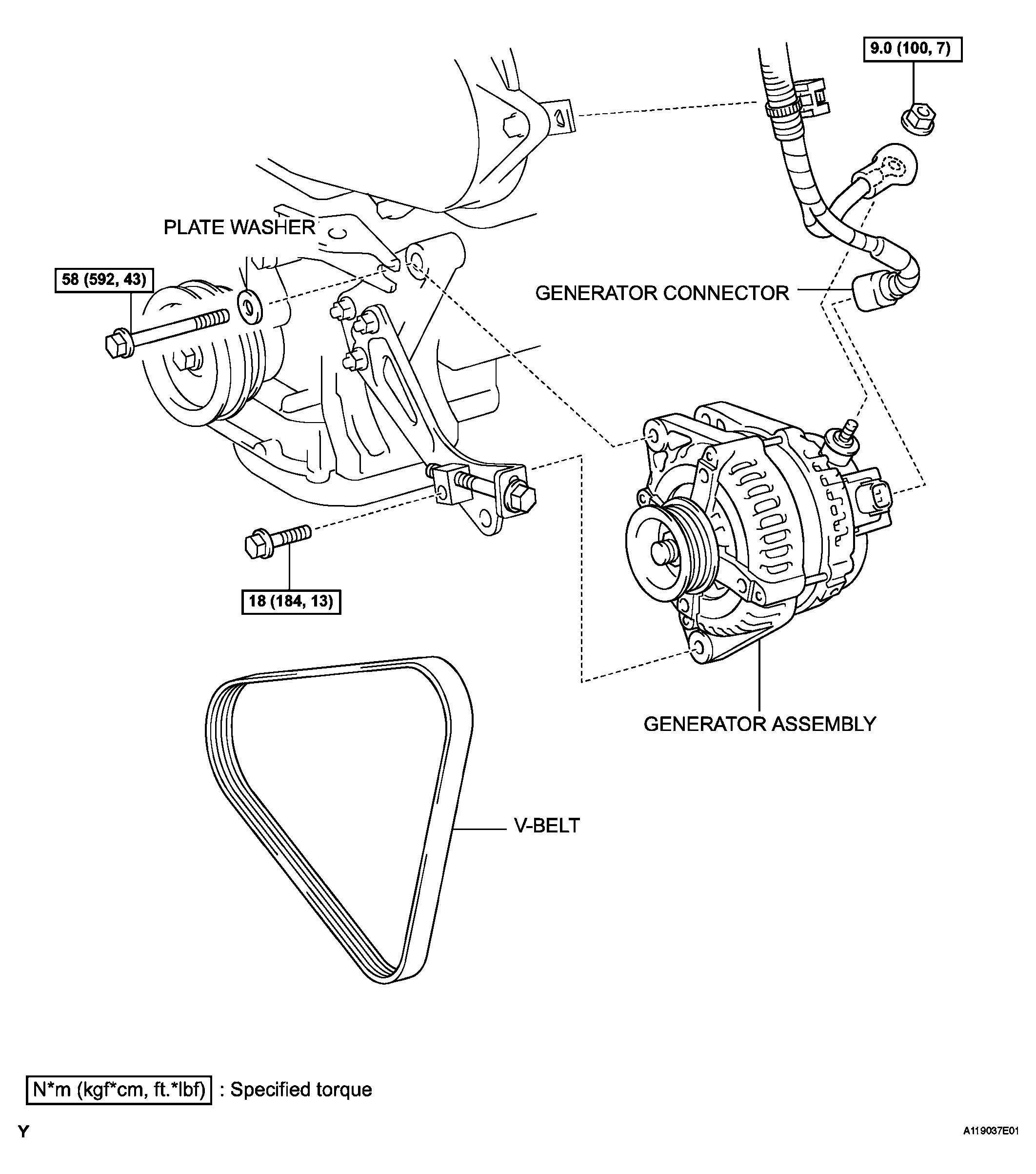

Fig 1: Identifying Generator Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

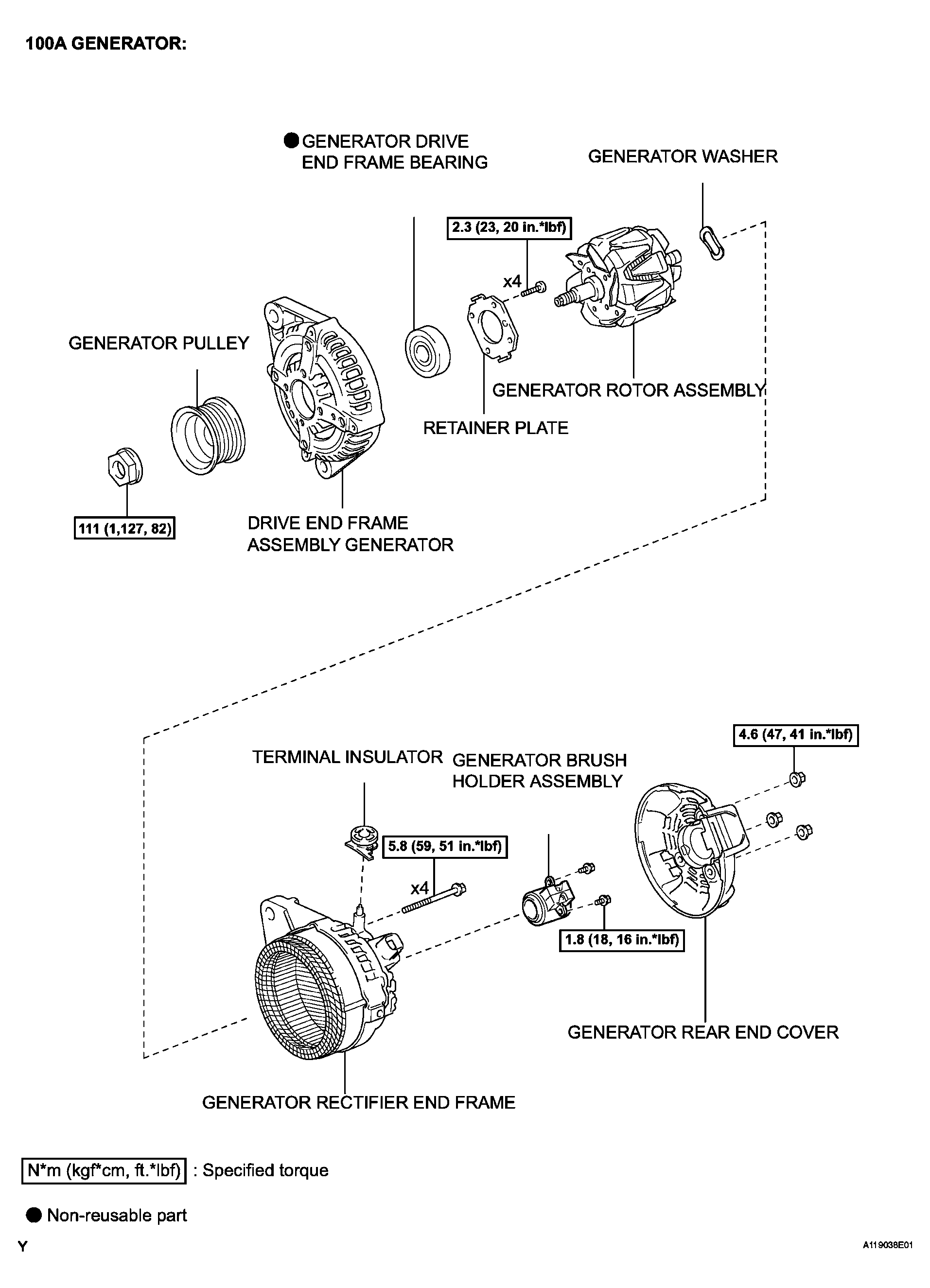

Fig 2: Identifying Generator Components (100A Generator)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

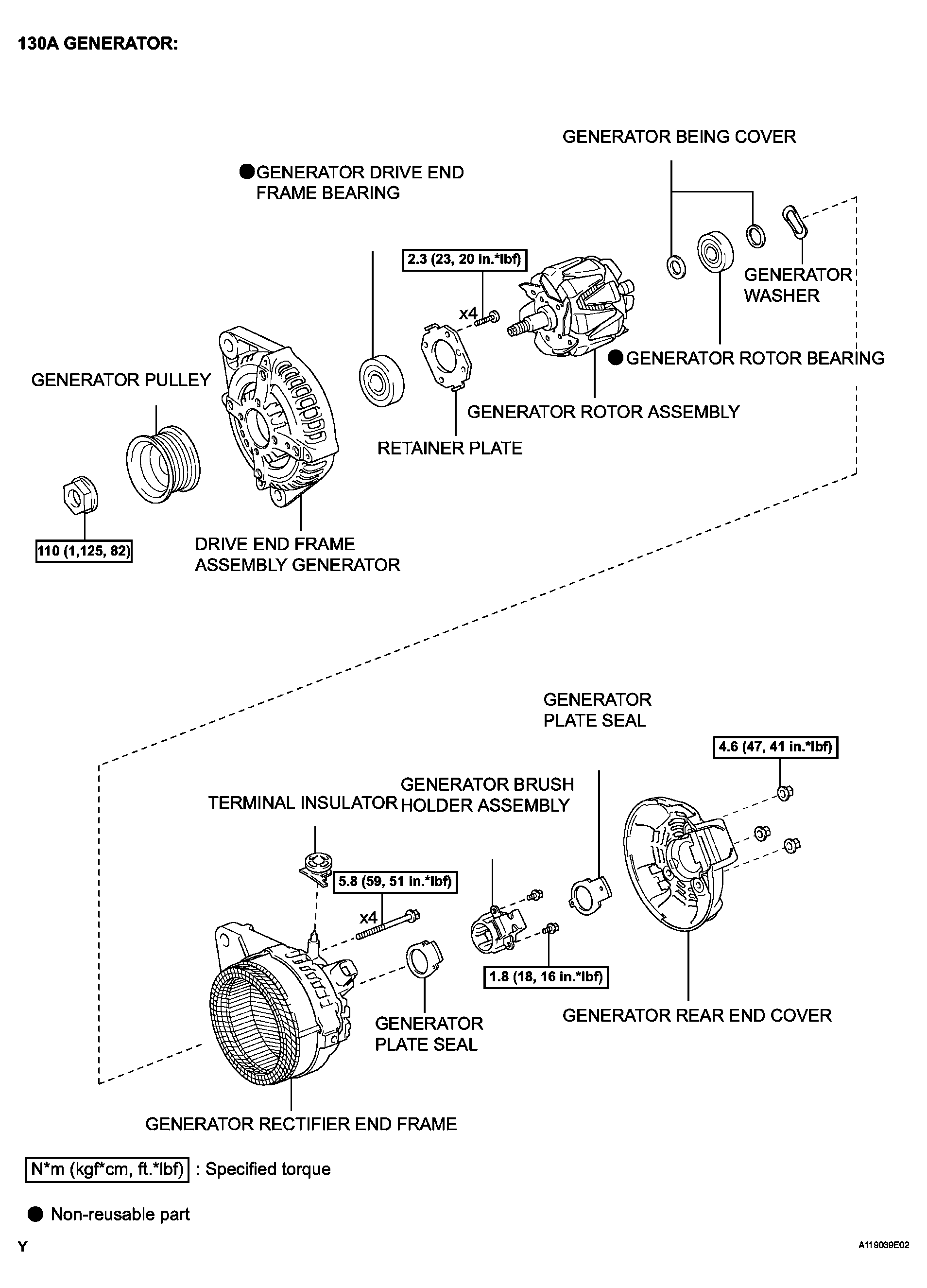

Fig 3: Identifying Generator Components (130A Generator)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
