Charging (3MZ-FE): Generator: Disassembly

REMOVE GENERATOR PULLEY

SST 09820-63010 (09820-06010, 09820-06020)

SPECIAL SERVICE TOOLS TABLE

SST 1-A and B	09820-06010
SST 2	09820-06020

Hold SST 1-A with a torque wrench, and tighten SST 1-B clockwise with the specified torque.

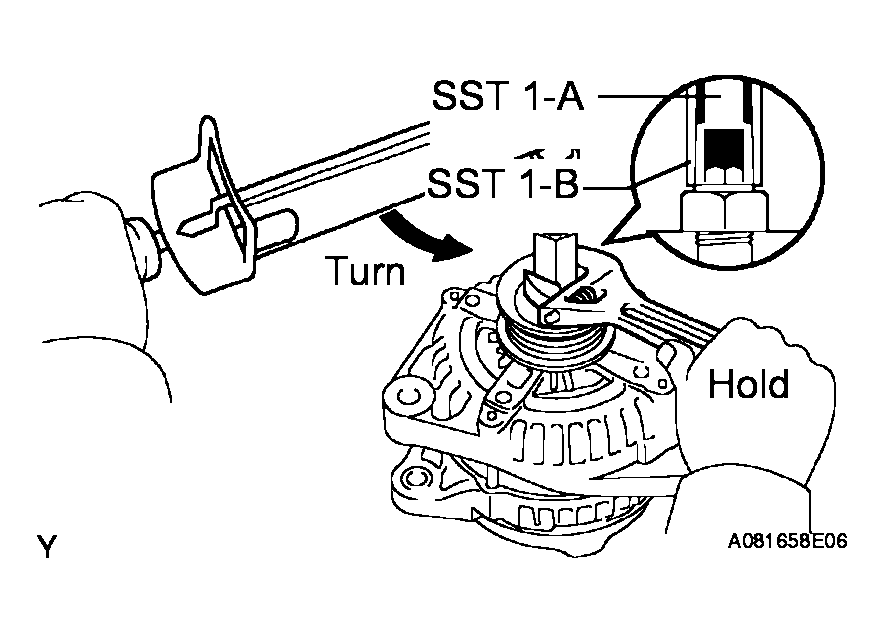

Fig 1: Tightening SST 1-B
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

NOTE: Check that SST is secured to the rotor shaft.
Clamp SST 2 in a vise.

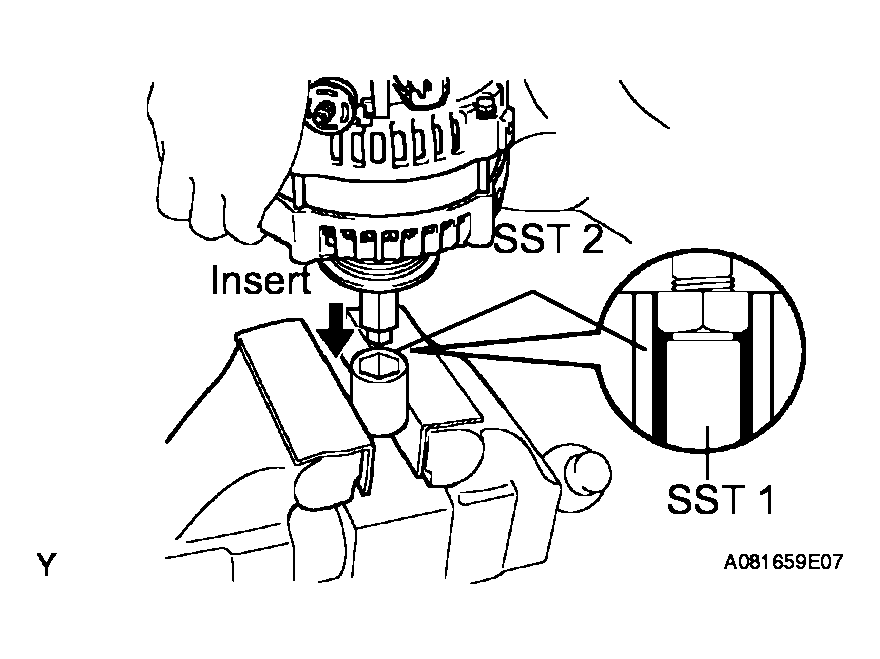

Insert SST 1-A and B into SST 2, and attach the pulley nut to SST 2.

Fig 2: Inserting SST 1-A And B Into SST 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

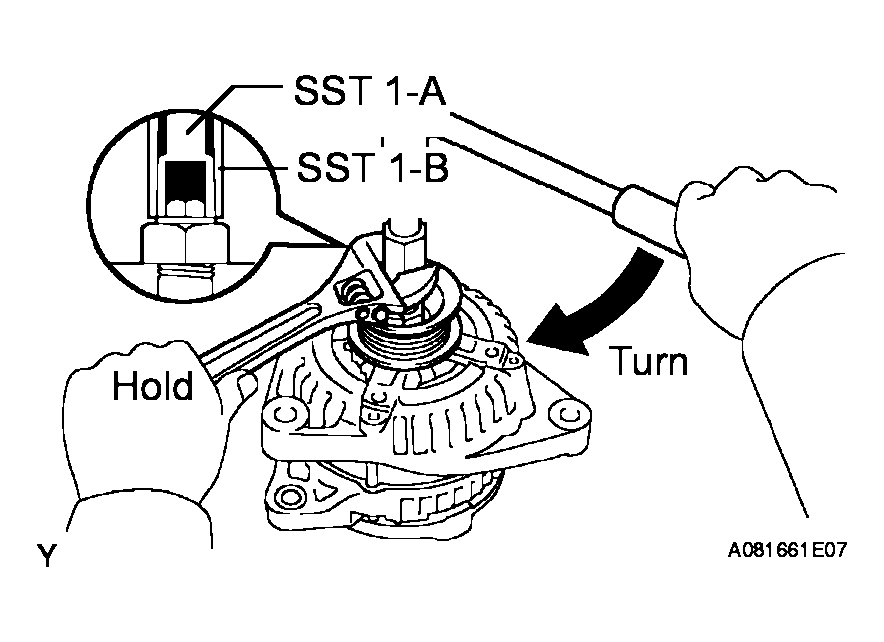

To loosen the pulley nut, turn SST 1-A in the direction shown in the illustration.

Fig 3: Turning SST 1-A
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: To prevent damage to the rotor shaft, do not loosen the pulley nut more than one-half turn.
Remove the generator from SST 2.
Turn SST 1-B, and remove SST 1-A and B.
Remove the pulley nut, and then remove the generator pulley.

Fig 4: Removing Pulley Nut

REMOVE GENERATOR REAR END COVER

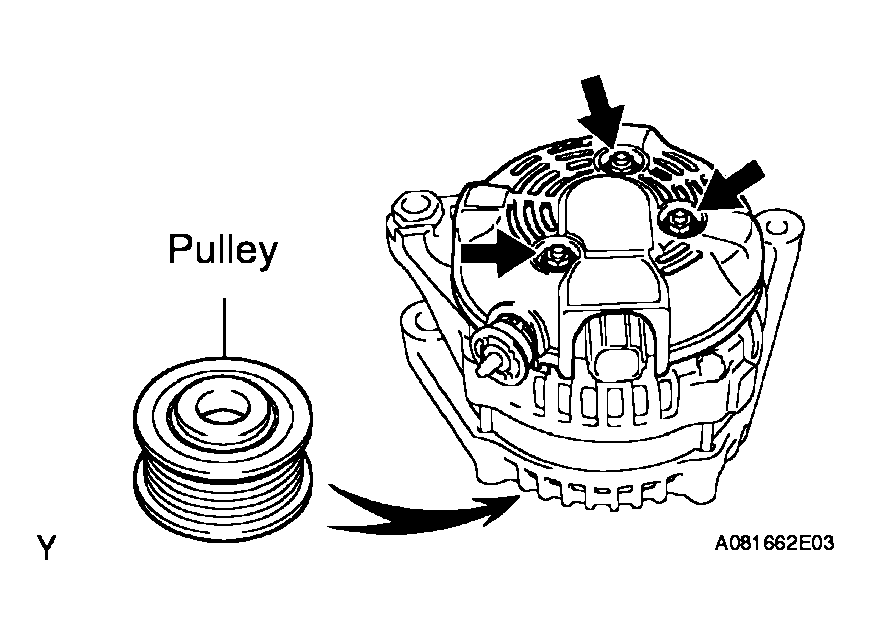

1. Place the generator on the generator pulley.
2. Remove the 3 nuts, and then remove the generator rear end cover.
Fig 5: Removing Generator Rear End Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

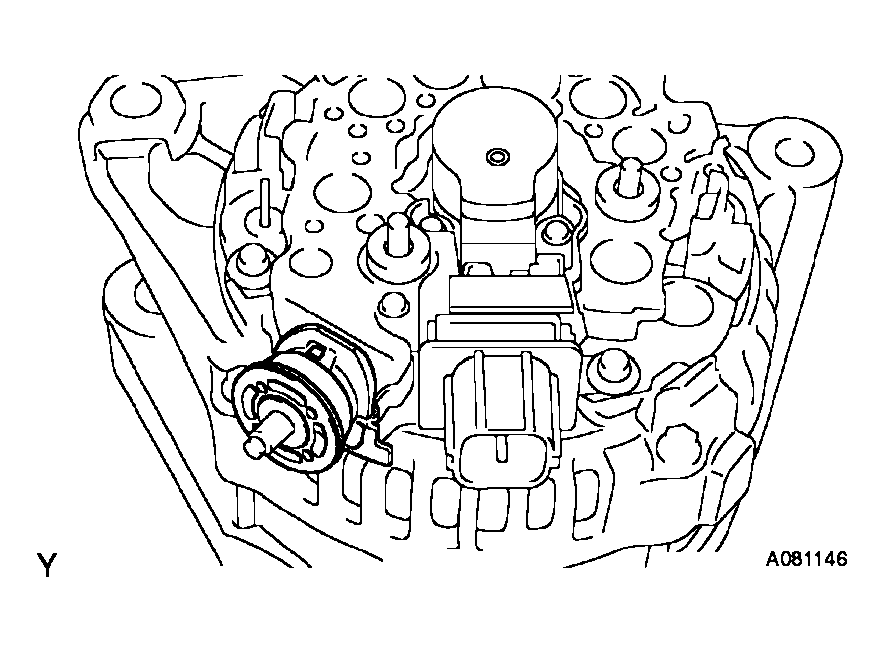

REMOVE TERMINAL INSULATOR
1. Remove the terminal insulator from the generator coil.
Fig 6: Removing Terminal Insulator From Generator Coil
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR BRUSH HOLDER ASSEMBLY

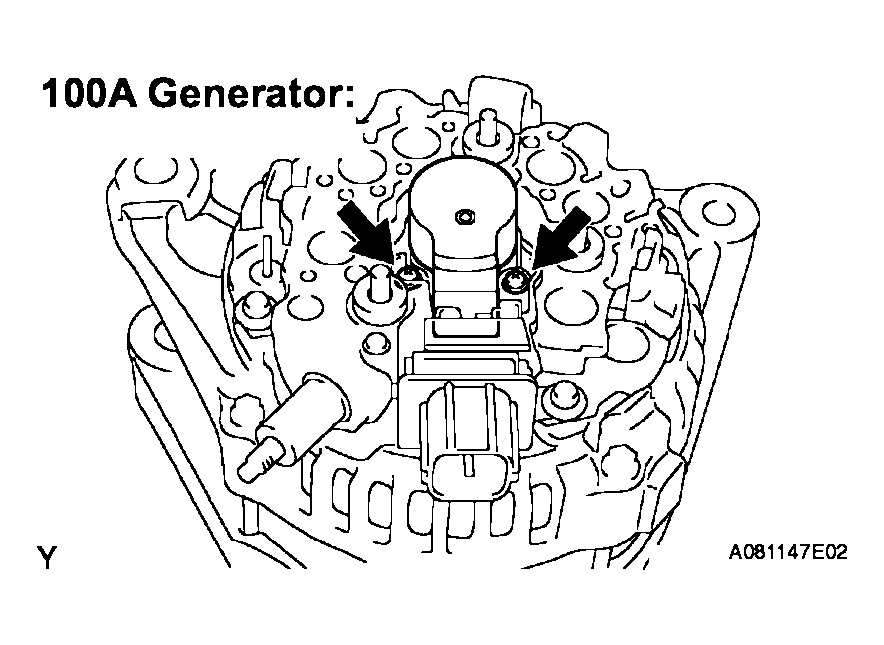

1. 100A Generator
  1. Remove the 2 screws, and then remove the generator brush holder.
  Fig 7: Removing Generator Brush Holder (100A Generator)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

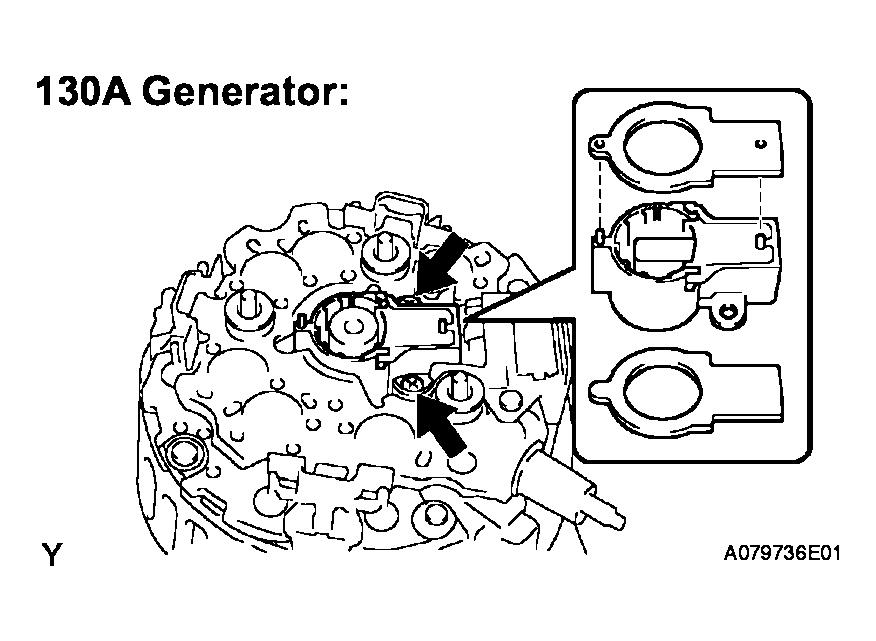

2. 130A Generator
  1. Remove the generator plate seal.
  2. Remove the 2 screws, and then remove the generator brush holder.
  3. Remove the generator plate seal.
Fig 8: Removing Generator Brush Holder (130A Generator)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR COIL ASSEMBLY

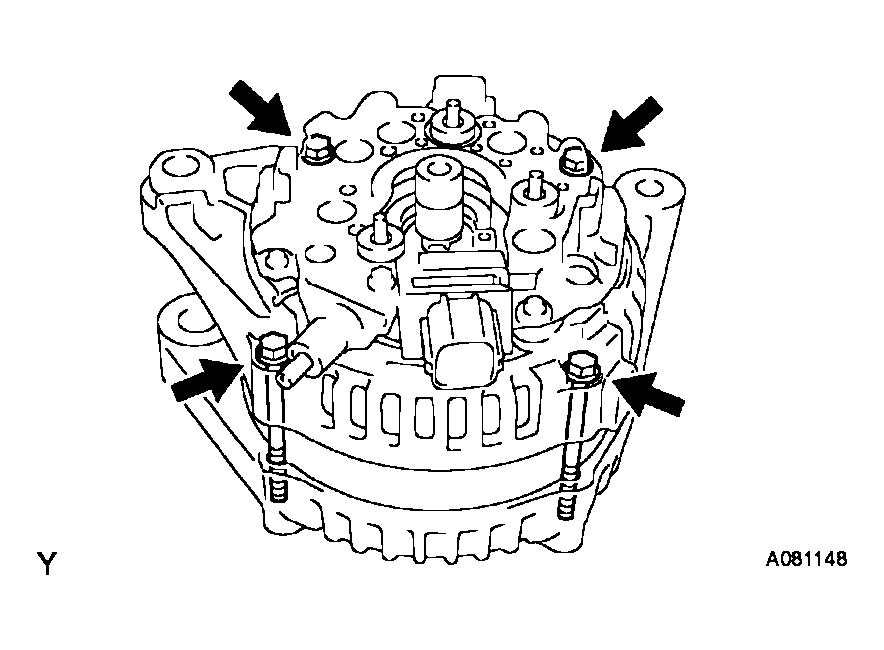

1. Remove the 4 bolts.

  Fig 9: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the generator coil.
SST 09950-40011 (09951-04020, 09952-04010, 09953-04020, 09954-04010, 09955-04071, 09957-04010, 09958-04011)

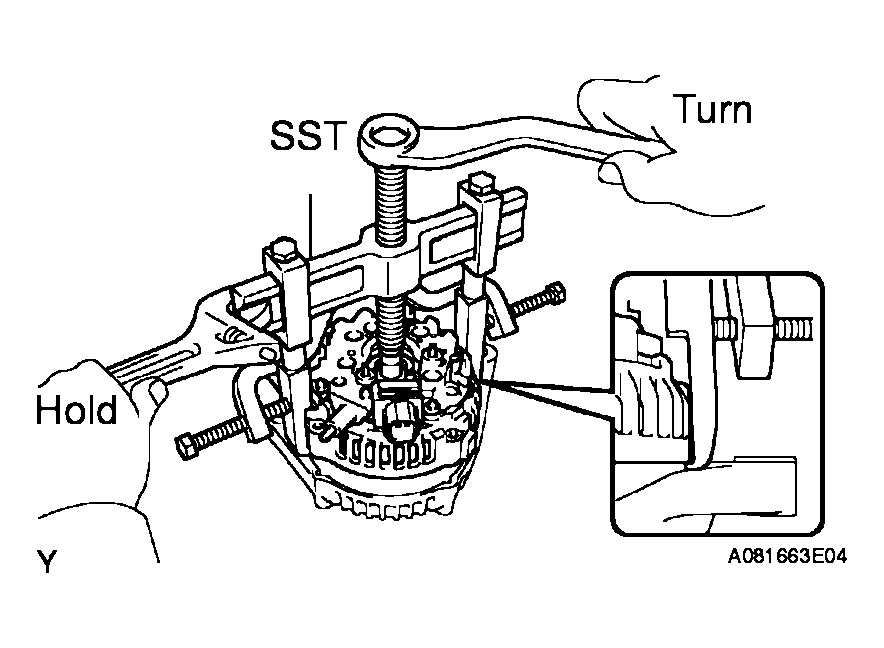

Fig 10: Removing Generator Coil
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR ROTOR ASSEMBLY

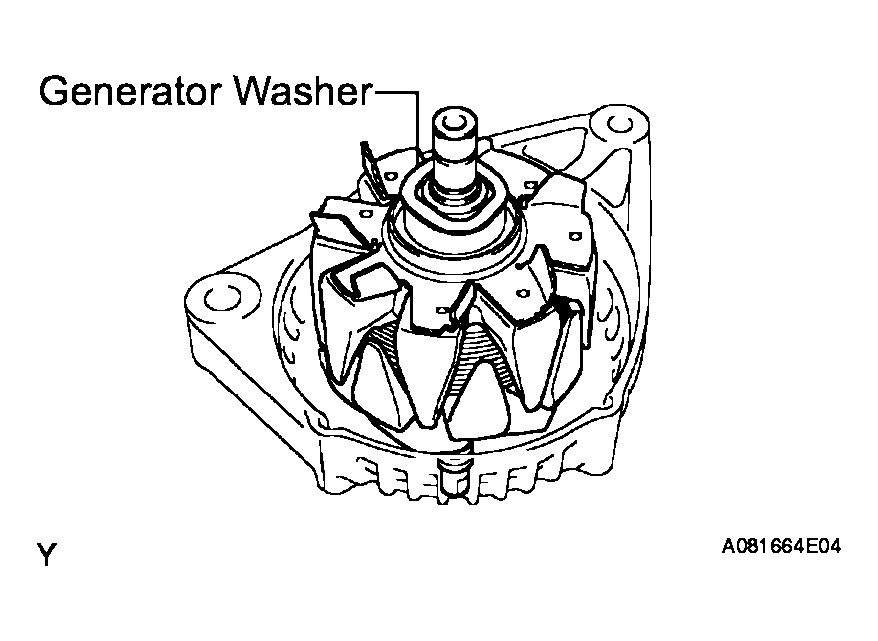

1. Remove the generator washer and the generator rotor.
Fig 11: Removing Generator Washer And Generator Rotor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
