Charging (3MZ-FE): Generator: Inspection

1. Check the brush length. (100A Generator)
   1. Using vernier calipers, measure the exposed brush length.

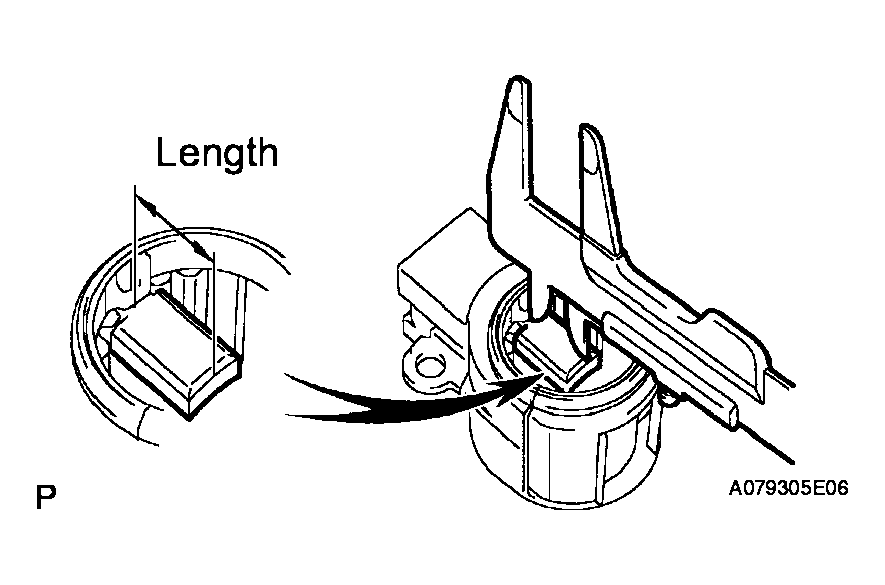

   Fig 1: Measuring Exposed Brush Length (100A Generator)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard exposed brush length:

   10.5 mm (0.413 in.)

   Minimum exposed brush length:

   4.5 mm (0.177 in.)

   If the exposed brush length is less than minimum, replace the generator brush holder.

2. Check the brush length. (130A Generator)
   1. Using vernier calipers, measure the exposed brush length.
   Fig 2: Measuring Exposed Brush Length (130A Generator)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard exposed brush length:

   10.5 mm (0.413 in.)

   Minimum exposed brush length:

   4.5 mm (0.177 in.)

   If the exposed brush length is less than minimum, replace the generator brush holder.

1. Check that bearing is not rough or worn.

   If necessary, replace the generator rotor. (100A Generator)

   If necessary, replace the generator rotor bearing. (130A Generator)

   Fig 3: Checking Generator Rotor Bearing

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check if the rotor has open circuit.
   1. Using an ohmmeter, measure the resistance between the slip ring.

      Resistance:

      2.3 to 2.7Ω at 20°C (68°F) for 100A

      Generator

      1.5 to 1.9Ω at 20°C (68°F) for 130A

      Generator

      If the resistance is not as specified, replace the generator rotor.

   Fig 4: Measuring Resistance Between Slip Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check if the rotor has ground.
   1. Using an ohmmeter, check that there is no continuity between the slip ring and rotor core.

   If there is continuity, replace the generator rotor.

4. Inspect slip rings.
   1. Check that the slip rings are not rough or scored.

   If rough or scored, replace the generator rotor.

   Fig 5: Checking Continuity Between Slip Ring And Rotor Core

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Check the slip ring diameter.
   1. Using vernier calipers, measure the slip ring diameter.

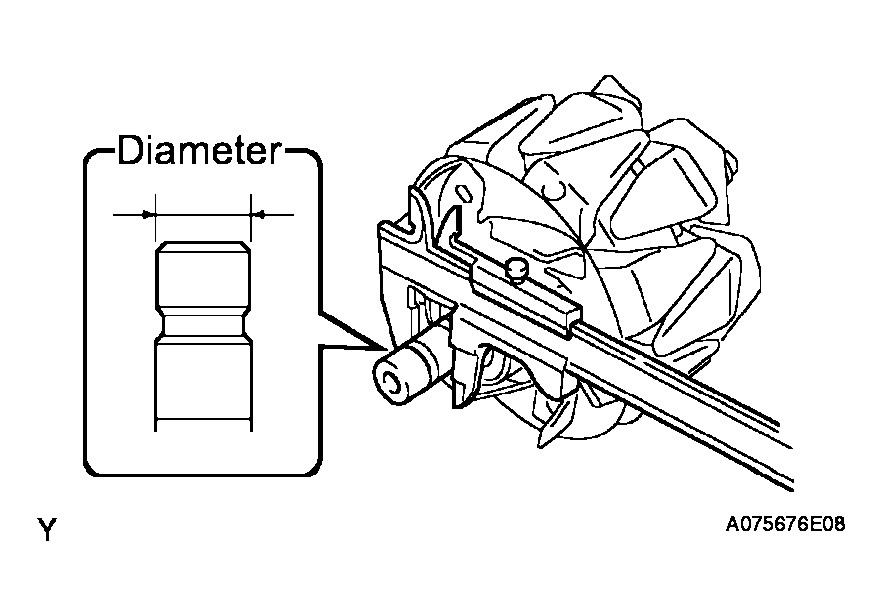

   Fig 6: Measuring Slip Ring Diameter

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard diameter:

   14.2 to 14.4 mm (0.559 to 0.567 in.)

   Minimum diameter:

   14.0 mm (0.551 in.)

   If the diameter is less than minimum, replace the generator rotor.

1. 130A generator
   1. Using SST, remove the generator bearing cover (outside) and bearing.

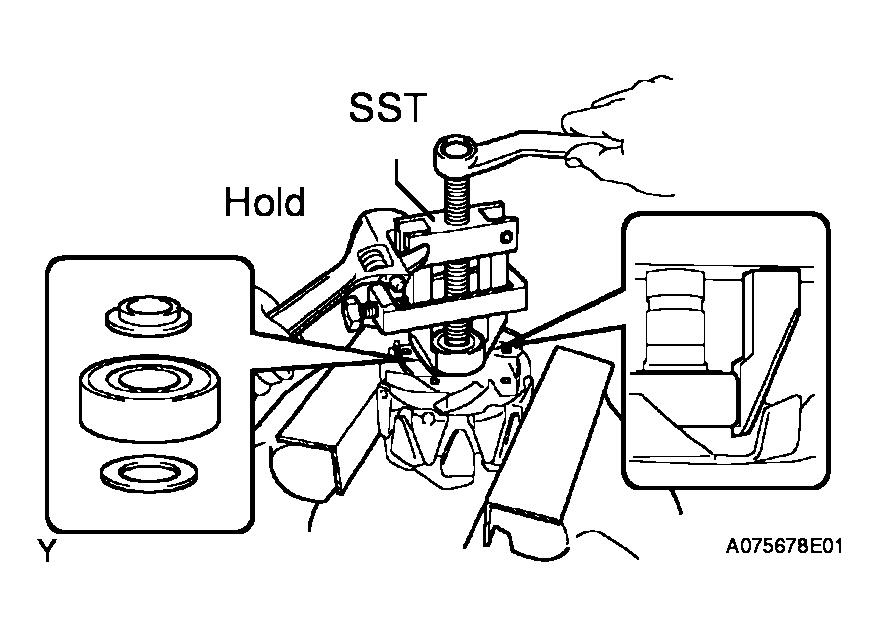

      Fig 7: Removing Generator Bearing Cover (Outside) And Bearing (130A Generator)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09820-00021

      NOTE: Be careful not to damage the fan.
   2. Remove the generator bearing cover (inside).

1. 130A generator
   1. Place the generator rotor on the generator pulley.
   2. Install the generator bearing cover (inside).
   3. Using SST and a press, press in a new bearing.
      Fig 8: Installing Generator Rotor Bearing

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09820-00031

   4. Using SST, push in the generator bearing cover (outside).

   SST 09285-76010

   Fig 9: Installing Generator Bearing Cover (Outside)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that bearing is not rough or worn.

If necessary, replace the bearing.

Fig 10: Checking Generator Drive End Frame Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
