Charging (3MZ-FE): Generator: Reassembly

  1. REMOVE GENERATOR DRIVE END FRAME BEARING
    1. Remove the 4 screws, and remove the retainer plate.
      Fig 1: Removing Retainer Plate
      G04088353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, tap out the bearing.

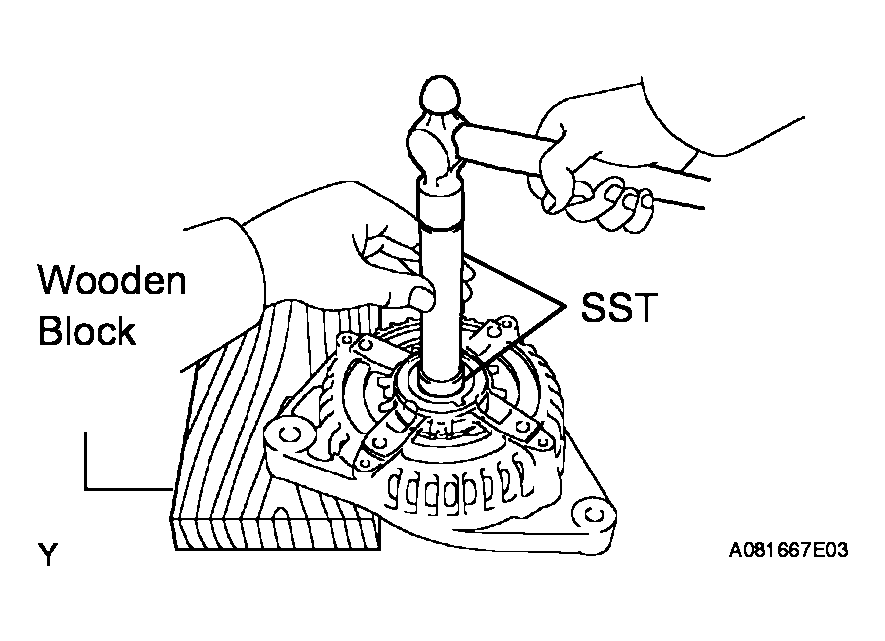

    Fig 2: Removing Generator Drive End Frame Bearing
    G04088354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)

  2. INSTALL GENERATOR DRIVE END FRAME BEARING
    1. Using SST and a press, press in a new bearing.
      Fig 3: Installing Generator Drive End Frame Bearing
      G04088355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the retainer plate with the 4 screws.
      Fig 4: Installing Retainer Plate
      G04088356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.3 N*m (23 kgf*cm, 20 in.*lbf)

      SST 09950-60010 (09951-00470), 09950-70010 (09951-07100)

  3. INSTALL GENERATOR ROTOR ASSEMBLY
    1. Place the generator drive end frame on the generator pulley.
    2. Install the generator rotor and the generator washer.

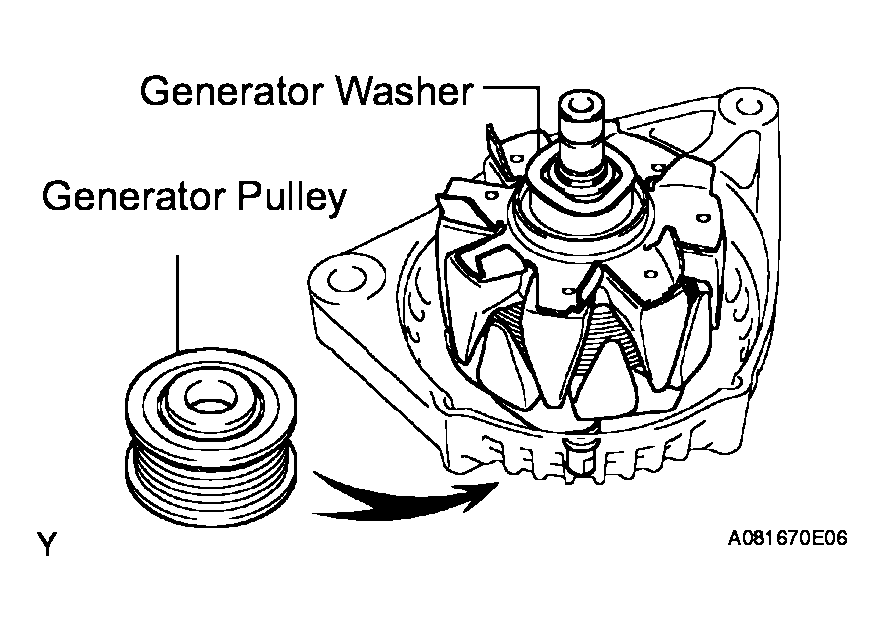

    Fig 5: Installing Generator Rotor And Generator Washer
    G04088357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL GENERATOR COIL ASSEMBLY
    1. 100A Generator
      1. Using deep socket wrench 21 and a press, press in the coil carefully.
    2. 130A Generator
      1. Using deep socket wrench 20 and a press, press in the coil carefully.

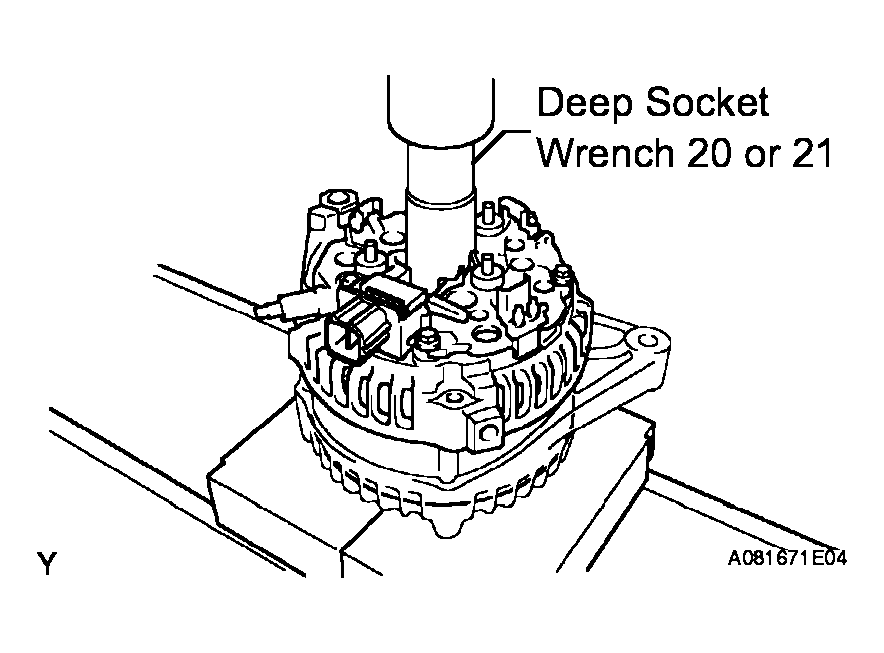

      Fig 6: Installing Generator Coil Assembly
      G04088358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Tighten the 4 bolts.

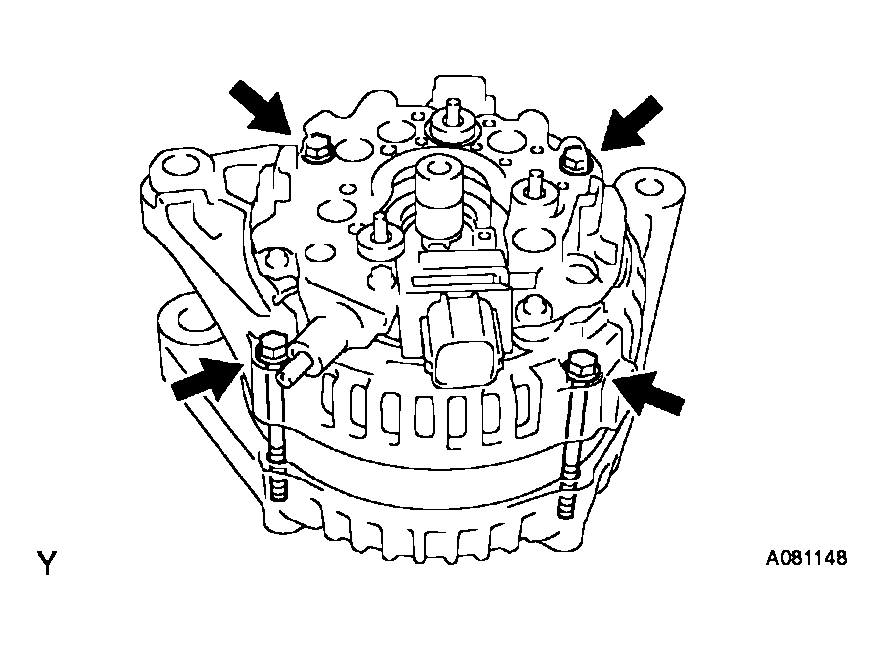

      Fig 7: Tightening Bolts
      G04088359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 5.8 N*m (59 kgf*cm, 51 in.*lbf)

  5. INSTALL GENERATOR BRUSH HOLDER ASSEMBLY
    1. 100A Generator
      1. While pushing the 2 brushes to inside the brush holder, insert a pin (1.0 mm (0.039 in.)) into the brush holder hole.

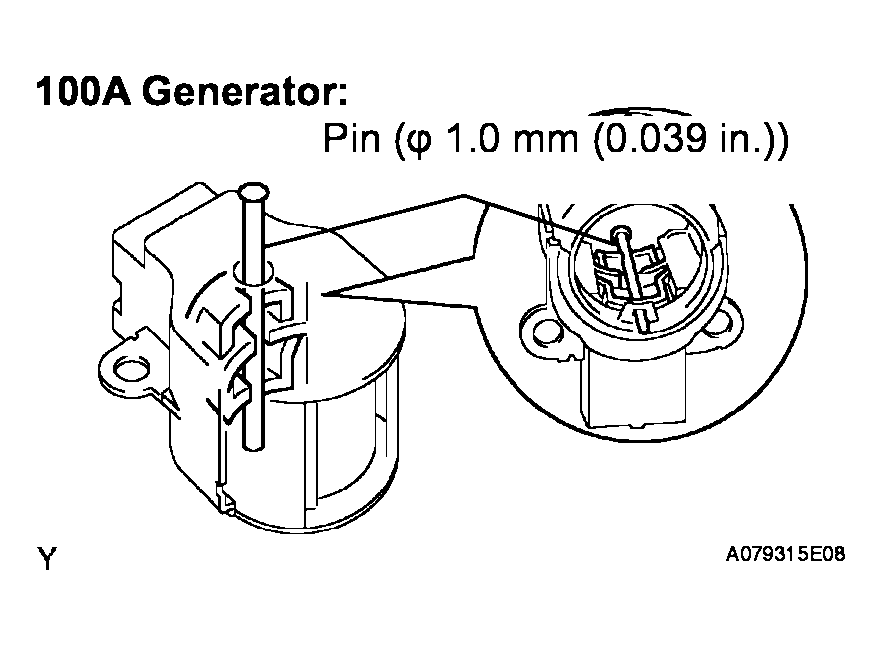

        Fig 8: Inserting Pin Into Brush Holder Hole
        G04088360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the generator brush holder with the 2 screws.

        Torque: 1.8 N*m (18 kgf*cm, 16 in.*lbf)

      3. Pull out the pin (1.0 mm (0.039 in.)) from the generator brush holder.

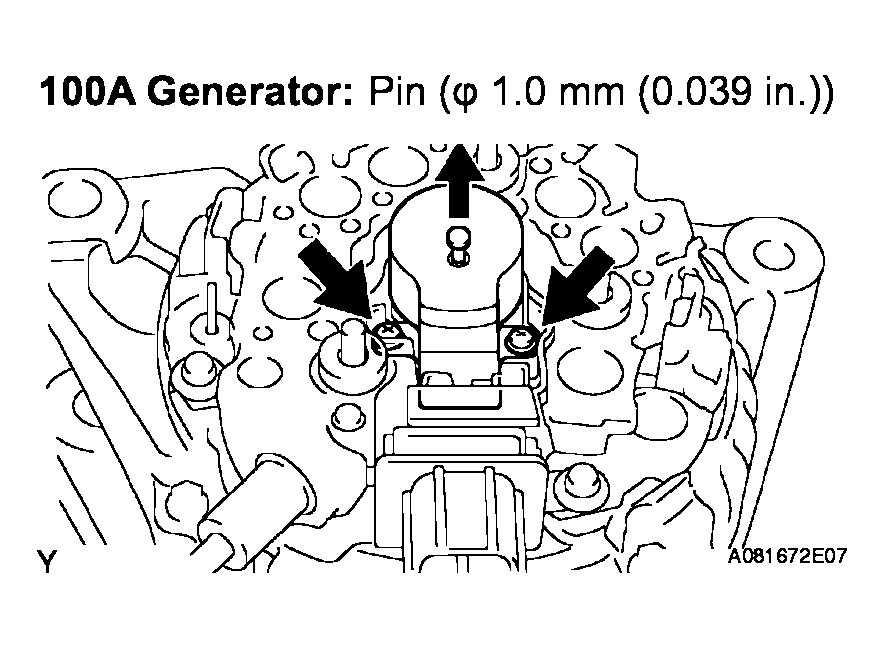

      Fig 9: Pulling Out Pin From Generator Brush Holder
      G04088361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. 130A Generator
      1. Install the generator plate seal (inside).
      2. Place the generator brush holder with the pin facing upward.

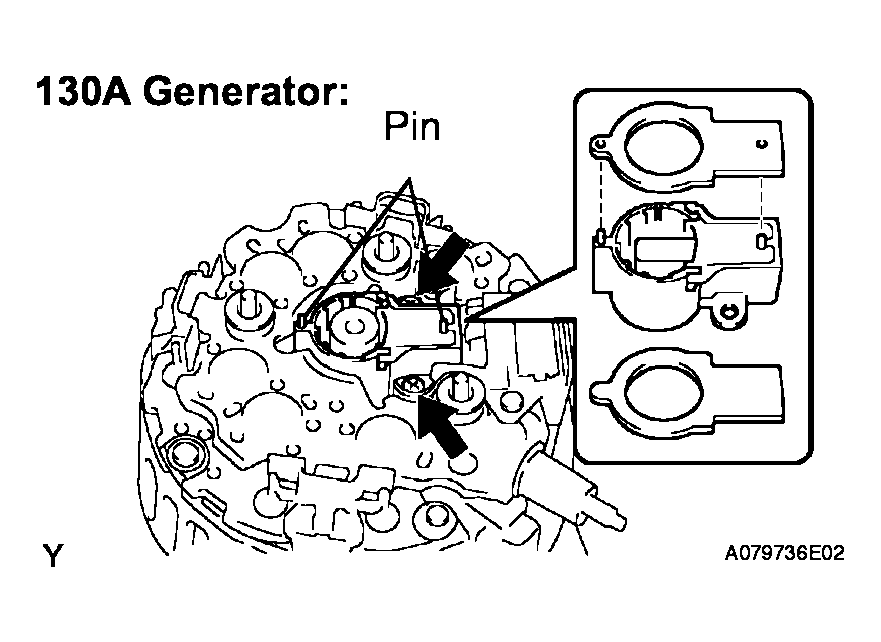

        Fig 10: Placing Generator Brush Holder With Pin Facing Upward
        G04088362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: Be careful of the generator brush holder installing direction.
      3. Tighten the 2 screws.

        Torque: 1.8 N*m (18 kgf*cm, 16 in.*lbf)

      4. Align the pins of the generator brush holder with the holes of the generator plate seal (outside), and install the generator plate seal (outside).
  6. INSTALL TERMINAL INSULATOR
    1. Install the terminal insulator.

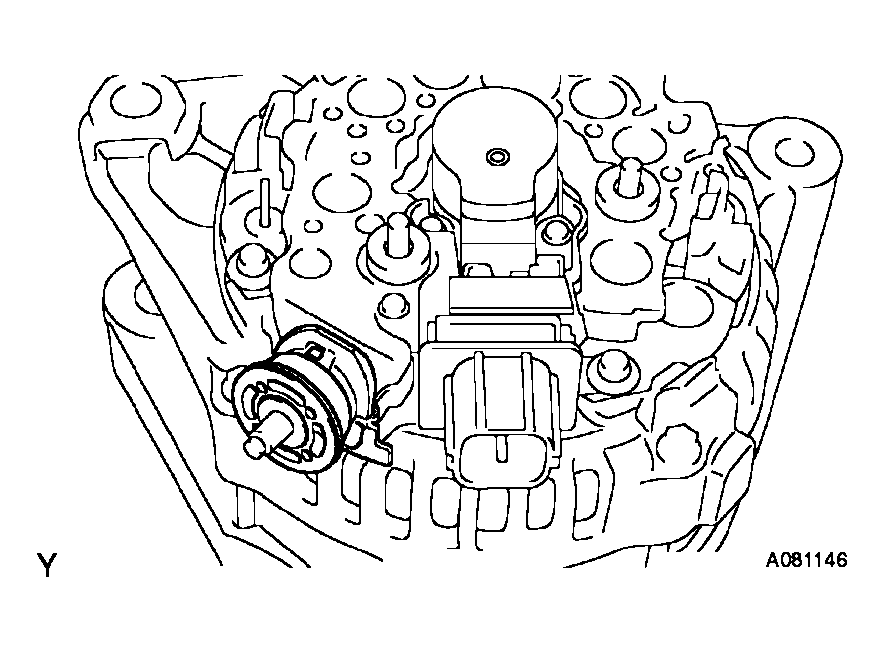

    Fig 11: Installing Terminal Insulator
    G04088363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE: Pay attention the mounting orientation of the terminal insulator.
  7. INSTALL GENERATOR REAR END COVER
    1. Install the generator rear end cover with the 3 nuts.

    Torque: 4.6 N*m (47 kgf*cm, 41 in.*lbf)

  8. INSTALL GENERATOR PULLEY

    SST 09820-63010 (09820-06010, 09820-06020)

    SPECIAL SERVICE TOOLS TABLE

    SST 1-A and B 09820-06010
    SST 2 09820-06020

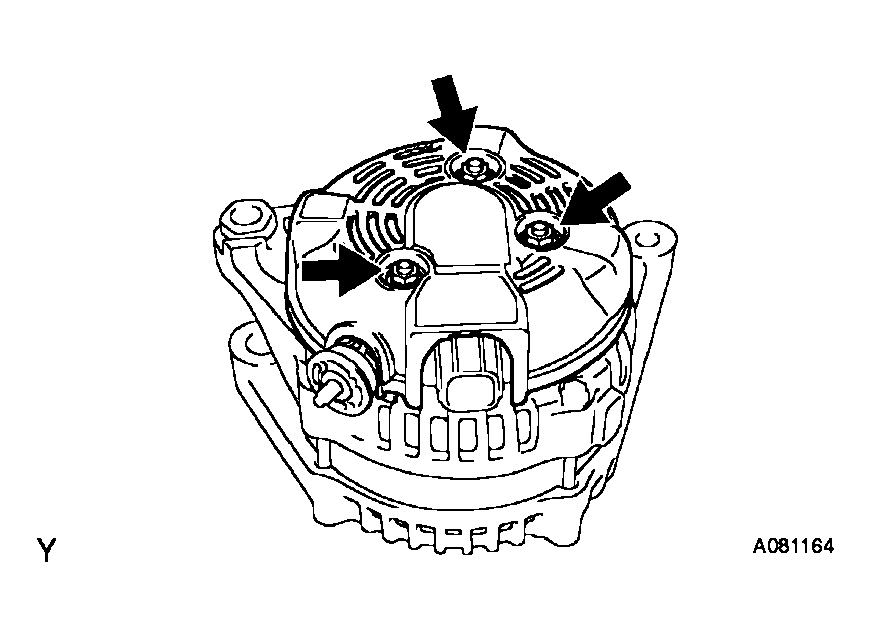

    Fig 12: Installing Generator Rear End Cover
    G04088364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the generator pulley to the rotor shaft by tightening the generator pulley nut by hand.
    2. Hold SST 1-A with a torque wrench, and tighten SST 1-B clockwise with the specified torque.

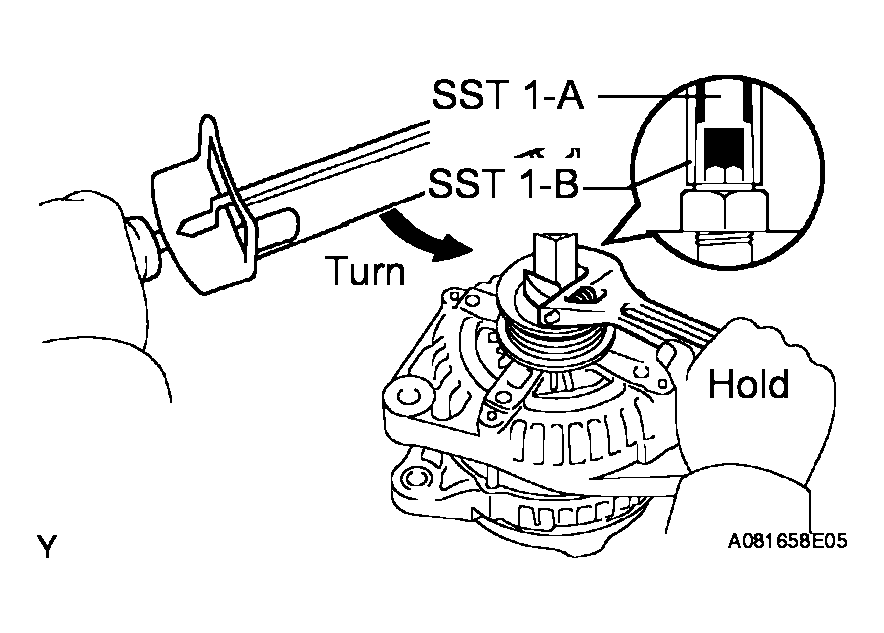

      Fig 13: Holding SST 1-A With Torque Wrench And Tightening SST 1-B Clockwise
      G04088365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

      NOTE: Check that SST is secured to the rotor shaft.
    3. Clamp SST 2 in a vise.
    4. Insert SST 1-A and B into SST 2, and attach the generator pulley nut to SST 2

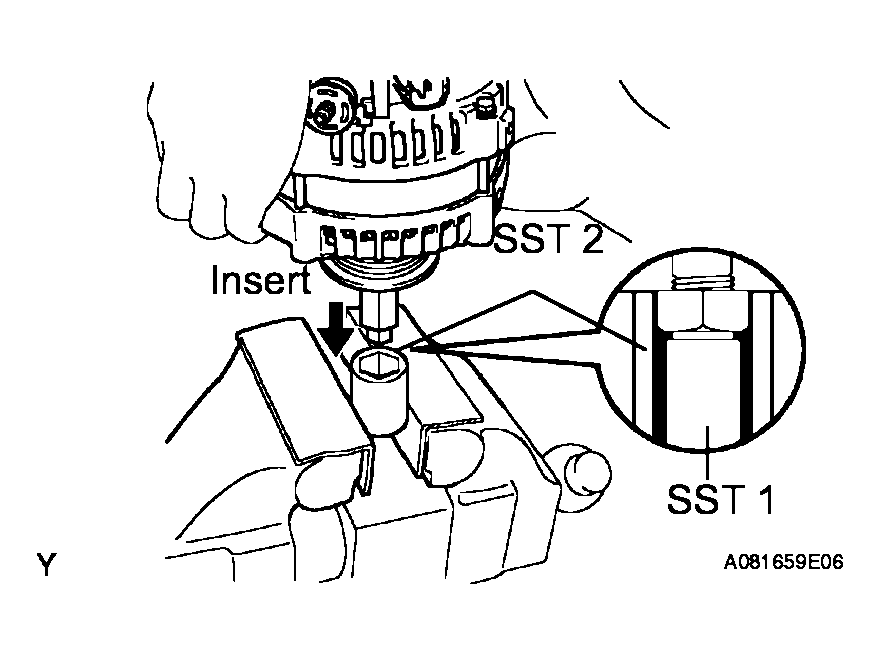

      Fig 14: Inserting SST 1-A And B Into SST 2
      G04088366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Tighten the generator pulley nut by turning SST 1-A in the direction shown in the illustration.

      Torque: 111 N*m (1,125 kgf*cm, 81 ft.*lbf)

    6. Remove the generator from SST 2.
      Fig 15: Tightening Generator Pulley Nut
      G04088367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Turn SST 1-B, and remove SST 1-A, B.
    8. Turn the generator pulley, and check that the generator pulley moves smoothly.

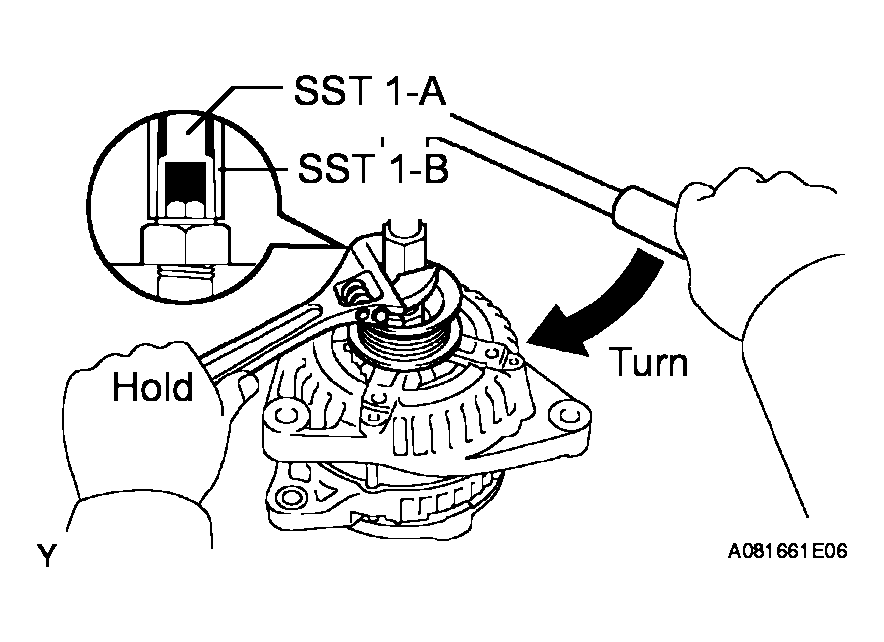

    Fig 16: Turning SST 1-B, And Removing SST 1-A, B
    G04088368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
