Rear Console Box: Disassembly

  1. REMOVE CONSOLE BOX CUP HOLDER
    1. Remove the console box cup holder.
  2. REMOVE BOX NO. 1 SIDE PANEL
    1. Disengage the 8 claws and remove the box No.1 side panel.
    Fig 1: Removing Box No. 1 Side Panel
    G04093370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR CONSOLE BOX LOWER
    1. Remove the 6 screws.
    2. Disengage the 4 clips and the claw, and remove the rear console box lower.

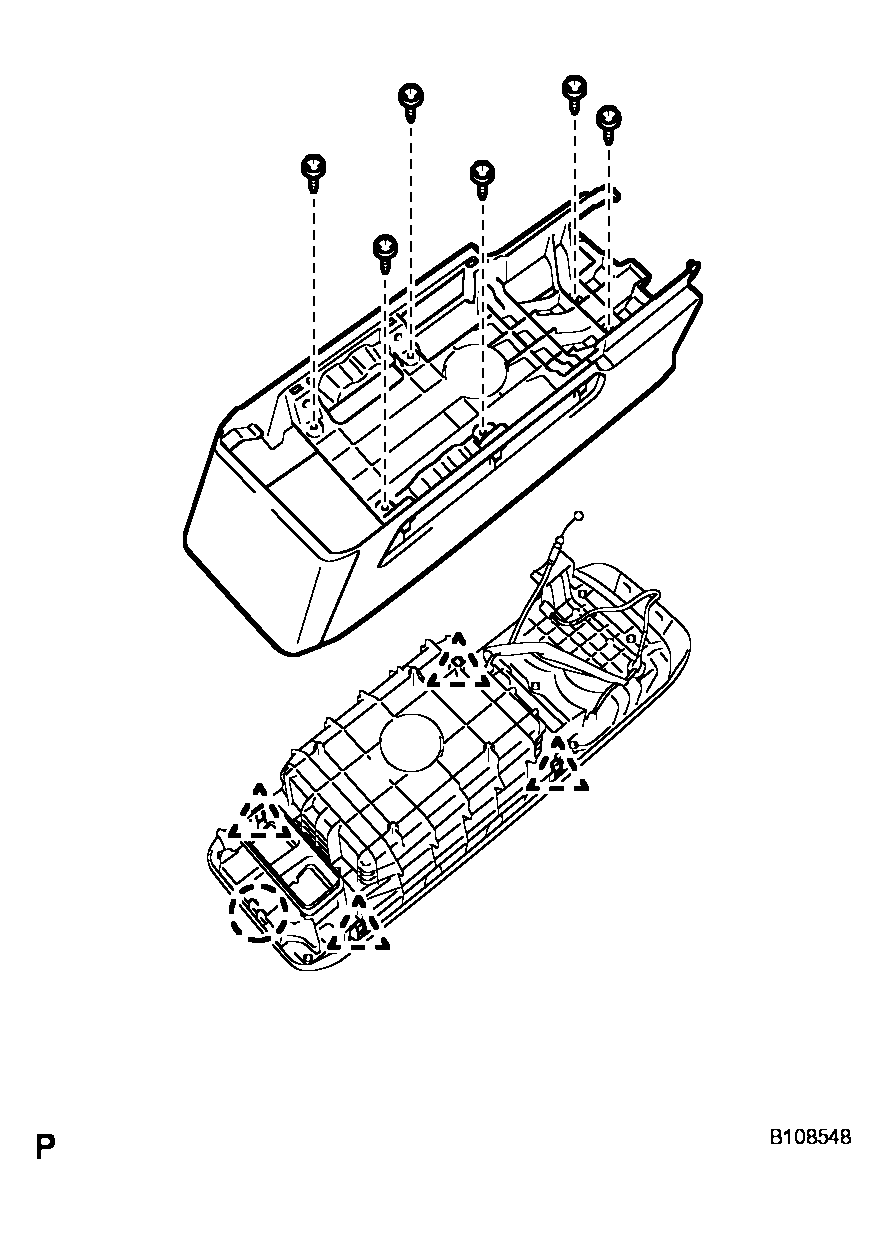

    Fig 2: Removing Rear Console Box Lower
    G04093371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CONSOLE BOX LIGHT SUB-ASSEMBLY
    1. Disconnect each of the clamp and connectors, and remove the console box light sub-assembly.

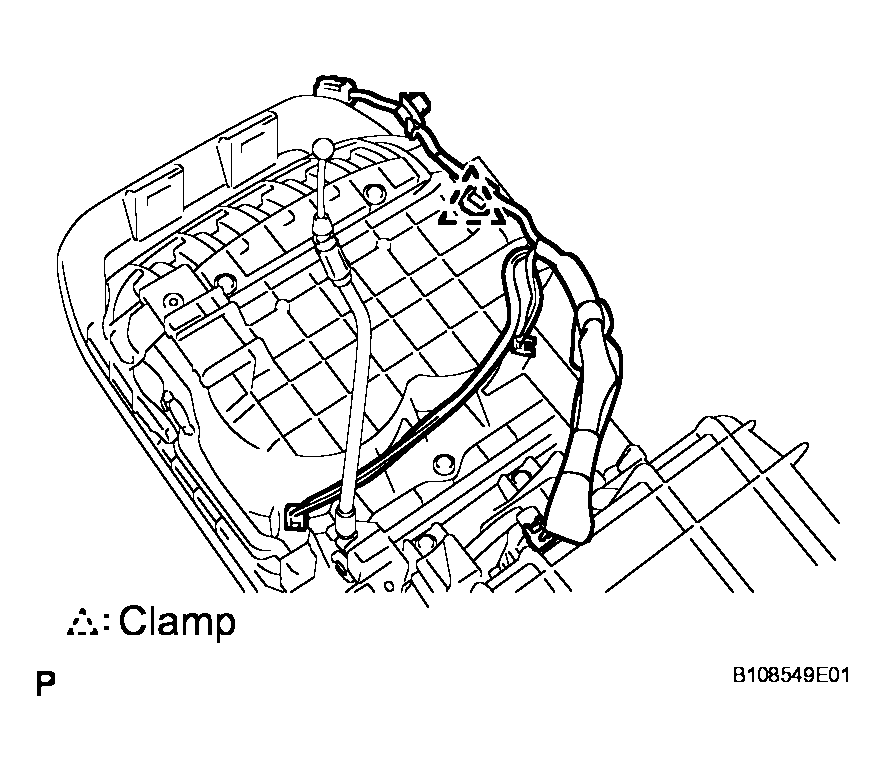

    Fig 3: Removing Console Box Light Sub-Assembly
    G04093372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR CONSOLE BOX HOLDER CUP
    1. Remove the 5 screws and the rear console box holder cup.

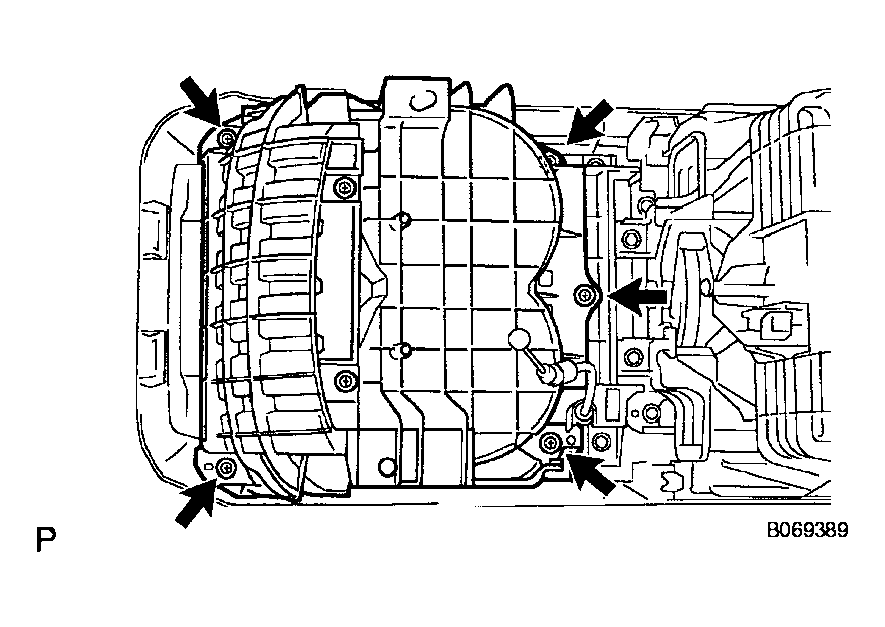

    Fig 4: Removing Rear Console Box Holder Cup
    G04093373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE CONSOLE UPPER PANEL GARNISH FRONT
    1. Remove the 4 screws and the console upper panel garnish front.
    Fig 5: Removing Console Upper Panel Garnish Front
    G04093374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE CONSOLE BOX REGISTER ASSEMBLY
    1. Remove the 6 screws and the console box register assembly.

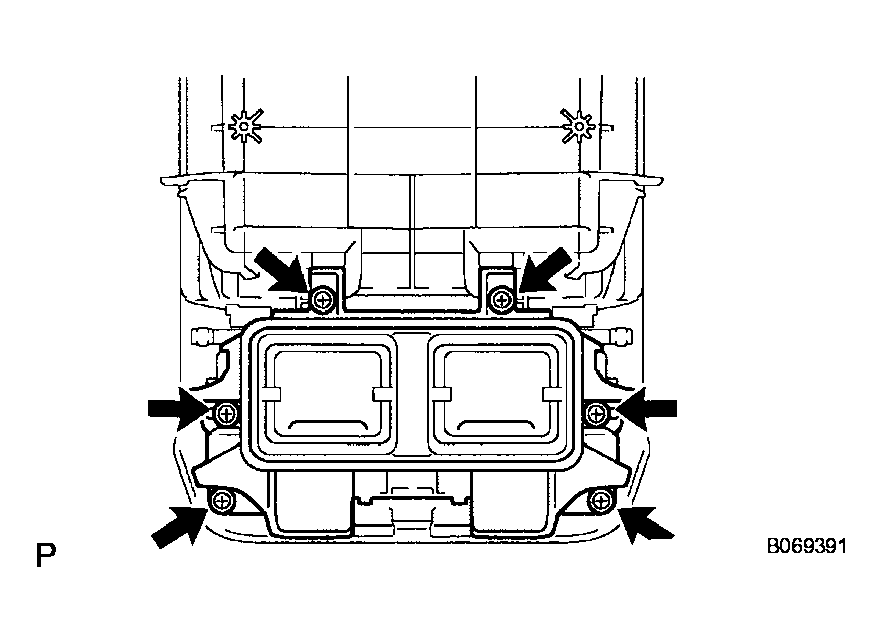

    Fig 6: Removing Console Box Register Assembly
    G04093375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE CONSOLE BOX SUB-ASSEMBLY UPPER
    1. Remove the 4 screws.

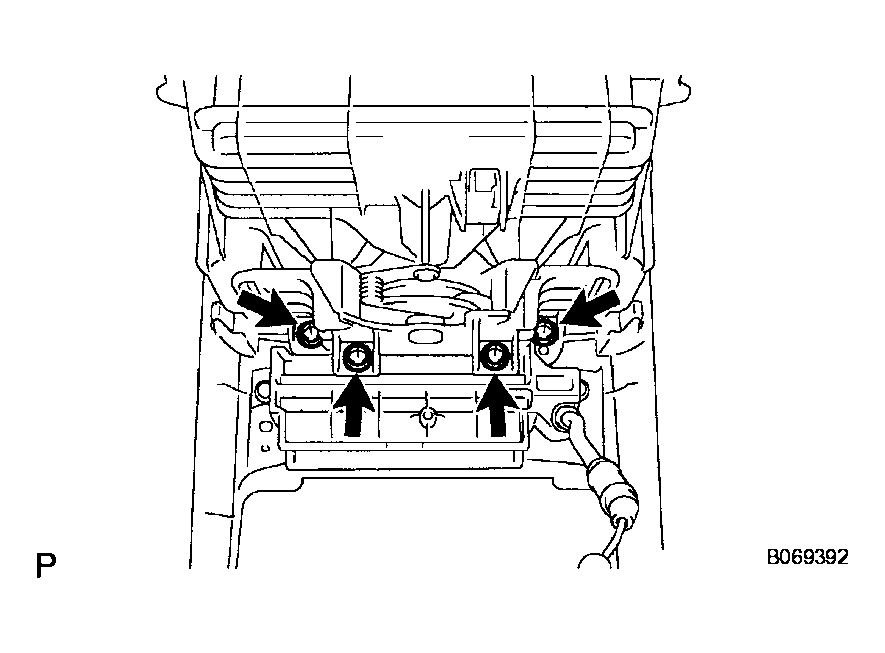

      Fig 7: Locating Screws
      G04093376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.

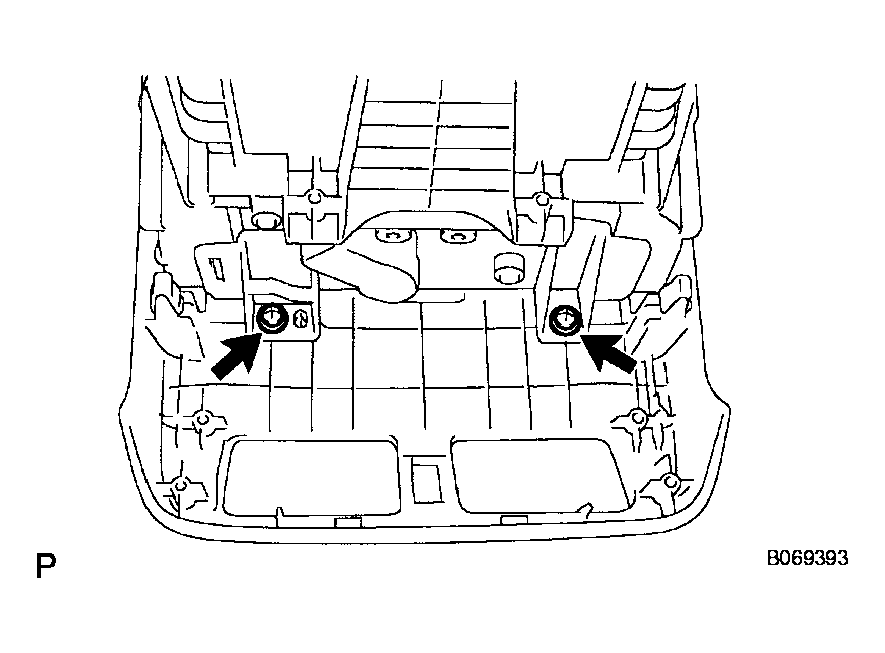

      Fig 8: Removing Screws
      G04093377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 2 claws.

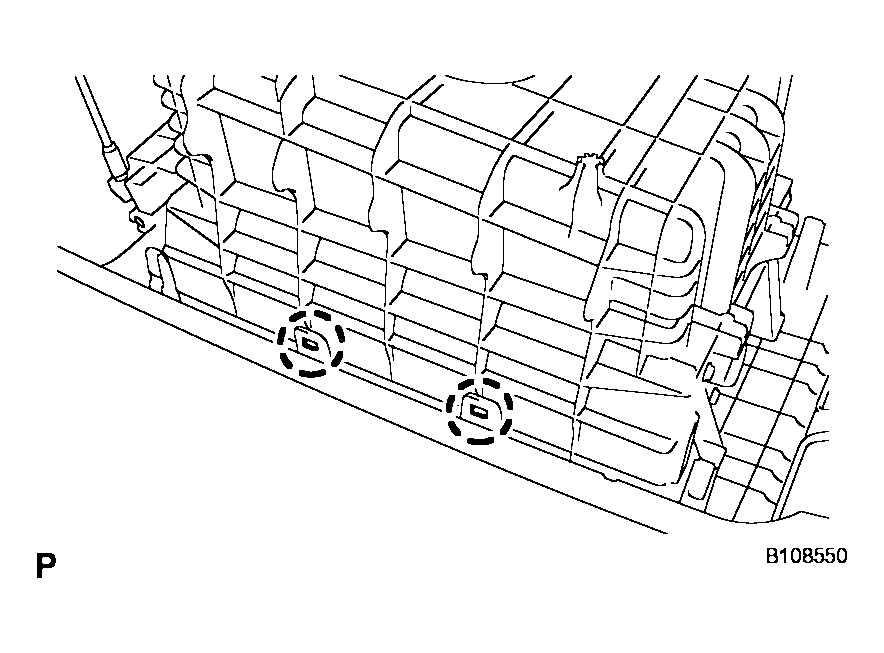

      Fig 9: Disengaging Claws
      G04093378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the 2 claws and remove the console box sub-assembly upper.

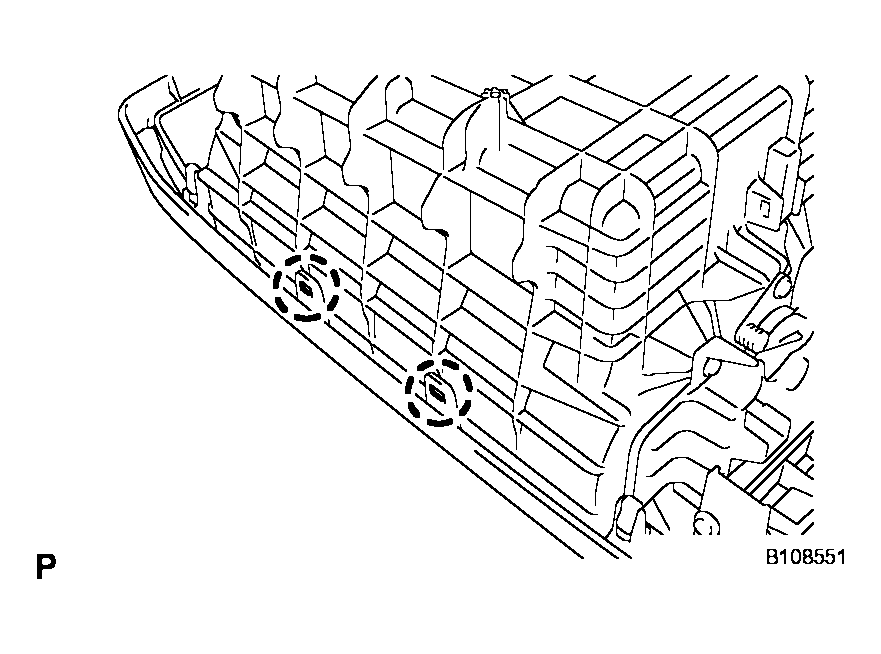

    Fig 10: Removing Console Box Sub-Assembly Upper
    G04093379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE CONSOLE COMPARTMENT DOOR LOCK
    1. Remove the 2 screws and the console compartment door lock.

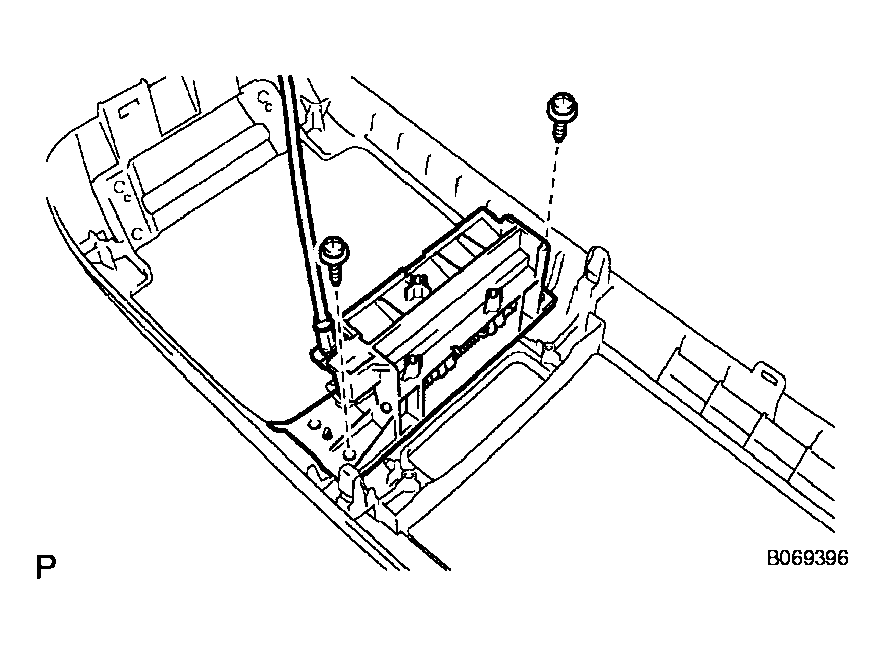

    Fig 11: Removing Console Compartment Door Lock
    G04093380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CONSOLE UPPER PANEL GARNISH REAR
    1. Remove the 3 screws and the console upper panel garnish rear.

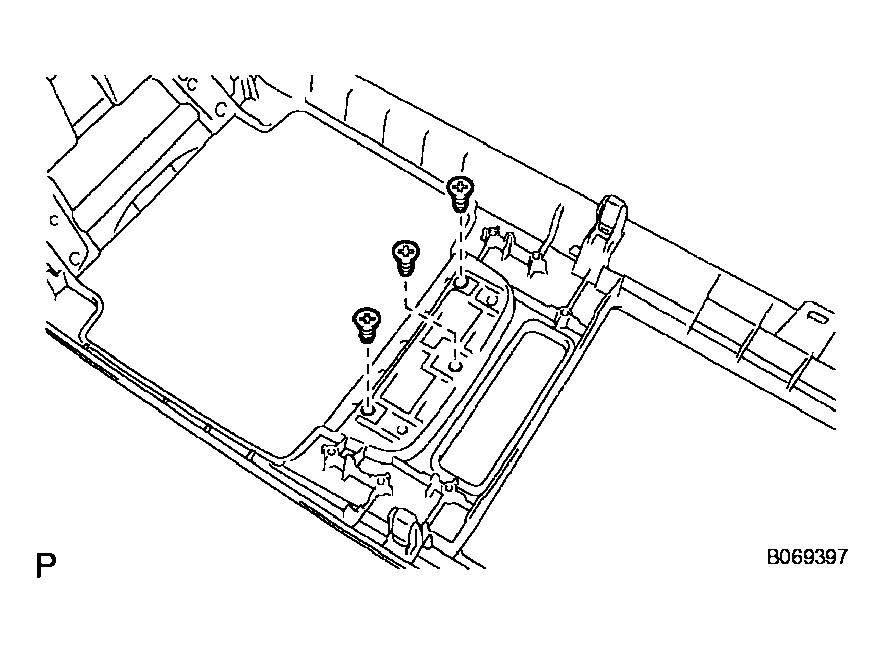

    Fig 12: Removing Console Upper Panel Garnish Rear
    G04093381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
