Rear Console Box: Reassembly

  1. INSTALL CONSOLE UPPER PANEL GARNISH REAR
    1. Install the 3 screws and the console upper panel garnish rear.

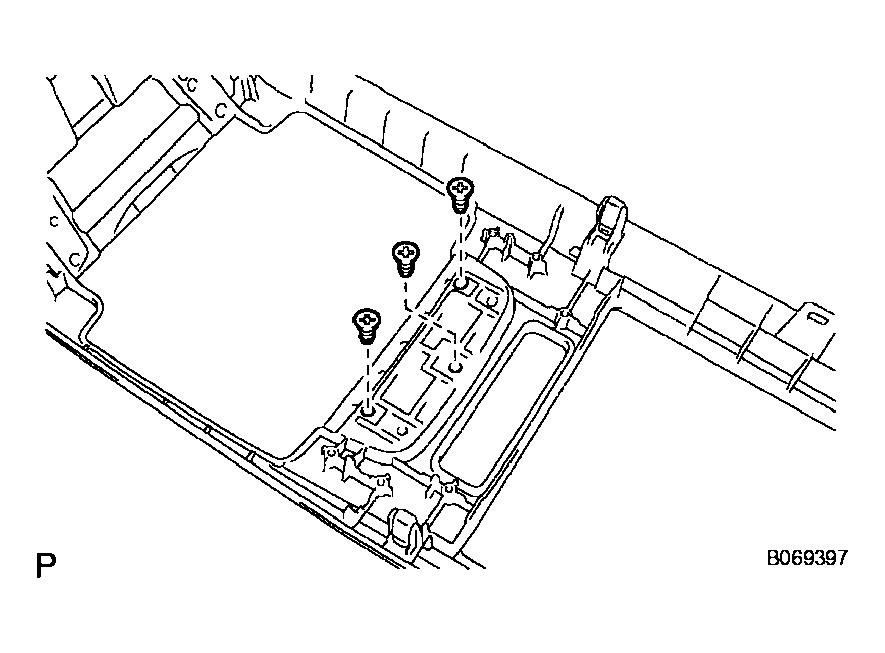

    Fig 1: Installing Console Upper Panel Garnish Rear
    G04093382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CONSOLE COMPARTMENT DOOR LOCK
    1. Install the 2 screws and the console compartment door lock.

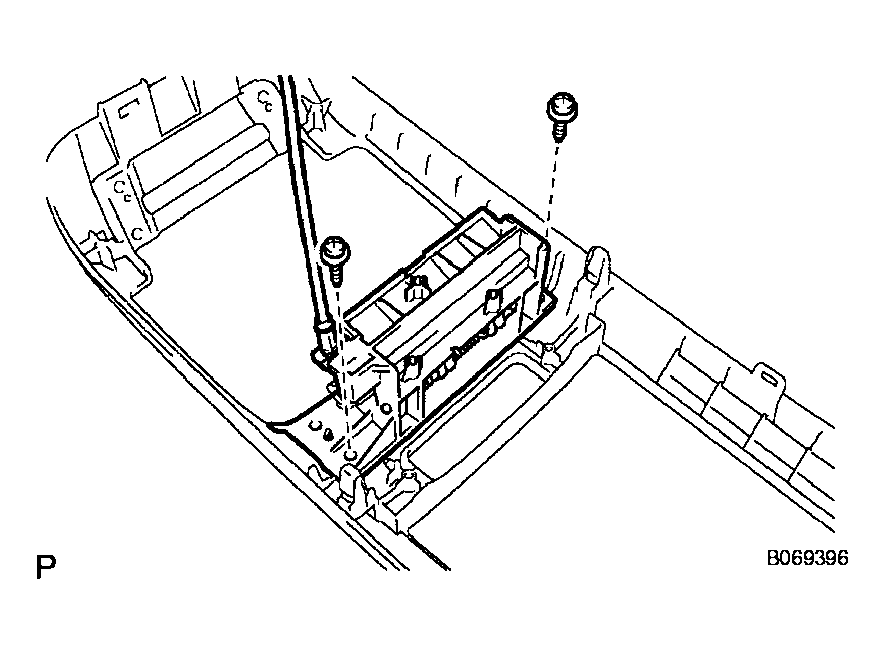

    Fig 2: Installing Console Compartment Door Lock
    G04093383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL CONSOLE BOX SUB-ASSEMBLY UPPER
    1. Engage the 2 claws.

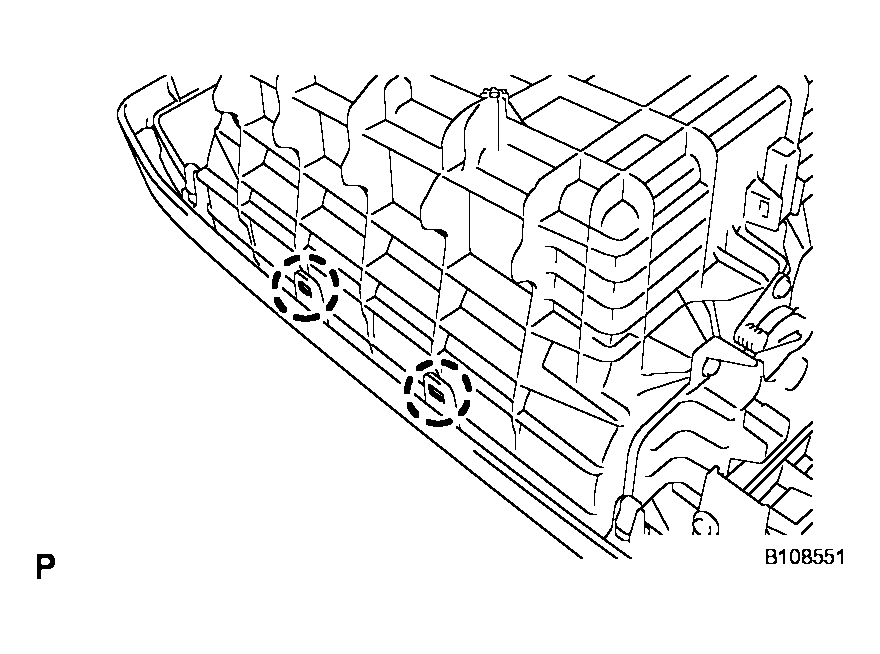

      Fig 3: Engaging Claws
      G04093384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws.

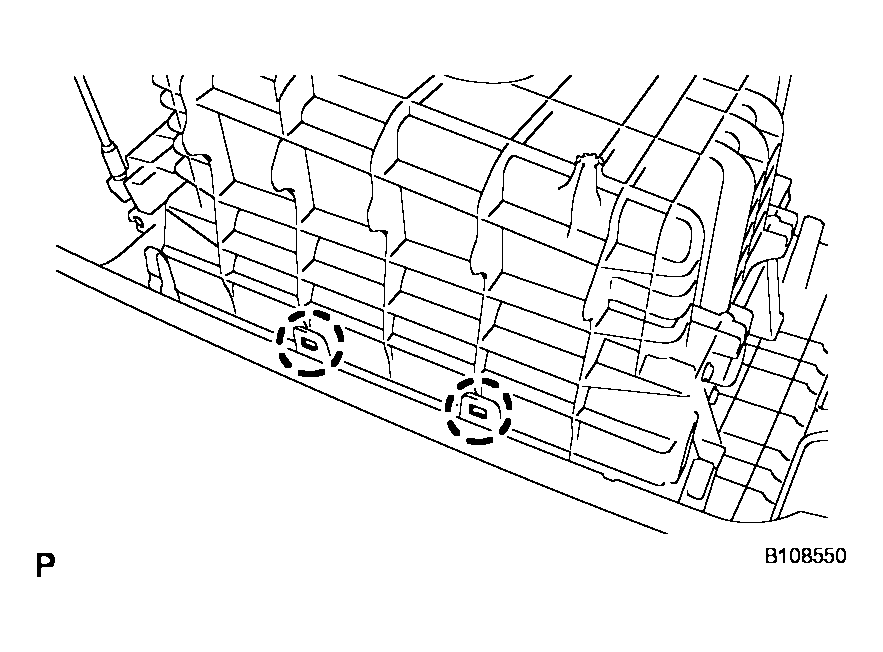

      Fig 4: Engaging Claws
      G04093385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 screws.

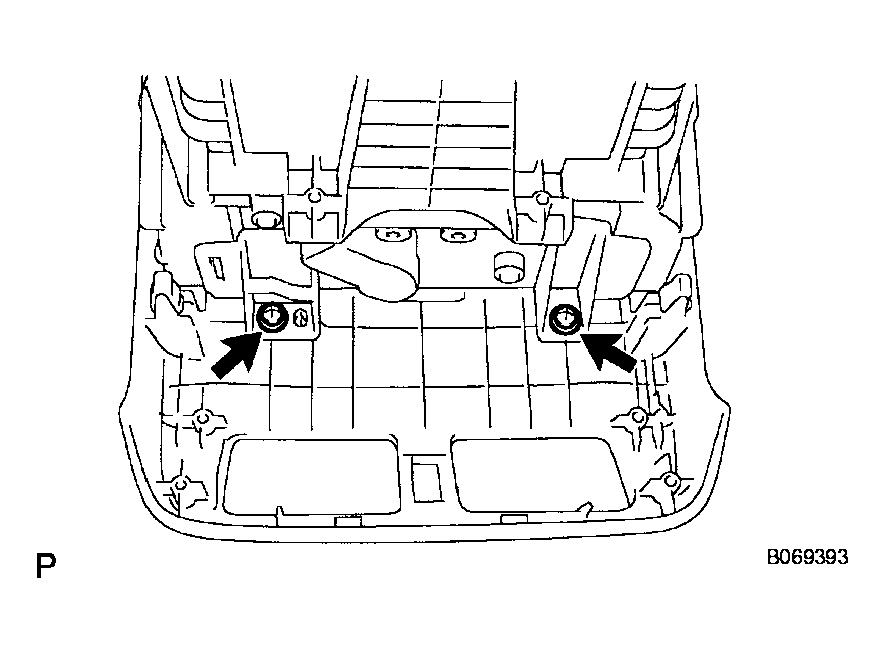

      Fig 5: Installing Screws
      G04093386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 4 screws and the console box sub-assembly upper.

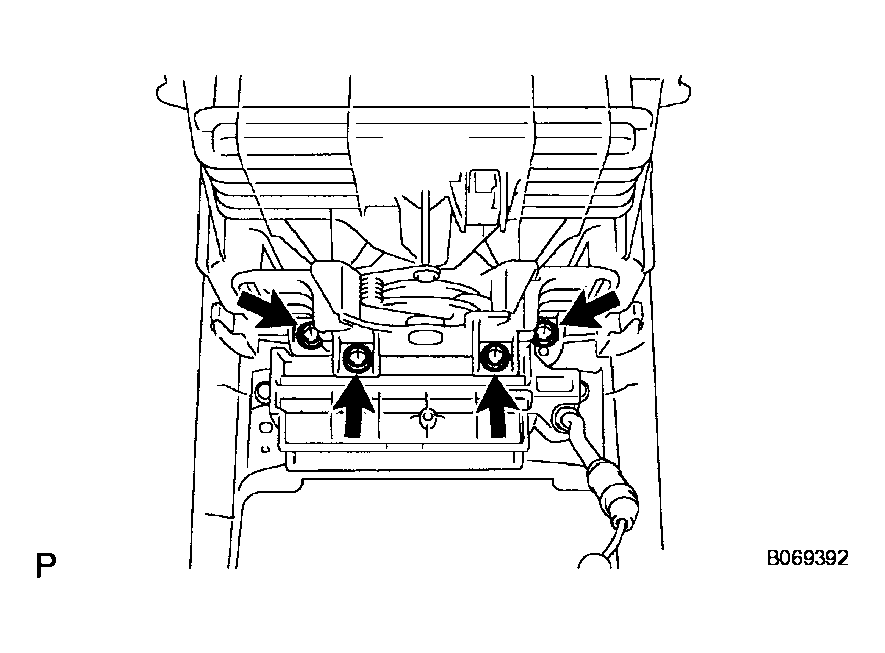

    Fig 6: Installing Console Box Sub-Assembly Upper
    G04093387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL CONSOLE BOX REGISTER ASSEMBLY
    1. Install the 6 screws and the console box register assembly.

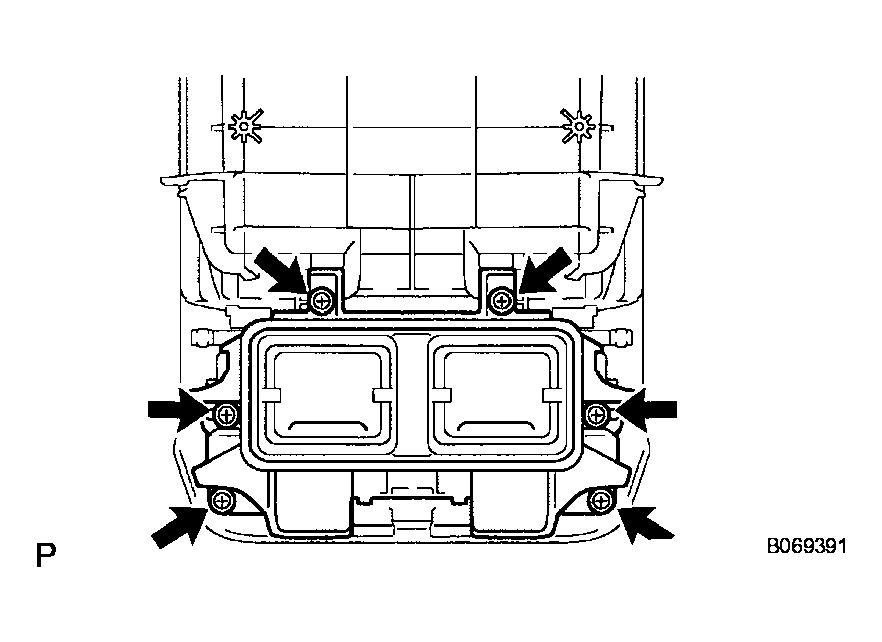

    Fig 7: Installing Console Box Register Assembly
    G04093388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL CONSOLE UPPER PANEL GARNISH FRONT
    1. Install the 4 screws and the console upper panel garnish front.
    Fig 8: Installing Console Upper Panel Garnish Front
    G04093389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL REAR CONSOLE BOX HOLDER CUP
    1. Install the 5 screws and the rear console box holder cup.

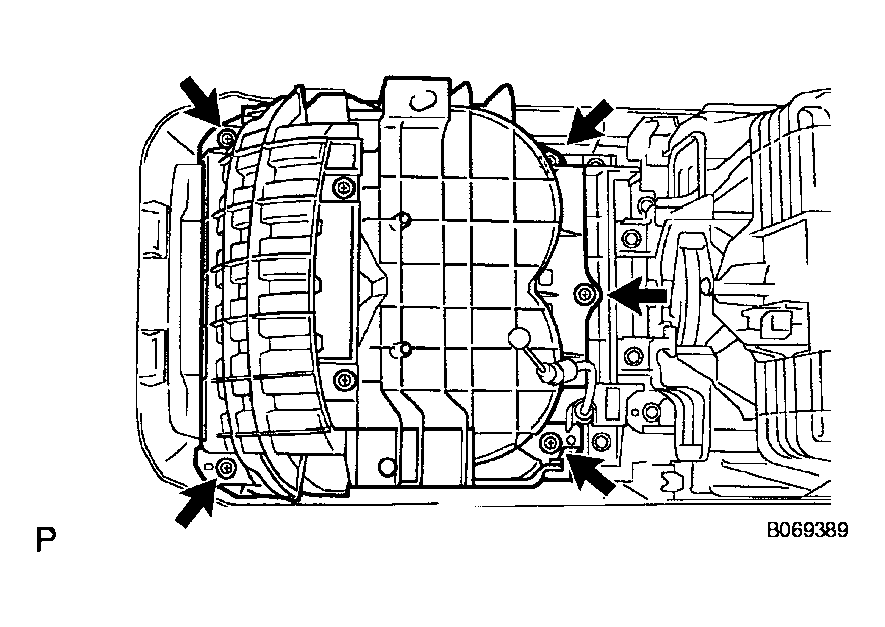

    Fig 9: Installing Rear Console Box Holder Cup
    G04093390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CONSOLE BOX LIGHT SUB-ASSEMBLY
    1. Connect each of the clamp and connectors, and install the console box light sub-assembly.

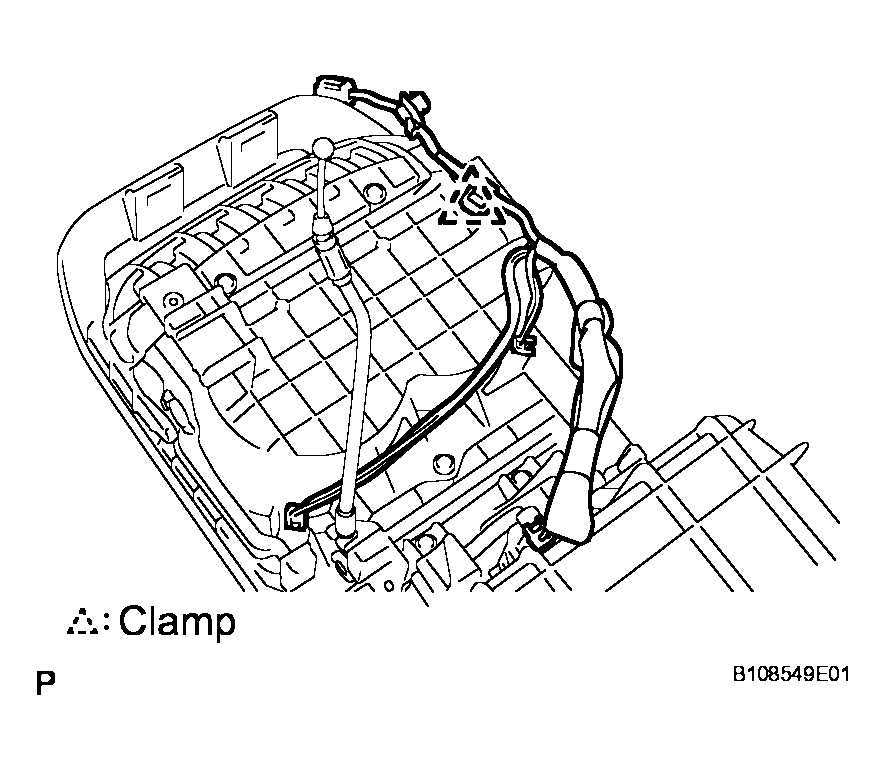

    Fig 10: Installing Console Box Light Sub-Assembly
    G04093391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL REAR CONSOLE BOX LOWER
    1. Engage the 4 clips and the claw.
    2. Install the 6 screws and the rear console box lower.

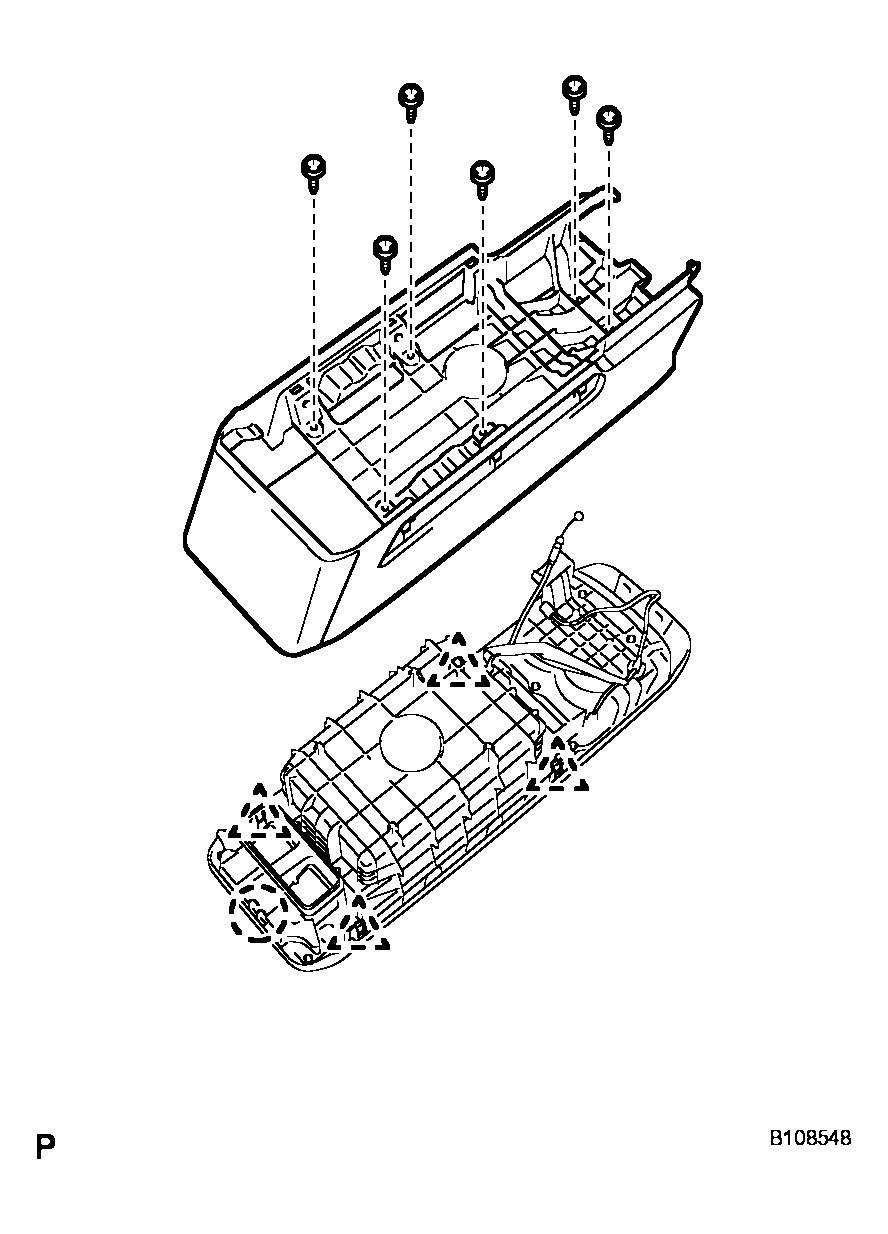

    Fig 11: Installing Rear Console Box Lower
    G04093392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL BOX NO. 1 SIDE PANEL
    1. Engage the 8 claws and install the box No.1 side panel.
  10. INSTALL CONSOLE BOX CUP HOLDER
    1. Install the console box cup holder.
    Fig 12: Installing Box No.1 Side Panel
    G04093393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
