RX 330 AWD
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control System (3MZ-FE)
›
SFI System
›
Fuel Pump Control Circuit
›
Wiring Diagram

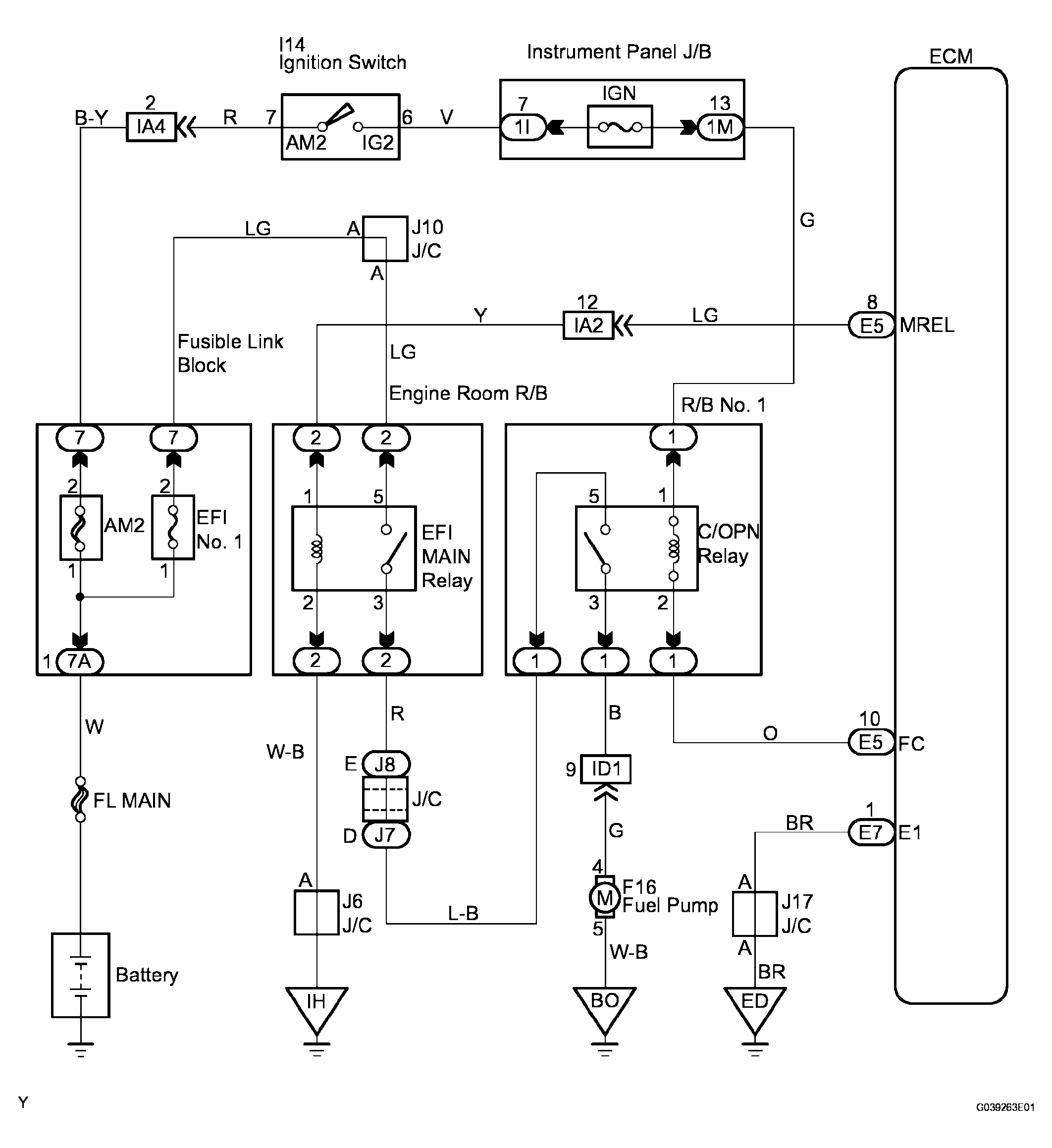

Fuel Pump Control Circuit: Wiring Diagram
Fig 1: Identifying Fuel Pump Control Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
