Fuel Tank: Components

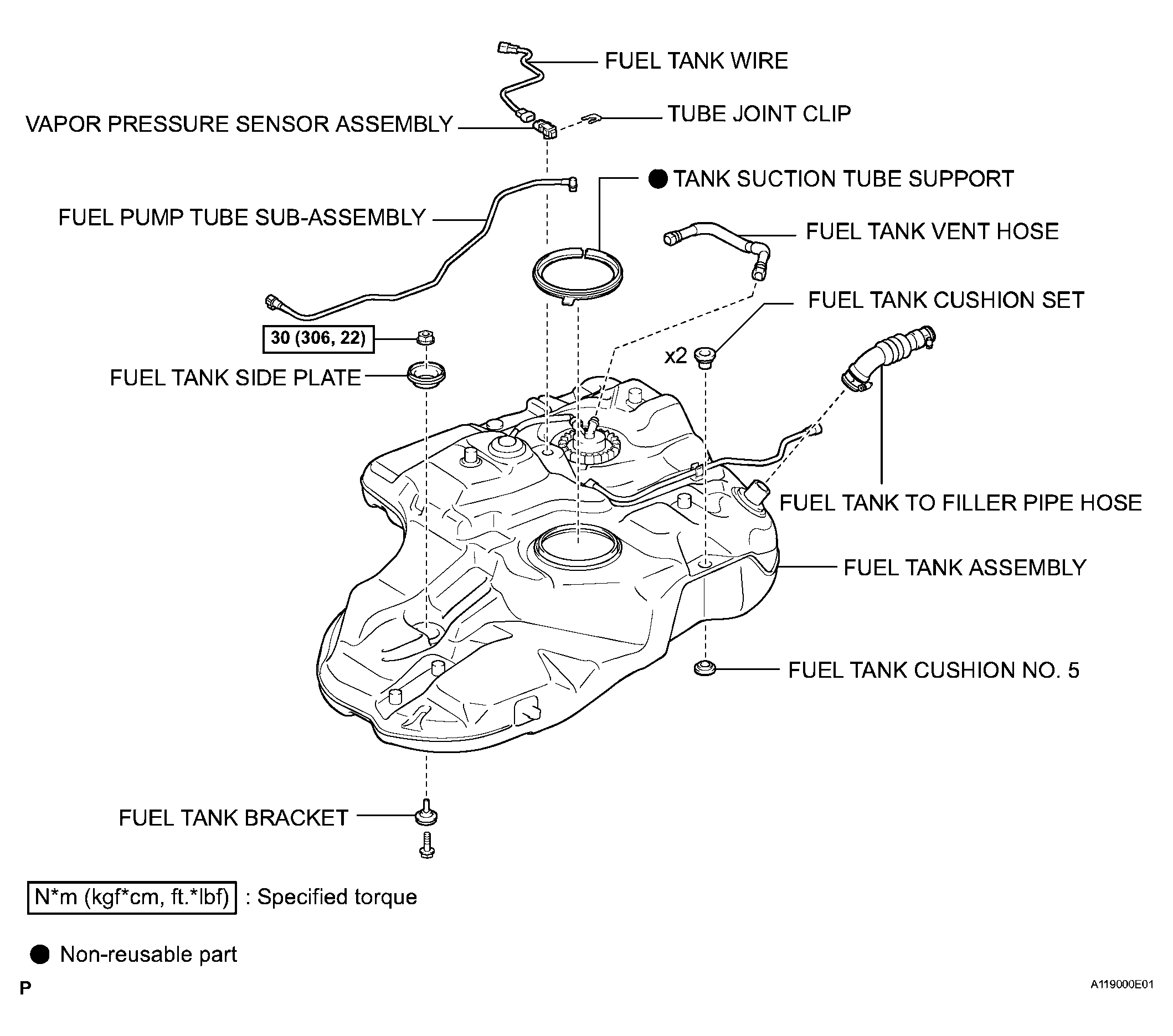

Fig 1: Exploded View Of Fuel Tank Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

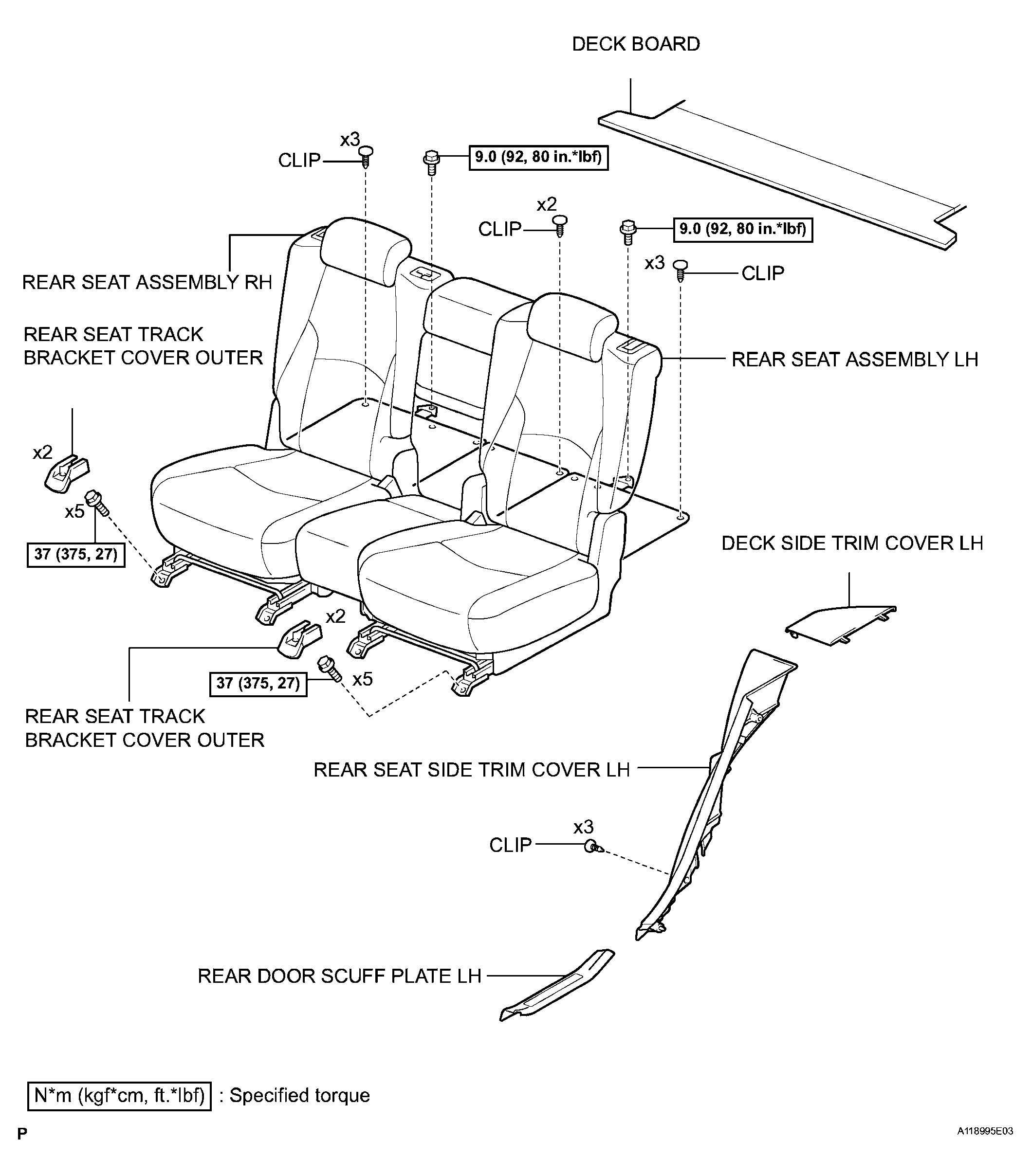

Fig 2: Exploded View Of Fuel Tank Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

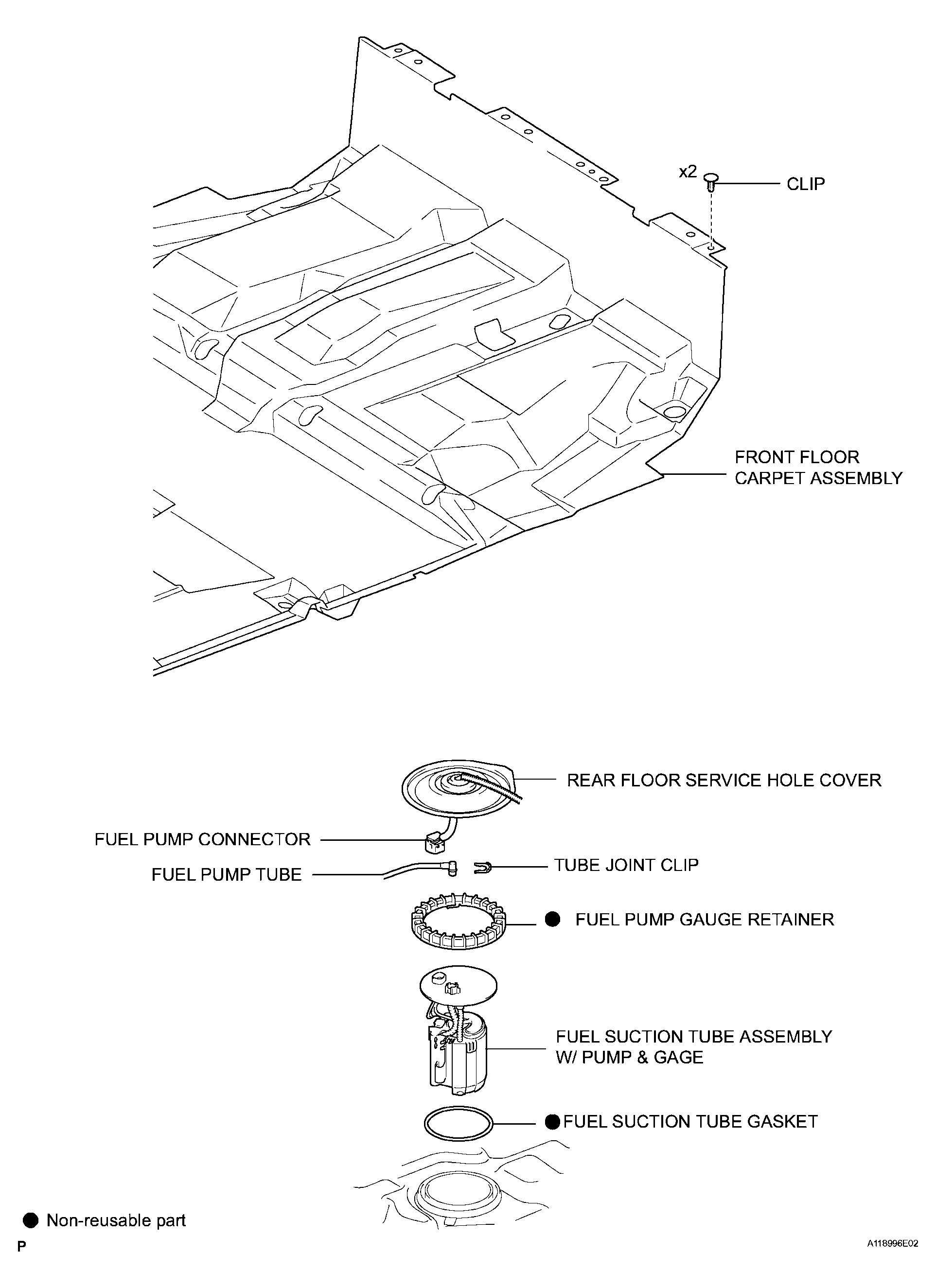

Fig 3: Exploded View Of Fuel Tank Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

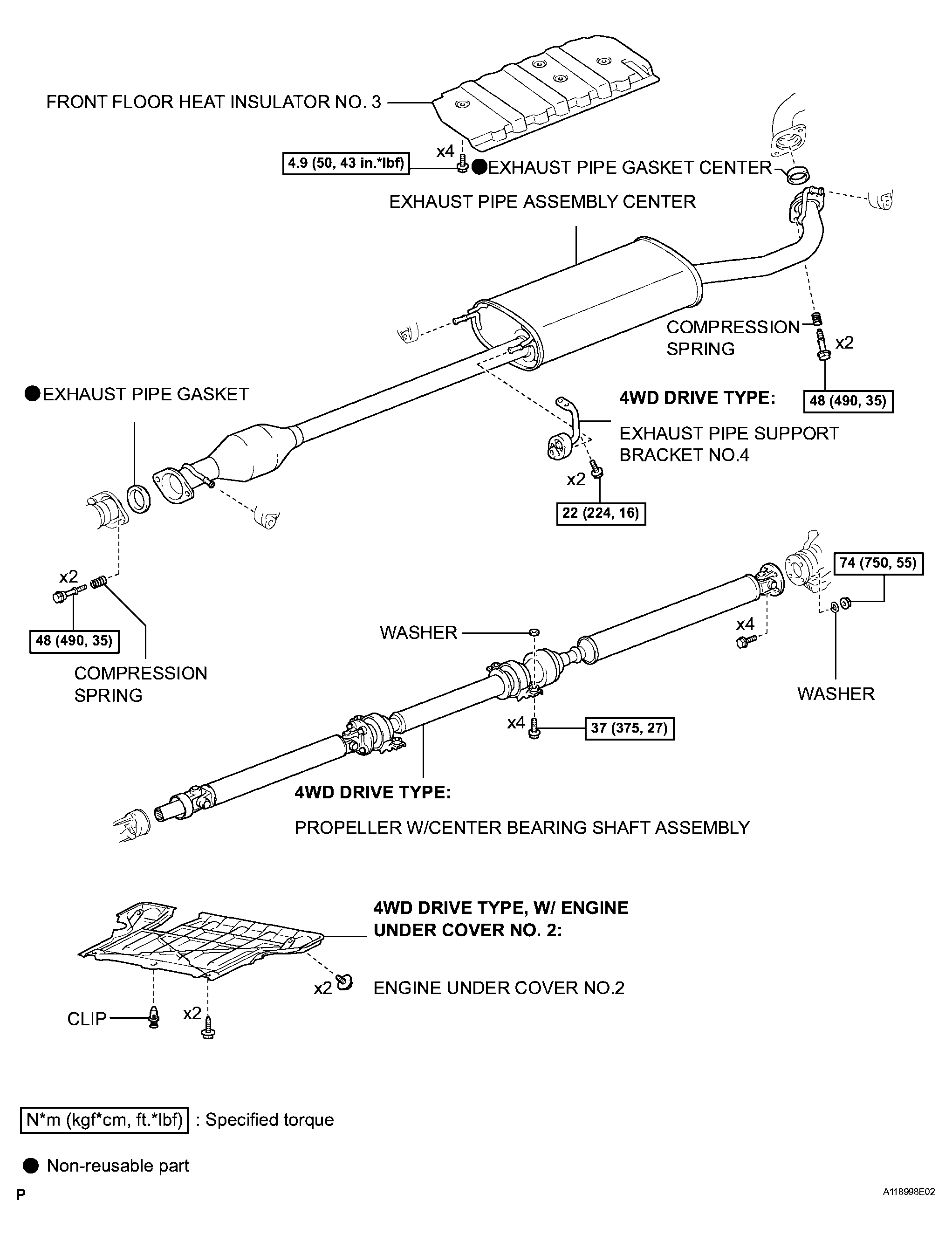

Fig 4: Exploded View Of Fuel Tank Components With Torque Specifications (4 Of 5)

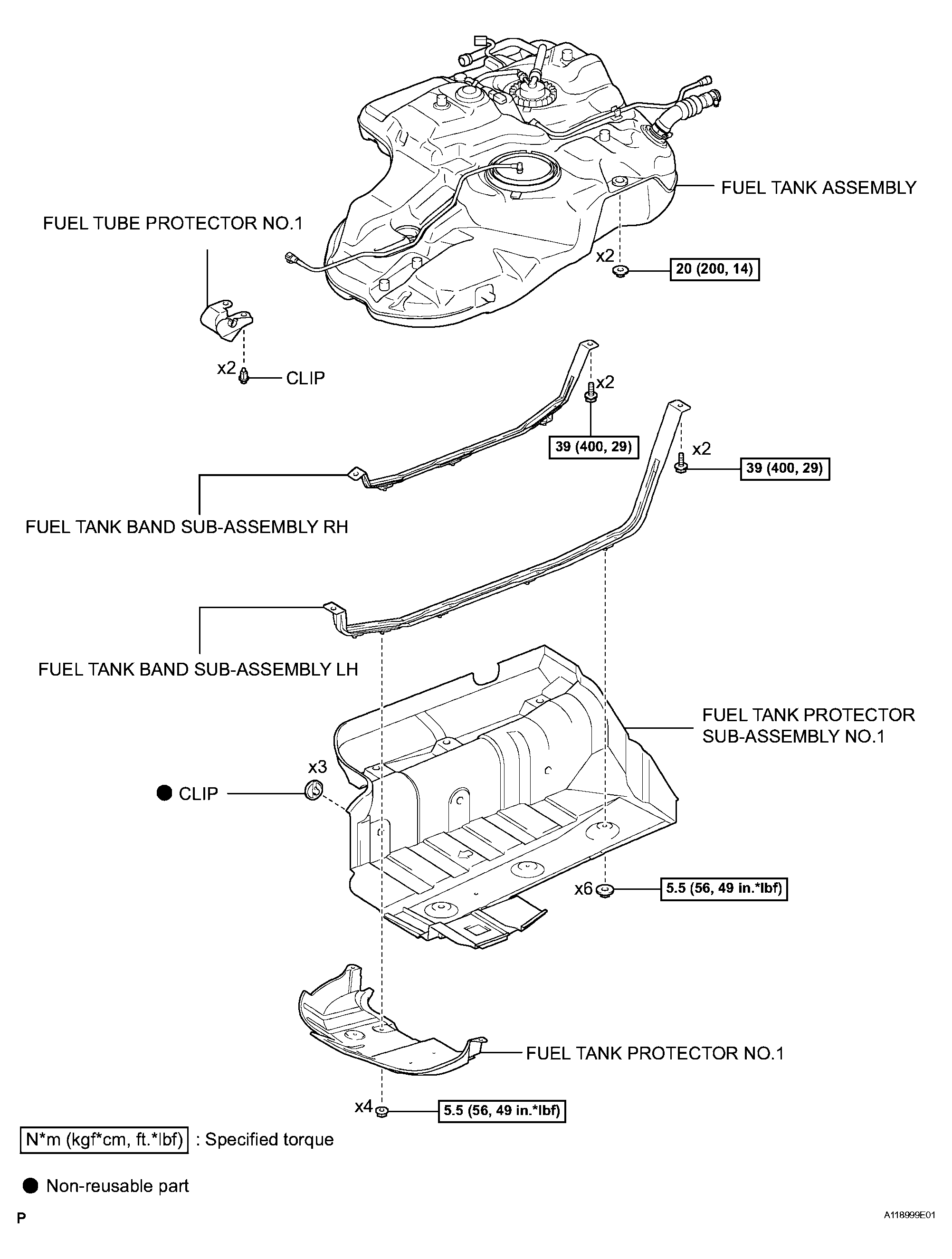

Fig 5: Exploded View Of Fuel Tank Components With Torque Specifications (5 Of 5)
