ACIS Control Circuit: Wiring Diagram

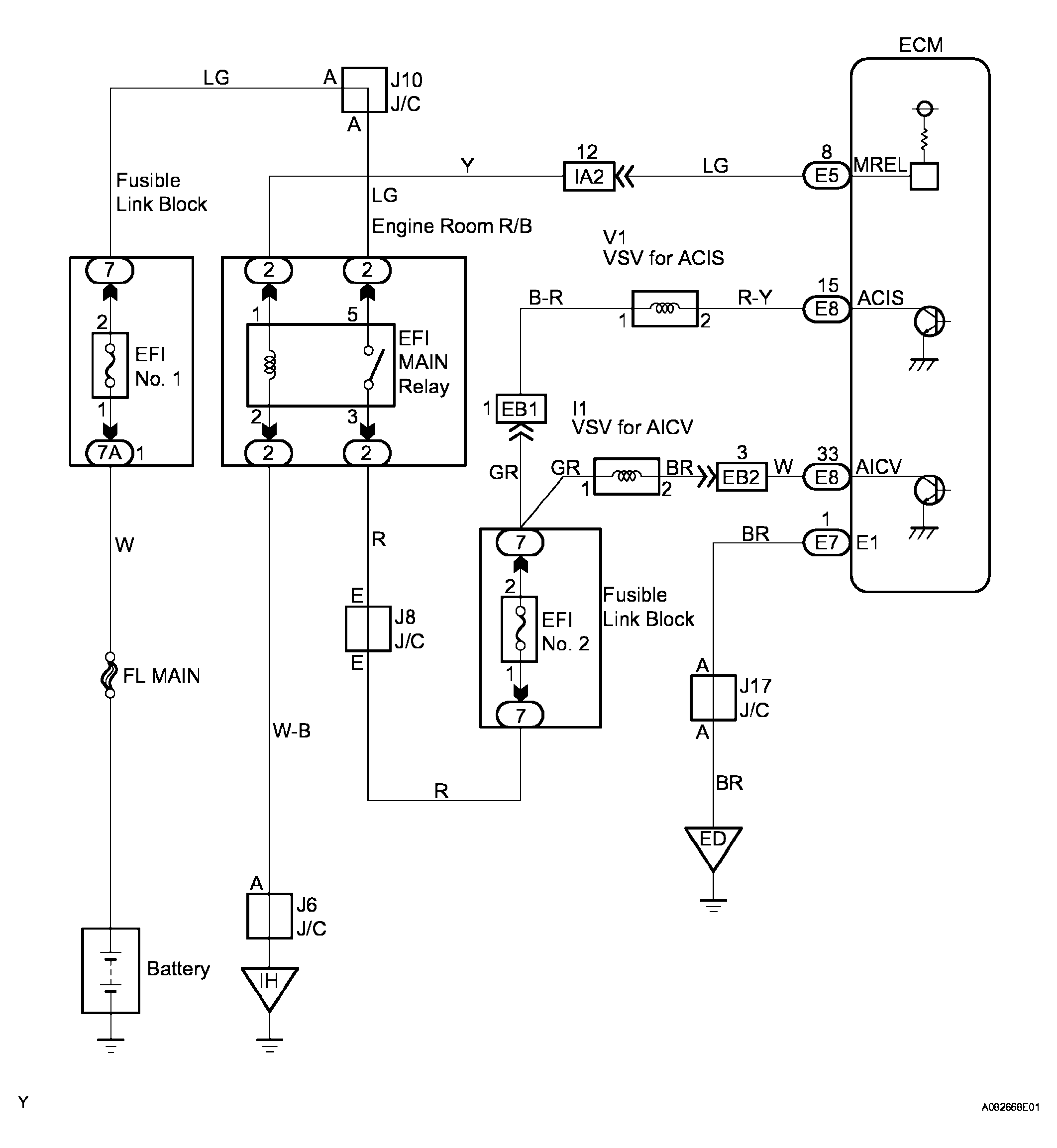

Fig 1: Identifying ACIS Control Wiring Diagram
G04087471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
