Lexus
›
2006
›
RX 330 AWD
›
Repair and Diagnosis
›
Engine Performance
›
Remove, Overhaul & Install
›
Engine Control System (3MZ-FE)
›
SFI System
›
ECM Power Source Circuit
›
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram

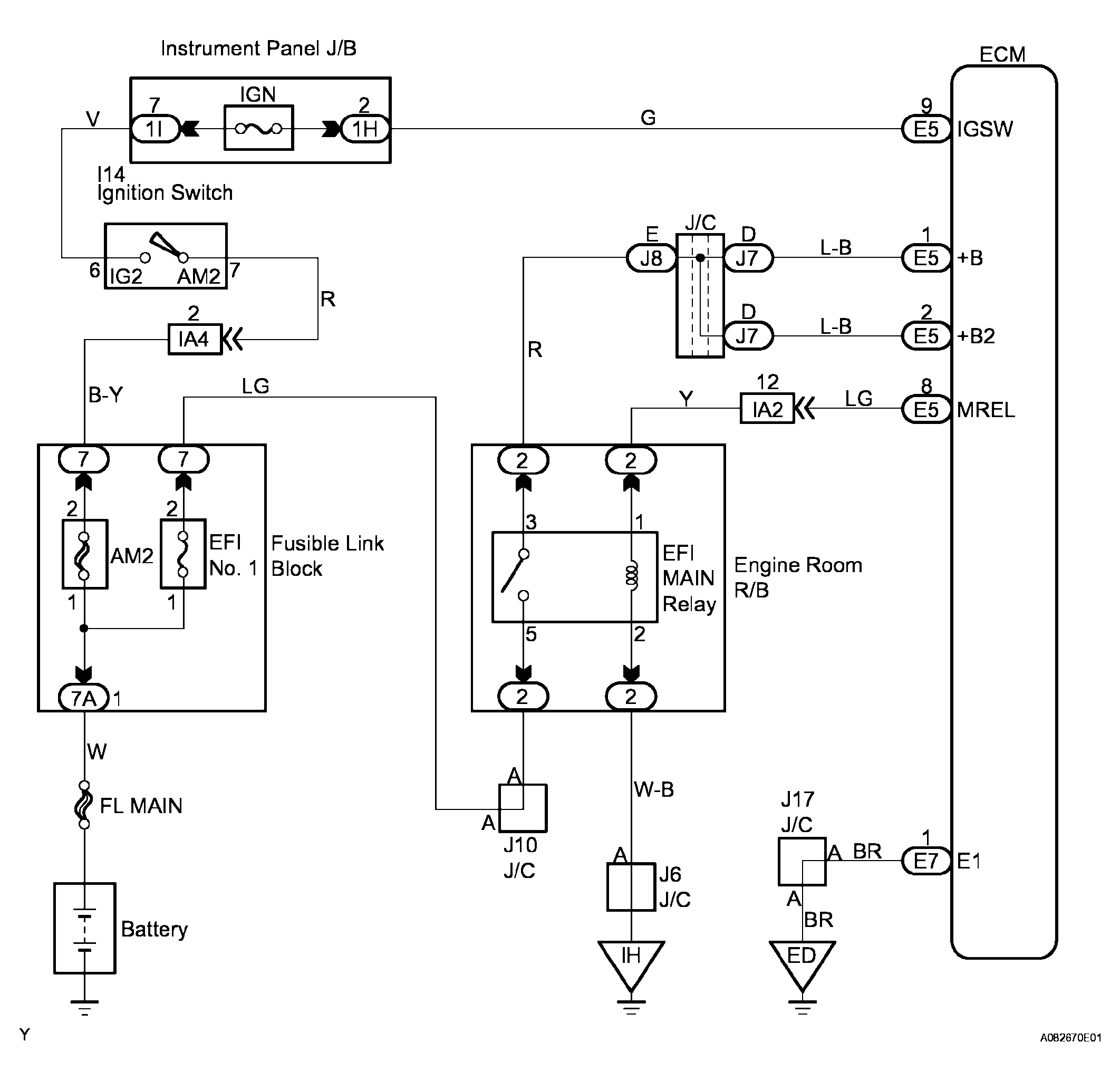

Fig 1: ECM Power Source Wiring Diagram
