Steering Column ASSY: Components

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

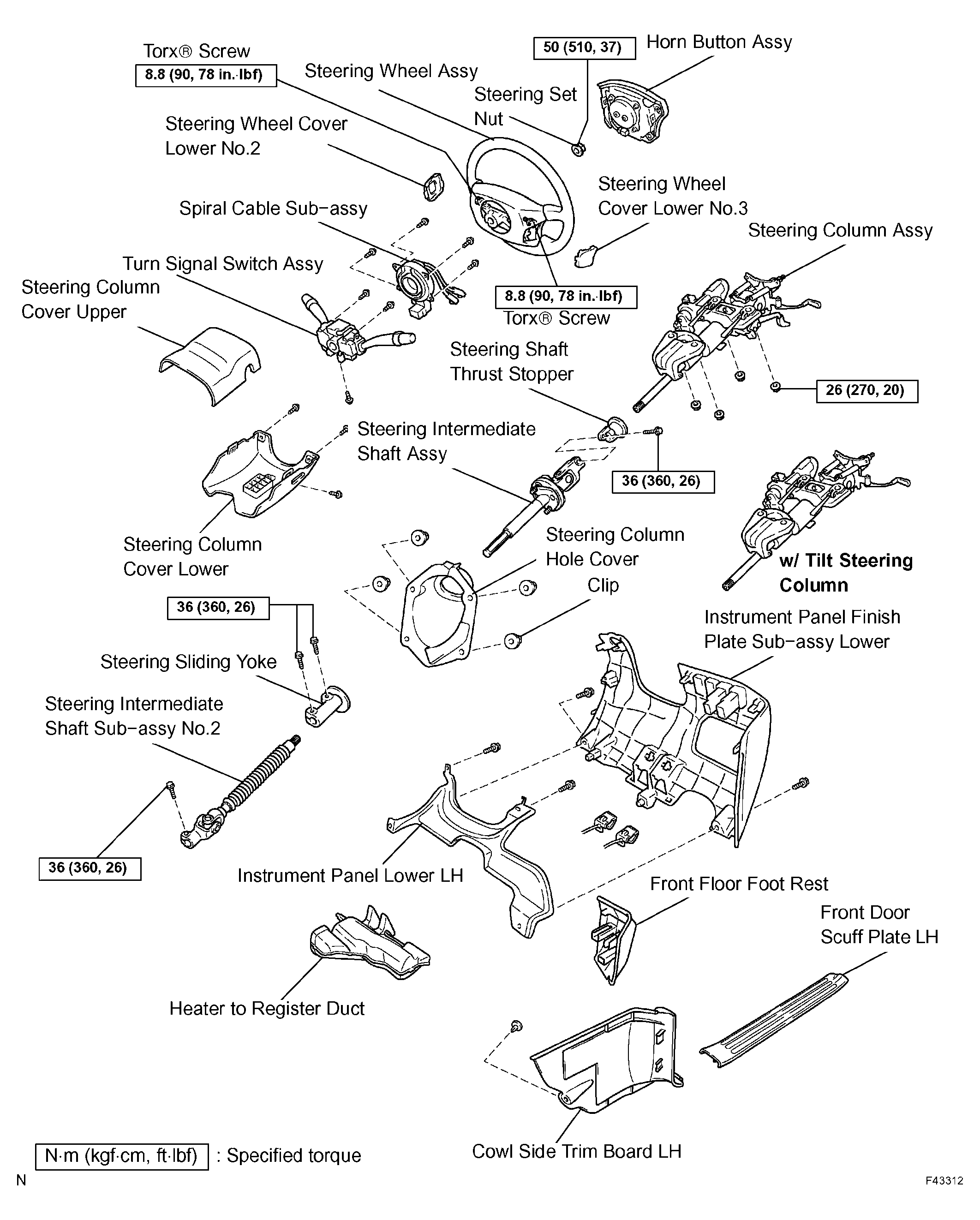

Fig 1: Identifying Steering Column Assy Components (1 Of 2)
G04338906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

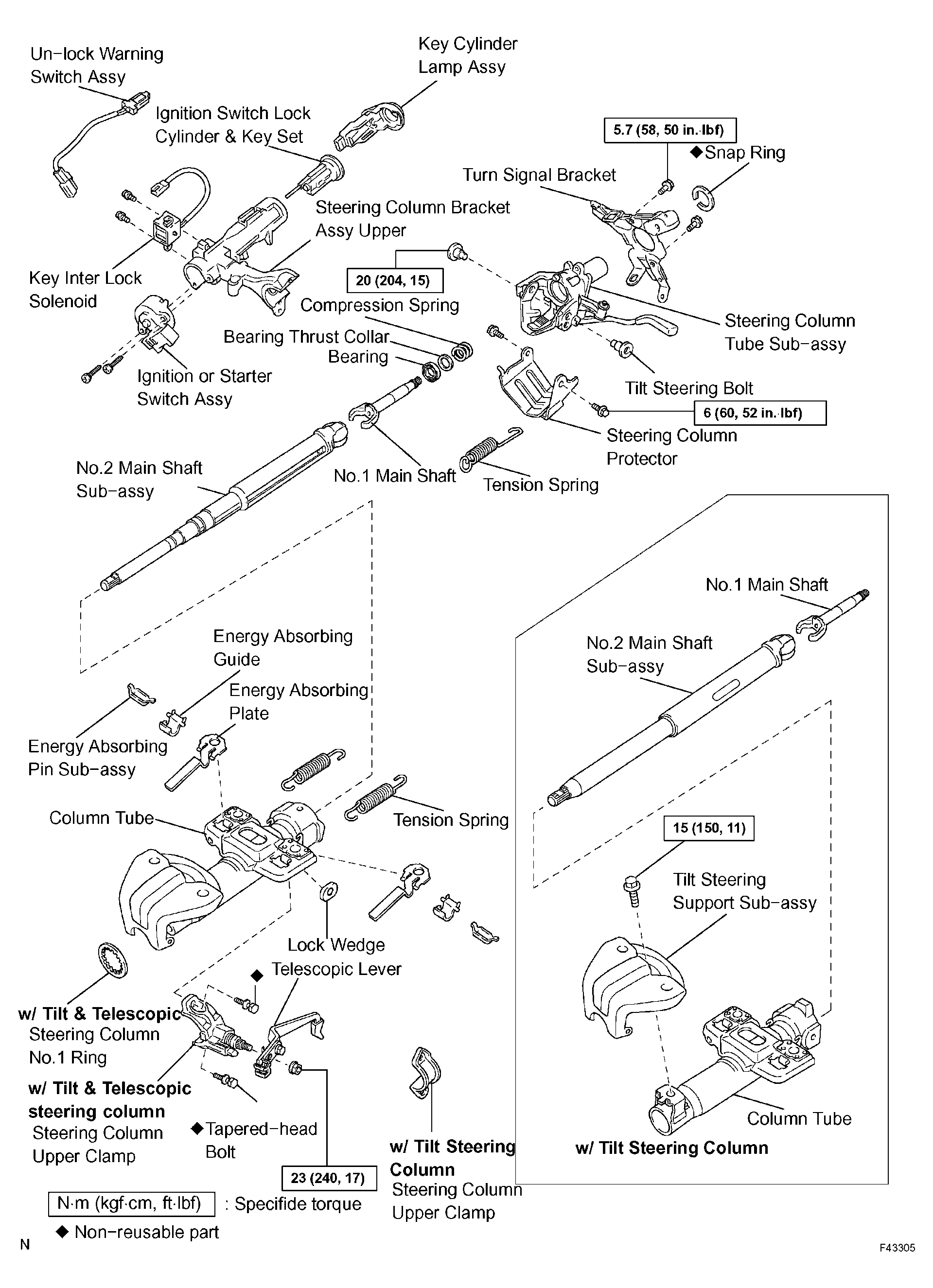

Fig 2: Identifying Steering Column Assy Components (2 Of 2)
G04338907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
