Automatic Transmission (U151F)
›
Automatic Transaxle System
›
Pattern Select Switch Circuit
›
Wiring Diagram
Pattern Select Switch Circuit: Wiring Diagram

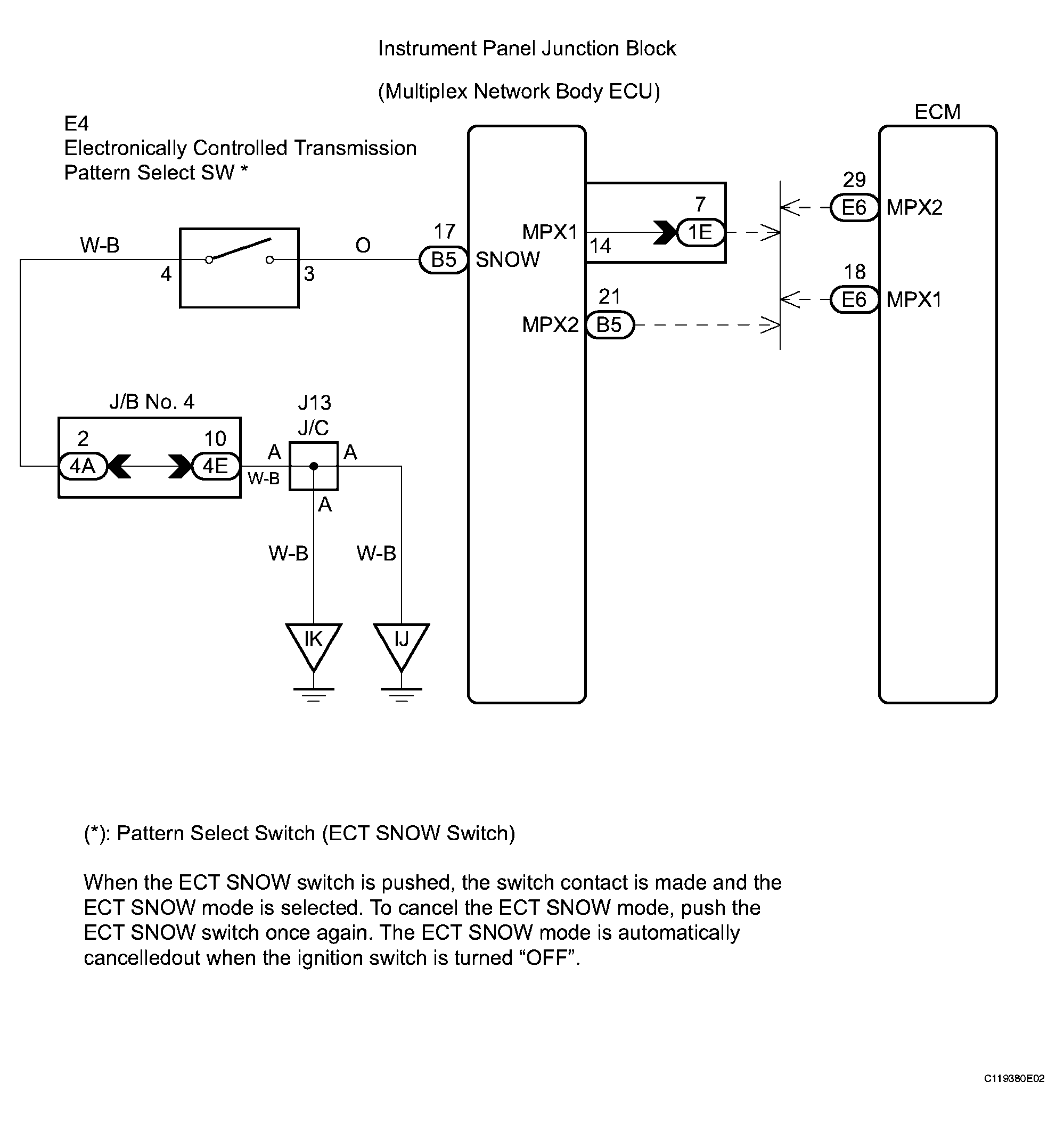

Fig 1: Wiring Diagram - Pattern Select Switch Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
