Direct Clutch: Reassembly

INSTALL OVERDRIVE DIRECT CLUTCH O-RING
1. Coat an O-ring with ATF, and install it to the direct clutch drum.
  NOTE: Make sure that the O-ring is not twisted or pinched when it is installed.
Fig 1: Installing Overdrive Direct Clutch O-Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OVERDRIVE DIRECT CLUTCH DRUM SUB-ASSEMBLY
1. Coat the direct clutch drum with ATF, and install it to the intermediate shaft.
  NOTE:
  - Be careful not to damage the O-ring.
  - Be careful not to damage the lip of the direct clutch drum.

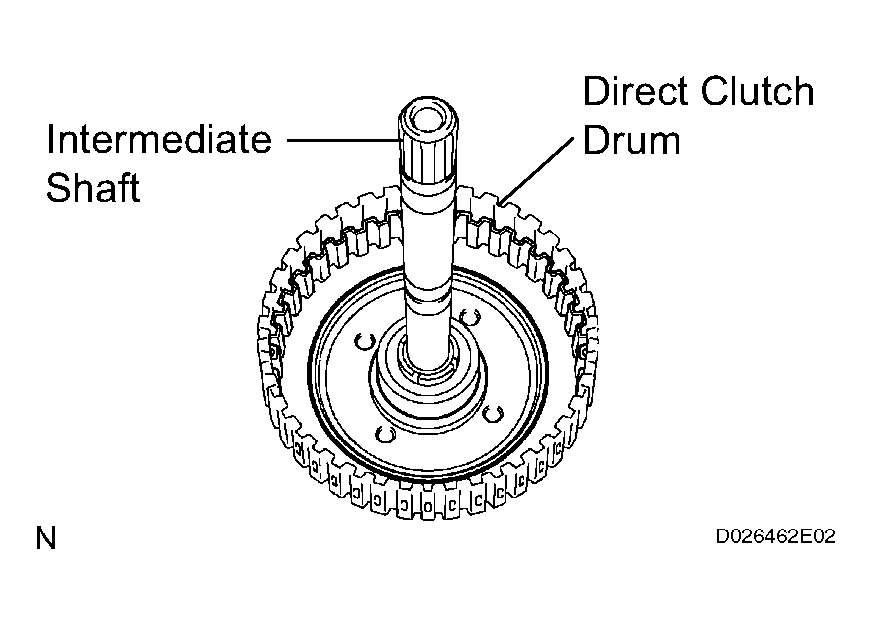

Fig 2: Installing Overdrive Direct Clutch Drum Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OVERDRIVE DIRECT CLUTCH PISTON
1. Coat the overdrive direct clutch piston with ATF, and install it to the direct clutch drum.

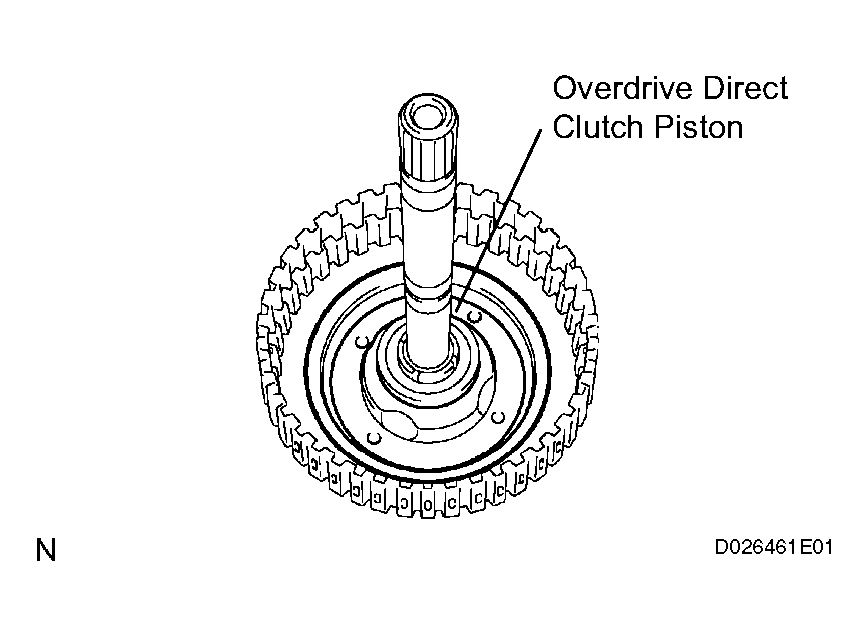

Fig 3: Installing Overdrive Direct Clutch Piston
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OVERDRIVE CLUTCH RETURN SPRING SUB-ASSEMBLY
1. Install the overdrive clutch return spring to the direct clutch drum.
  NOTE: Installing the spring sub-assembly, check that all of the springs are fit in piston correctly.

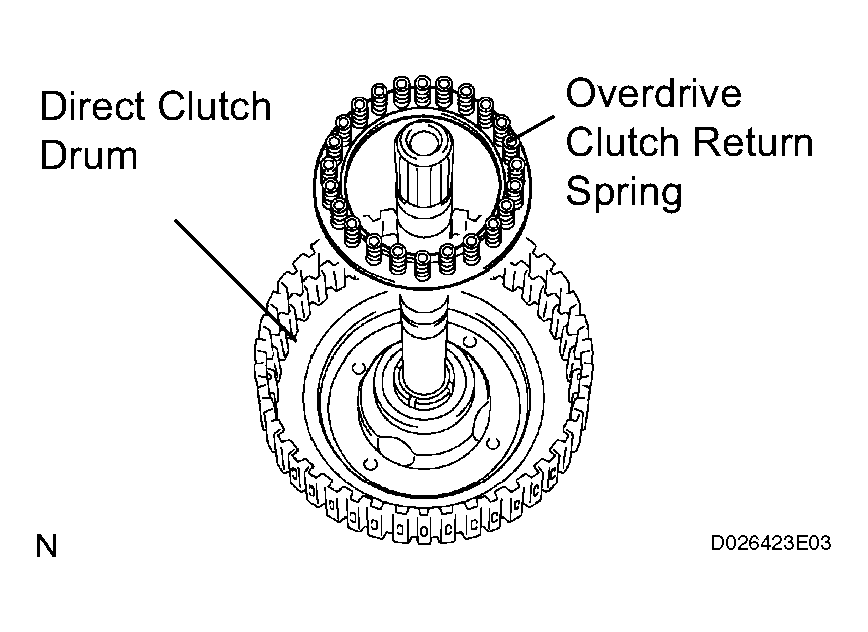

  Fig 4: Installing Overdrive Clutch Return Spring To Direct Clutch Drum
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the clutch balancer with ATF.
3. Install the clutch balancer to the direct clutch drum.
  NOTE:
  - Be careful not to damage the lip of the direct clutch balancer.
  - Make sure that the lip of the seal is not pinched and that it has no other defects.
  - Apply sufficient ATF to the sealing lip before installing the clutch balancer.

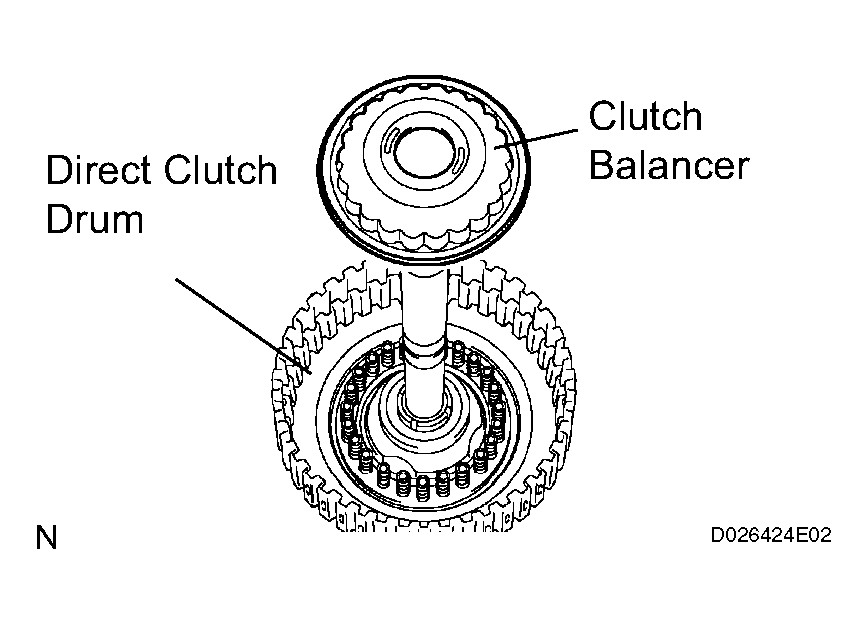

  Fig 5: Installing Clutch Balancer To Direct Clutch Drum
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Place SST on the clutch balancer and compress the overdrive clutch return spring with a press.
  SST 09387-00020

  Fig 6: Placing SST On Clutch Balancer And Compress Overdrive Clutch Return Spring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a snap ring expander, install the snap ring to the direct clutch drum.
6. Be sure that the end gap of the snap ring is not aligned with the spring retainer claw.
  NOTE:
  - Stop the press when the spring seat is lowered to the place 1 to 2 mm (0.039 to 0.078 in.) from the snap ring groove.
  - This prevents the spring seat from being deformed.
  - Do not expand the snap ring excessively.
7. Set the end gap of the snap ring in the piston shown in the illustration.
  NOTE: The end gap of the snap ring should not align with any of the stoppers.

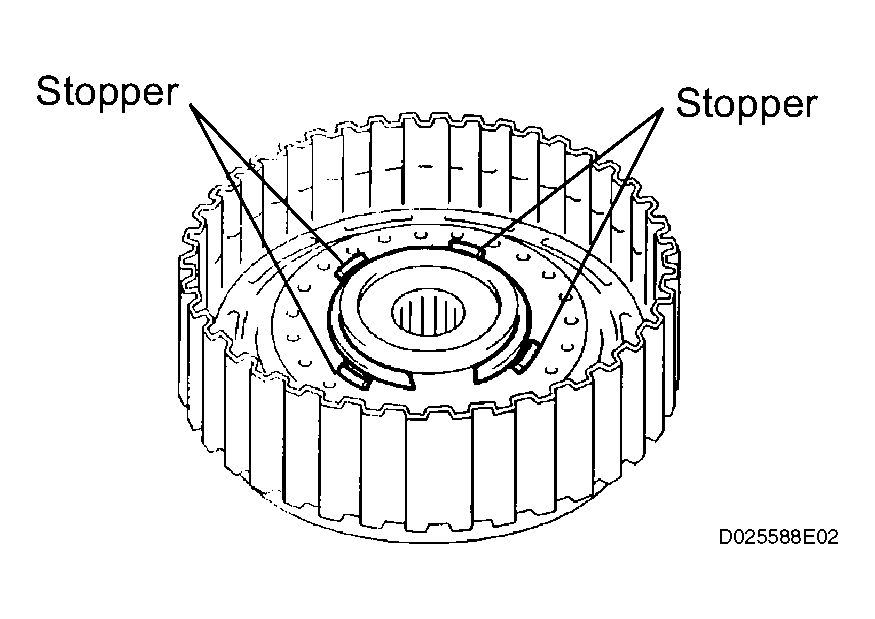

Fig 7: Setting End Gap Of Snap Ring In Piston
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OVERDRIVE DIRECT CLUTCH DISC
1. Coat the 4 discs with ATF.
2. Install the 4 plates, 4 discs and flange to the intermediate shaft.
  NOTE: Make sure that the plates, discs, and flange are installed as shown in the illustration.

  Fig 8: Installing Plates, Discs And Flange To Intermediate Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a screwdriver, install the snap ring.
4. Check that the end gap of the snap ring is not aligned with one of the cutouts.
  NOTE: The snap ring should be fully engaged in the groove of the drum.

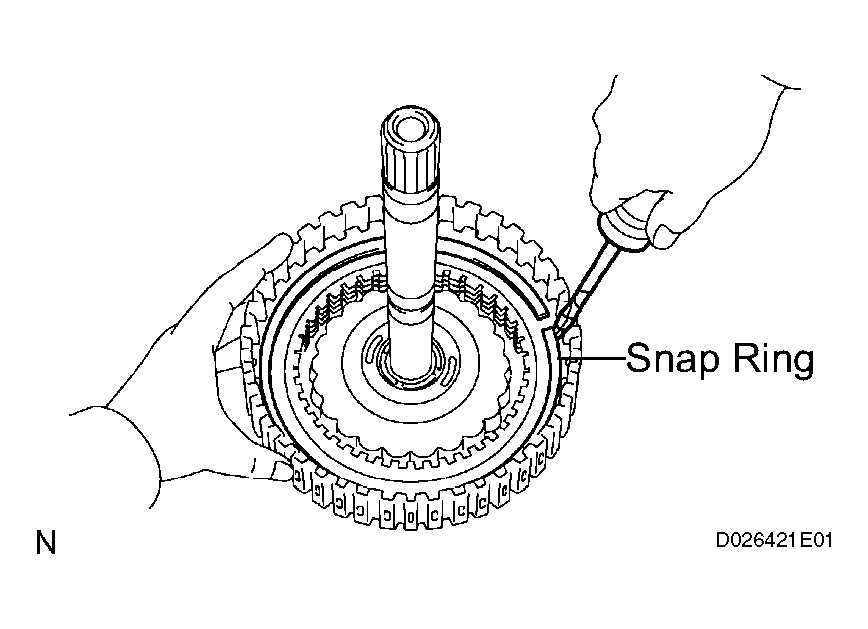

Fig 9: Installing Snap Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DIRECT MULTIPLE DISC CLUTCH DISC
1. Coat the 3 disc with ATF.

  Fig 10: Coating Direct Multiple Disc Clutch Disc
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the cushion plate, 3 plates, 3 disc and flange to the intermediate shaft.
  NOTE:
  - Install the cushion plate with the mark on the white surface facing to plate.
  - Be careful about the order of discs, plate and flange assembly.
3. Using a screwdriver, install the snap ling.
4. Check that the end gap of the snap ling is not aligned with one of the cutouts.
  NOTE: The slap ring should be fixed certainly in the groove of the drum.

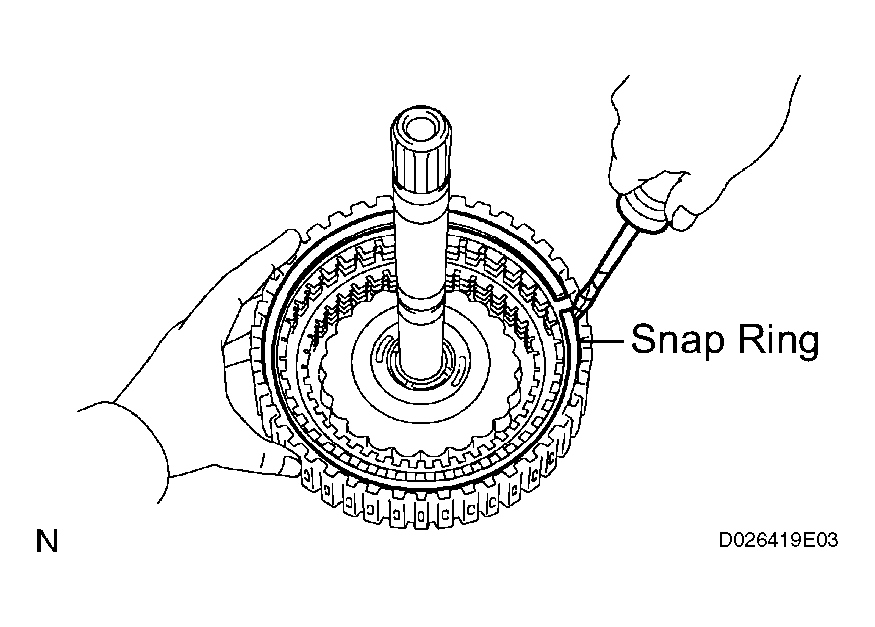

Fig 11: Installing Snap Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
