Shift Lever: Components

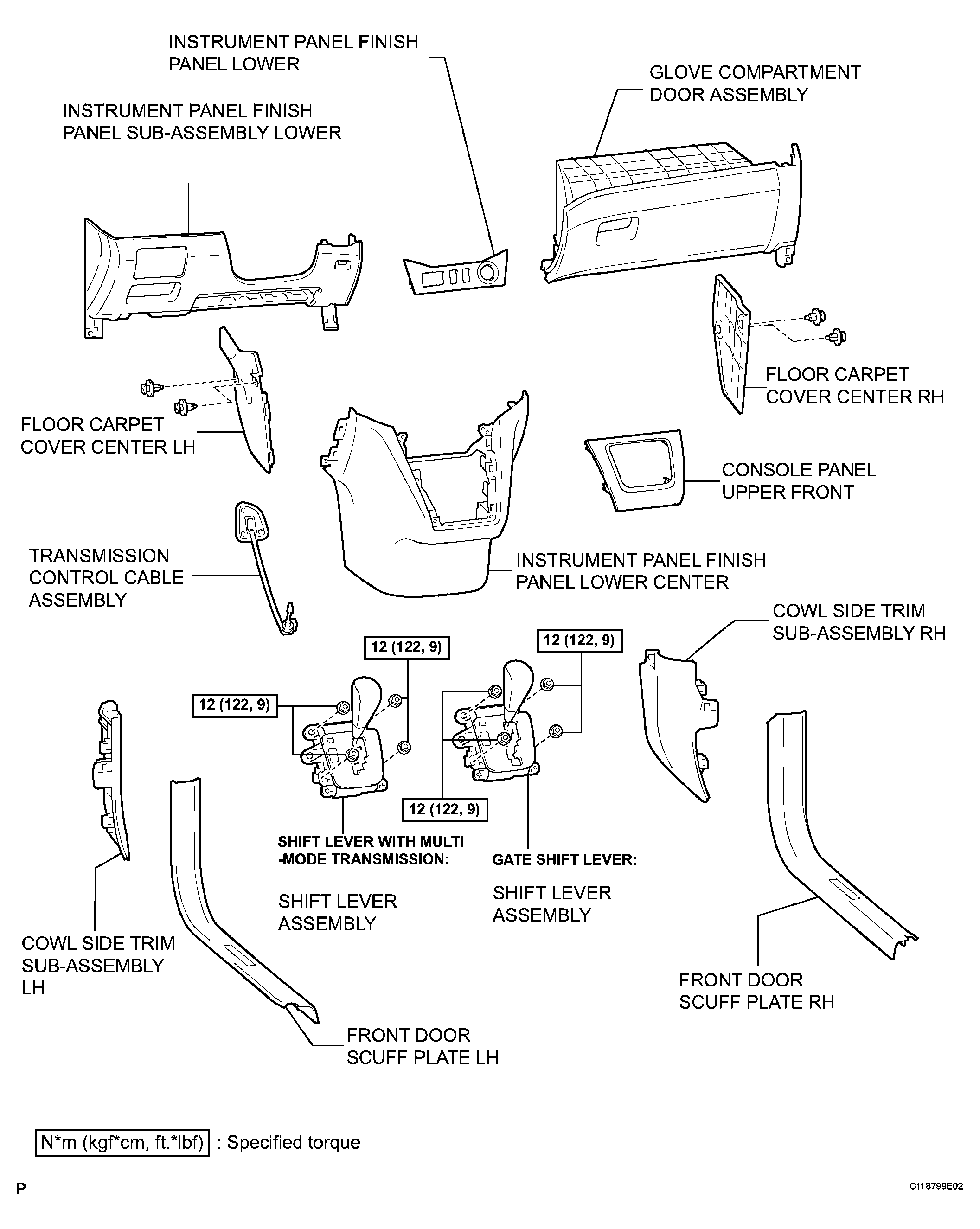

Fig 1: Shift Lever Replacement Components With Torque Specifications (1 Of 2)
G04089239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

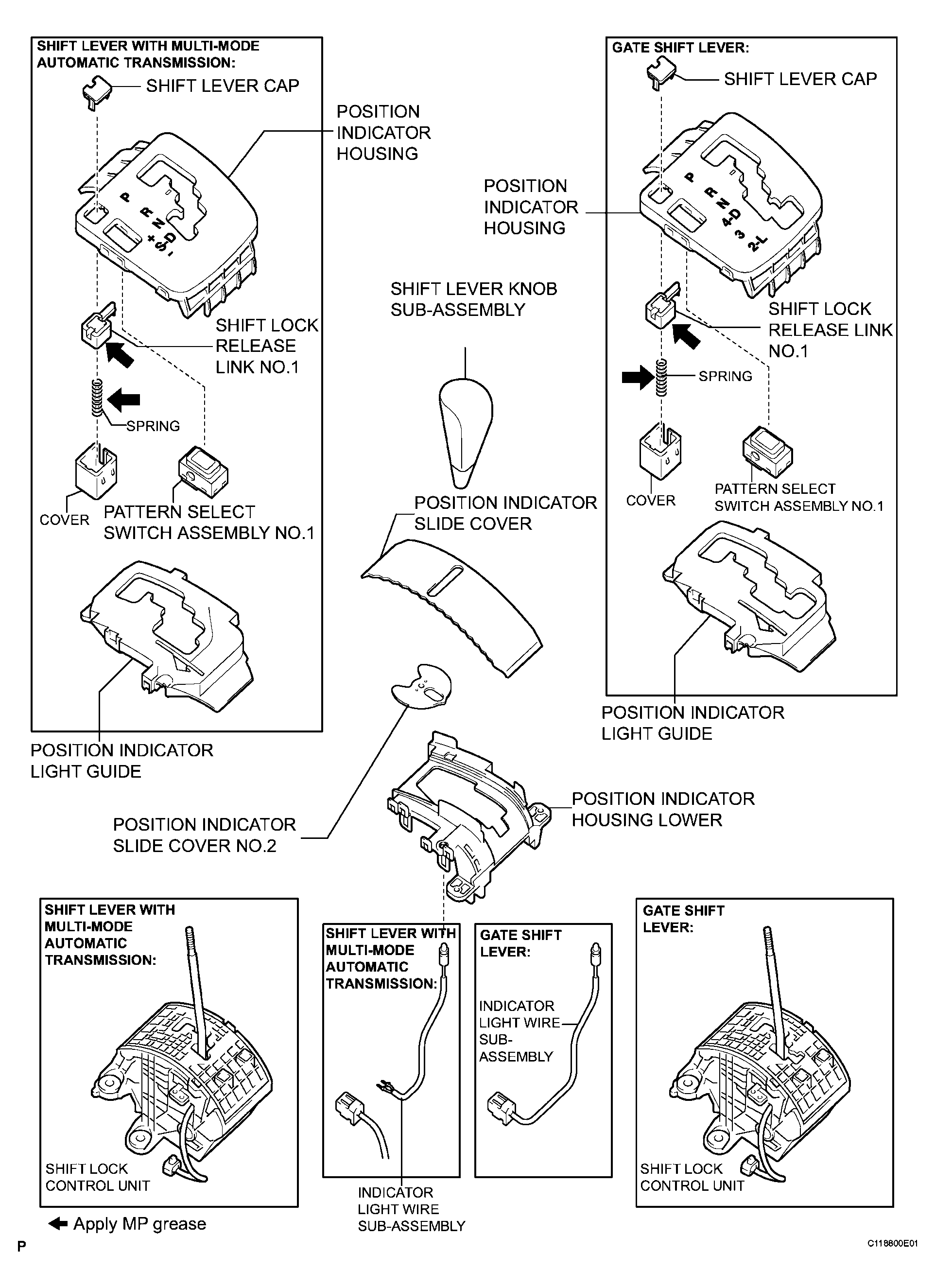

Fig 2: Identifying Shift Lever Components (2 Of 2)
G04089240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
