Transmission Control Cable Assembly: Components

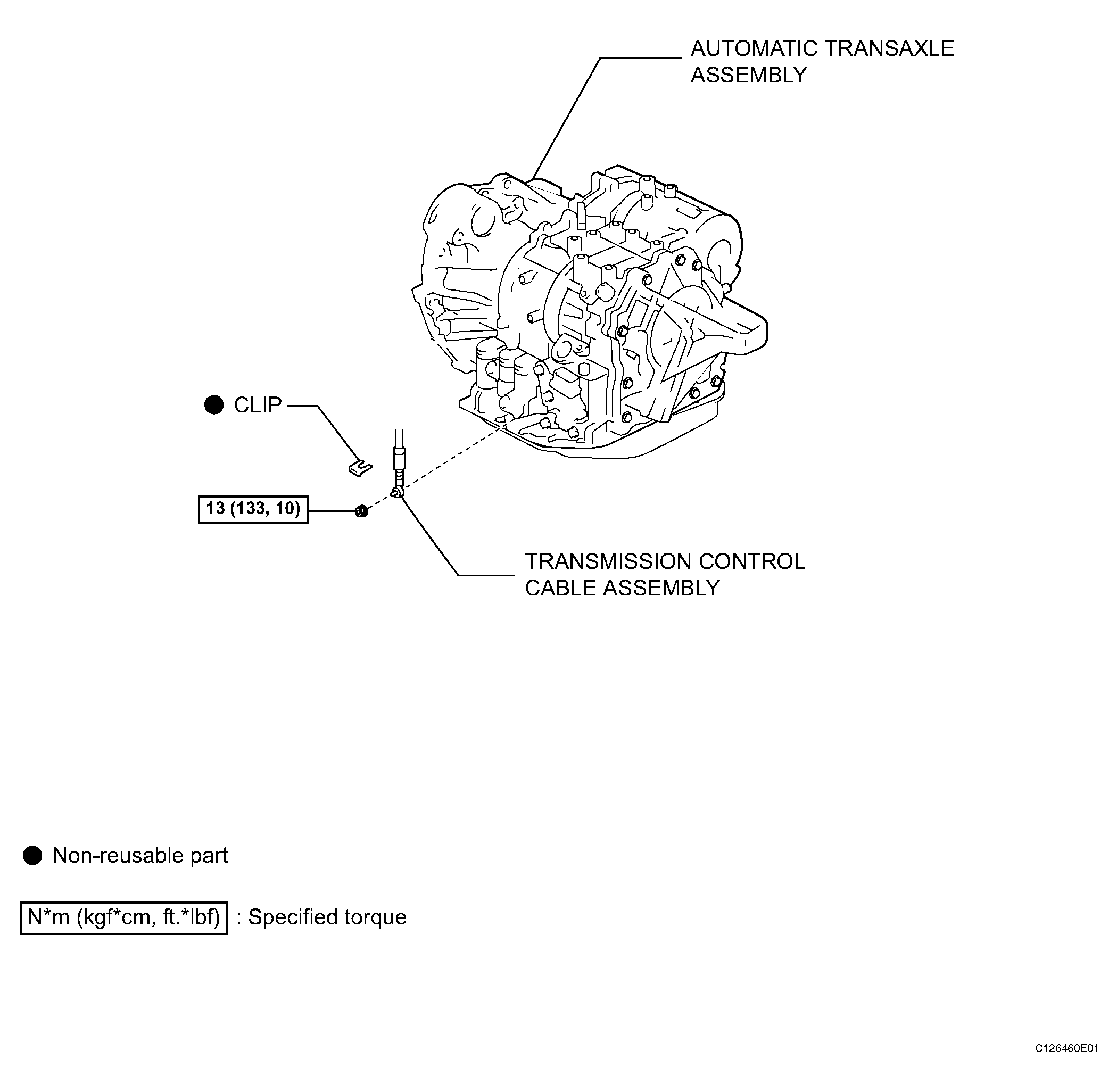

Fig 1: Transmission Control Cable Assembly Replacement Components With Torque Specifications (1 Of 2)
G04089187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

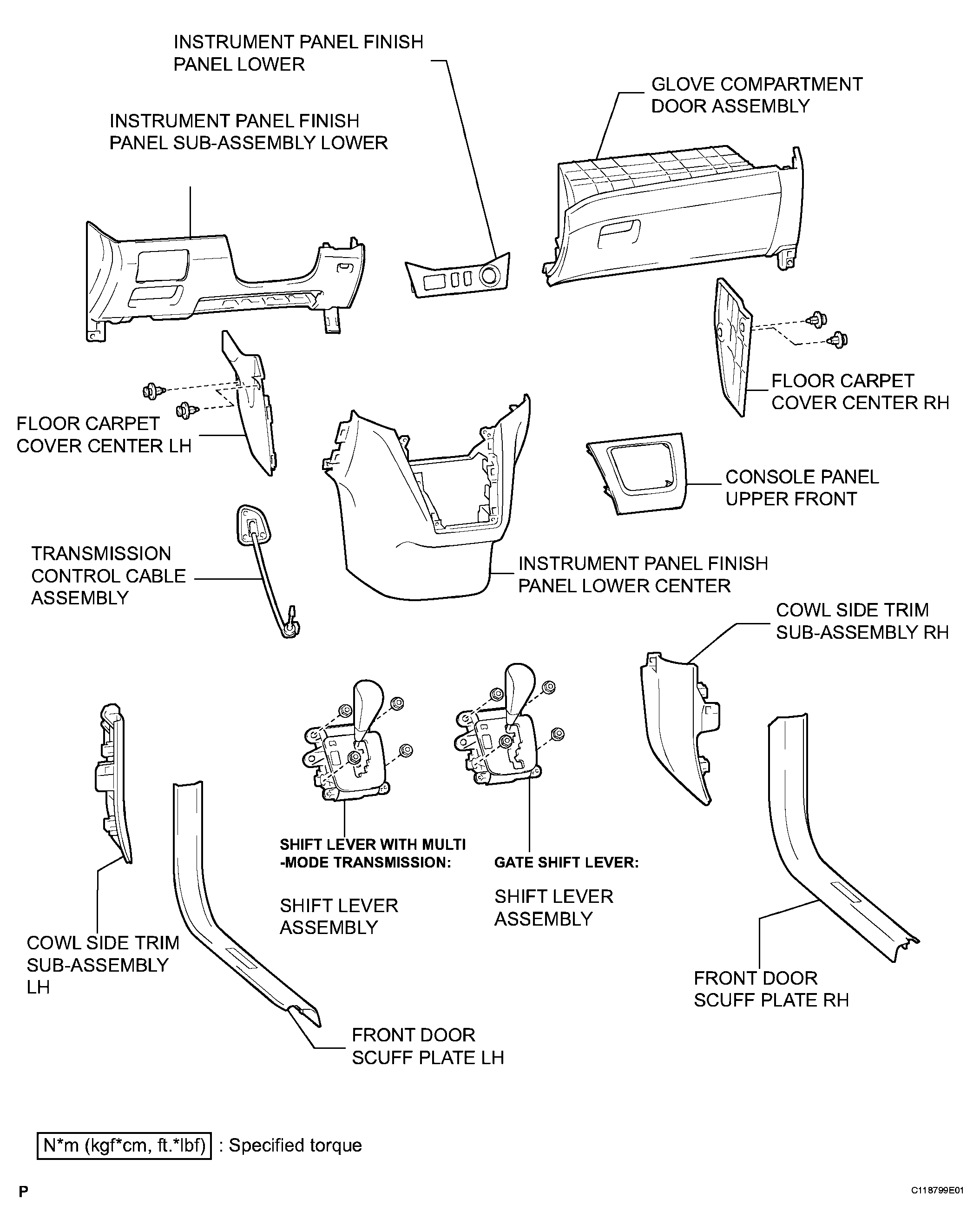

Fig 2: Identifying Transmission Control Cable Assembly Components (2 Of 2)
G04089188Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
