Transfer Assembly: Components

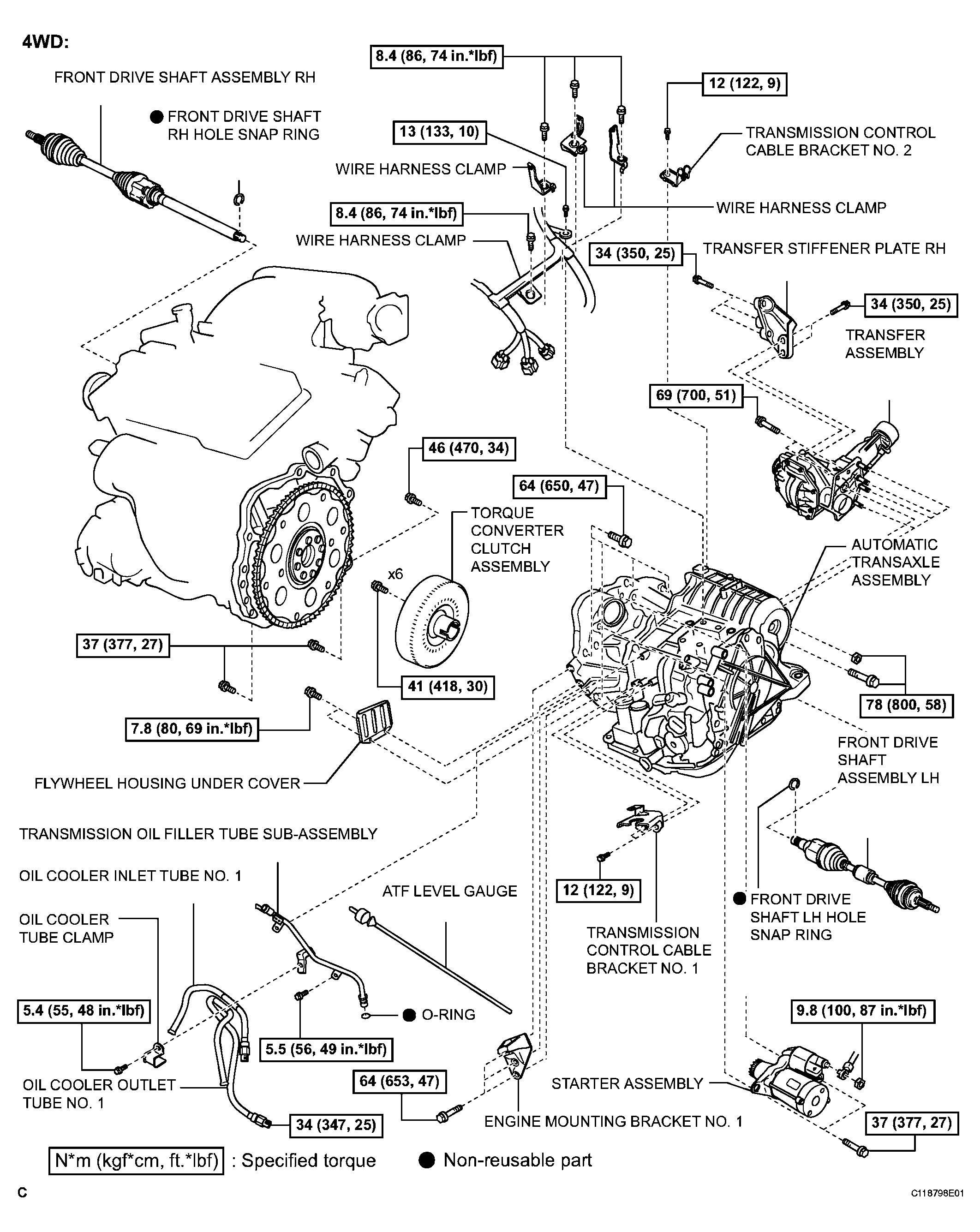

Fig 1: Transfer Assembly Replacement Components With Torque Specifications
G04089715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
