Door Control Receiver: Removal

  1. REMOVE TONNEAU COVER ASSEMBLY
  2. REMOVE DECK BOARD SUB-ASSEMBLY (See  REMOVAL  )
  3. REMOVE DECK FLOOR BOX FRONT (See  REMOVAL  )
  4. REMOVE DECK FLOOR BOX REAR (See  REMOVAL  )
  5. REMOVE NO. 3 DECK BOARD SUB-ASSEMBLY (See  REMOVAL  )
  6. REMOVE NO. 2 DECK BOARD SUB-ASSEMBLY (See  REMOVAL  )
  7. REMOVE BACK DOOR WEATHERSTRIP
  8. REMOVE REAR FLOOR FINISH PLATE (See  REMOVAL  )
  9. REMOVE DECK SIDE TRIM BOX LH (See  REMOVAL  )
  10. REMOVE DECK SIDE TRIM BOX RH (See  REMOVAL  )
  11. REMOVE REAR DOOR SCUFF PLATE (See  REMOVAL  )
  12. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP
  13. REMOVE DECK SIDE TRIM COVER (See  REMOVAL  )
  14. SEPARATE REAR NO. 1 SEAT OUTER BELT ASSEMBLY
    1. Remove the bolt, and separate rear No.1 seat outer belt assembly.
  15. REMOVE REAR SEAT SIDE COVER (See  REMOVAL  )
  16. REMOVE REAR FLOOR FINISH SIDE PLATE (See  REMOVAL  )
  17. REMOVE ROPE HOOK (See  REMOVAL  )
  18. REMOVE DECK TRIM SIDE PANEL ASSEMBLY (See  REMOVAL  )
  19. REMOVE NO. 2 ROOM LIGHT ASSEMBLY (See  REMOVAL  )
  20. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER (See  REMOVAL  )
  21. REMOVE DOOR CONTROL RECEIVER
    1. Disconnect the connector.
    2. Remove the bolt and the door control receiver.

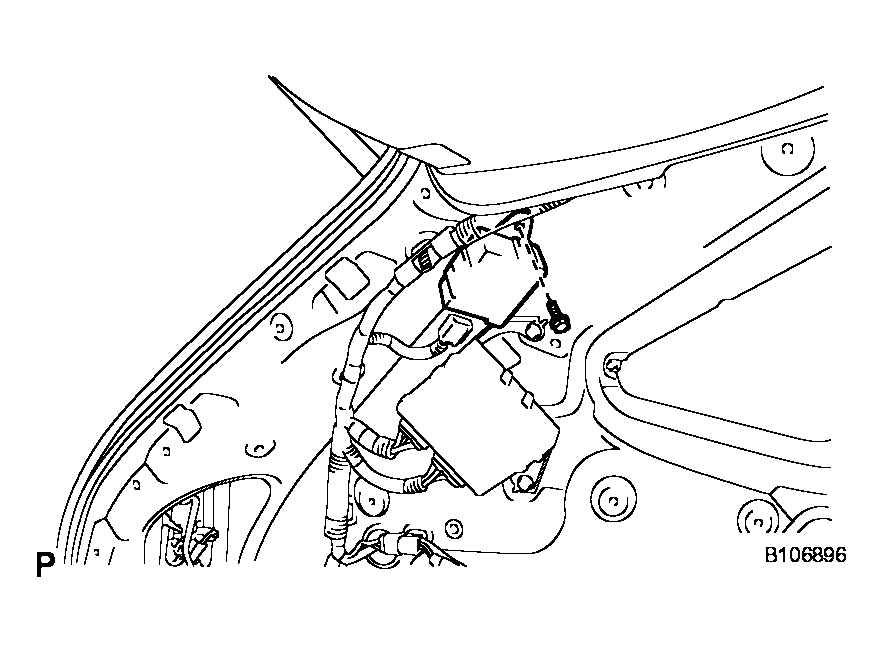

    Fig 1: Removing Door Control Receiver Bolt
    G04092512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
