OEM System Circuits: Horn: Notes

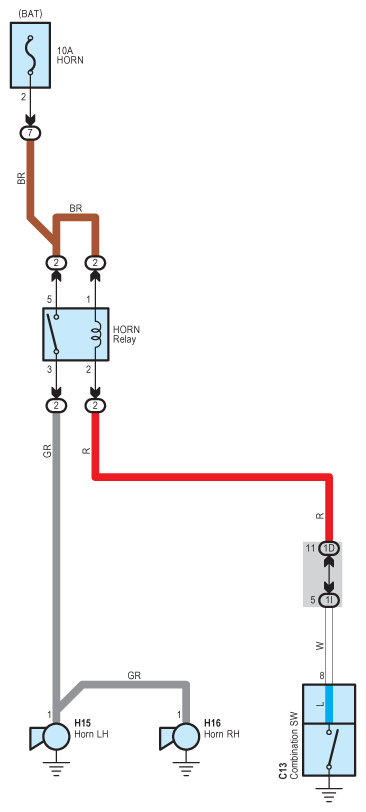

Fig 1: Horn - Wiring Diagram

G08929061

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
