Accelerator Pedal Rod: Removal

1. REMOVE ACCELERATOR PEDAL ROD ASSEMBLY

1. Disconnect the accelerator position sensor connector.
2. Remove the 2 bolts, and then remove the accelerator pedal rod.

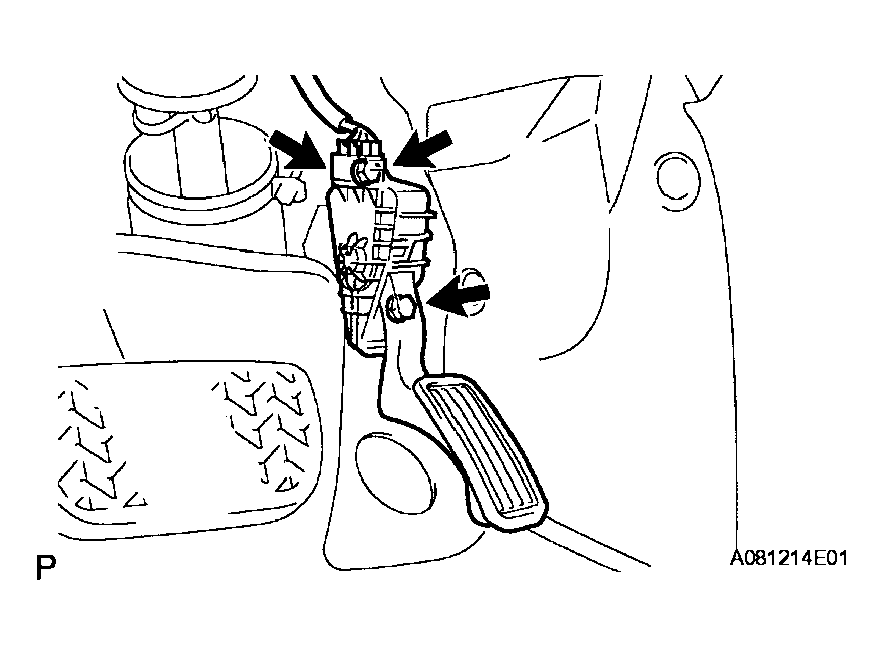

Fig 1: Removing Accelerator Pedal Rod Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
