Fog Light Assembly: Installation

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FOG LIGHT ASSEMBLY
    1. Engage the 3 claws and install the fog light assembly.

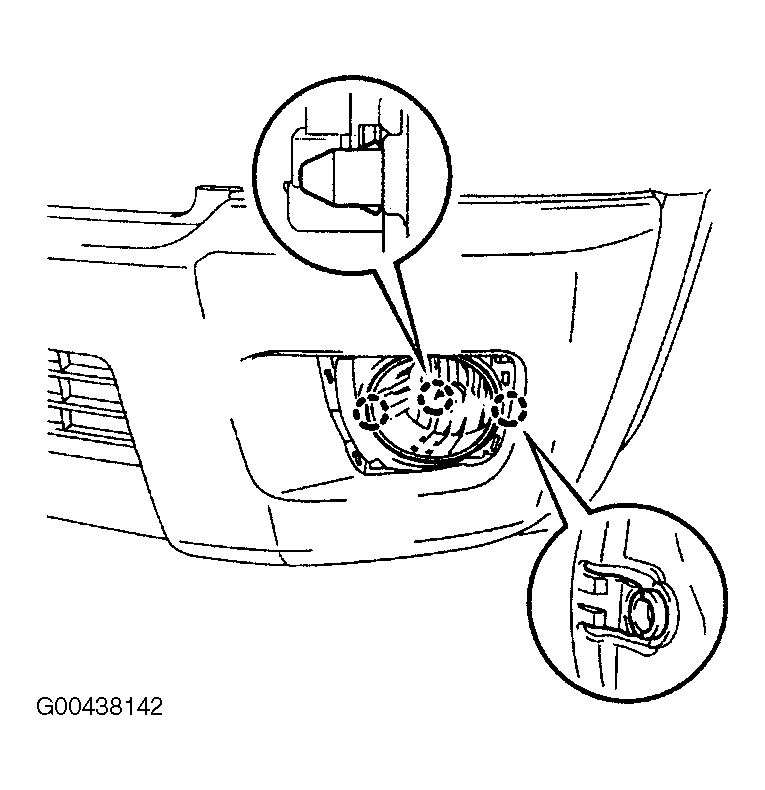

    Fig 1: Installing Fog Light Assembly
    G00438142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT BUMPER HOLE COVER
    1. Engage the 4 claws and install the front bumper hole cover.
    Fig 2: Installing Front Bumper Hole Cover
    G00438143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT BUMPER ASSEMBLY (SEE  INSTALLATION  )
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  5. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT
  6. PREPARATION FOR FOG LIGHT AIMING
  7. FOG LIGHT AIMING INSPECTION
  8. FOG LIGHT AIMING ADJUSTMENT
  9. PERFORM INITIALIZATION
