Headlight Assembly: Disassembly

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE HEADLIGHT NO. 1 BULB
1. Remove the headlight No. 1 bulb as shown in Fig 1 .

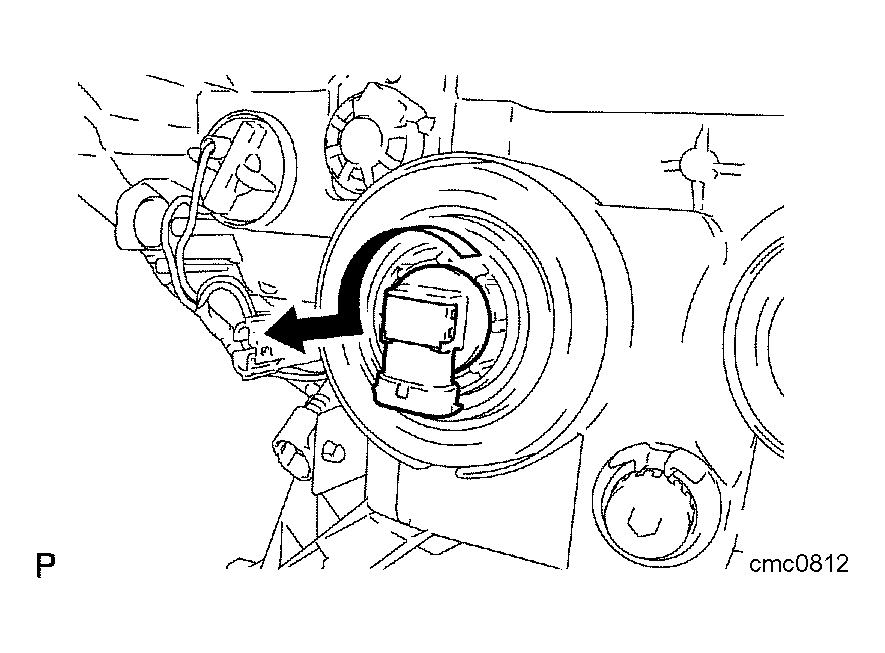

  Fig 1: Removing Headlight No. 1 Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEADLIGHT NO. 2 BULB
1. Remove the headlight No. 2 bulb as shown in Fig 2 .

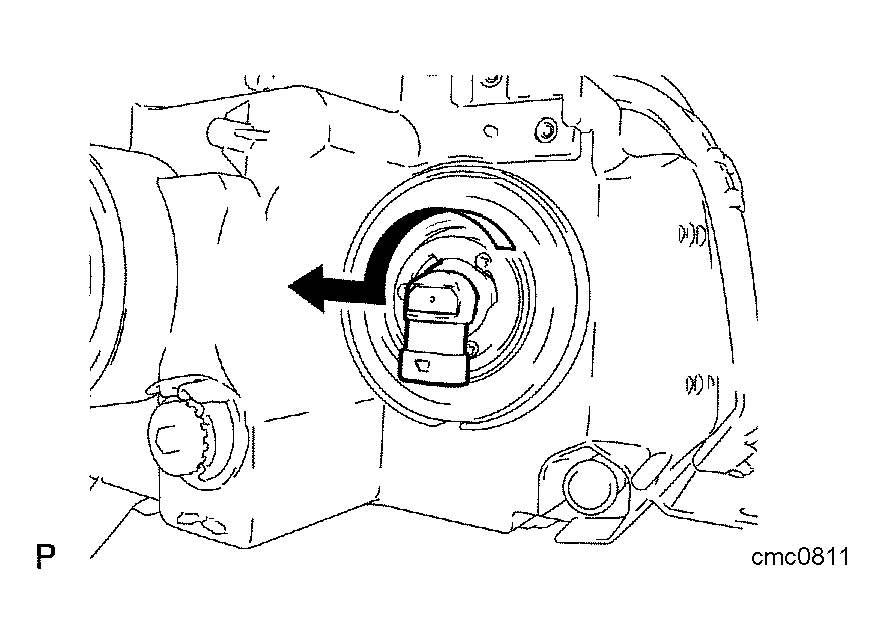

  Fig 2: Removing Headlight No. 2 Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT TURN SIGNAL LIGHT BULB
1. Remove the front turn signal light bulb as shown in Fig 3 .

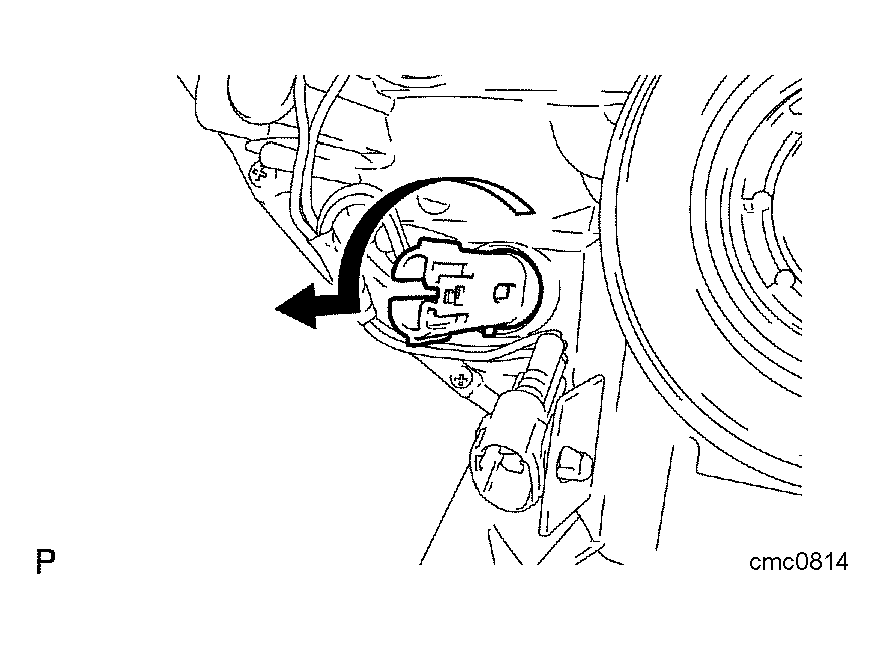

  Fig 3: Removing Front Turn Signal Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CLEARANCE LIGHT BULB
1. Remove the clearance light bulb as shown in Fig 4 .

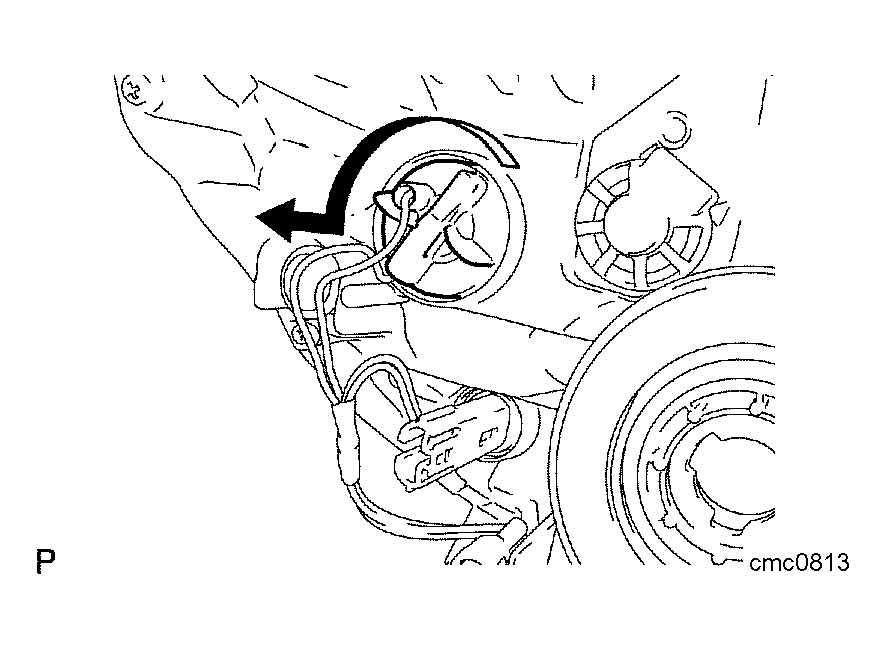

  Fig 4: Removing Clearance Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
