Headlight Assembly: Installation

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL HEADLIGHT ASSEMBLY
    1. Install the headlight assembly with the 3 screws and the bolt.
    2. Connect the connectors.

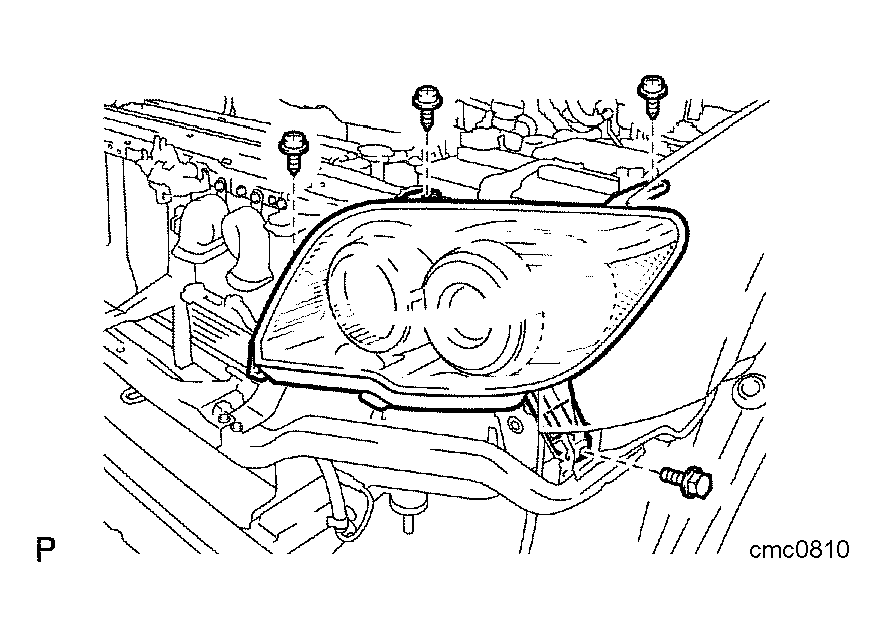

      Fig 1: Installing Headlight Assembly
      G04331997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT BUMPER FILLER
    1. Install the front bumper filler with the clip.

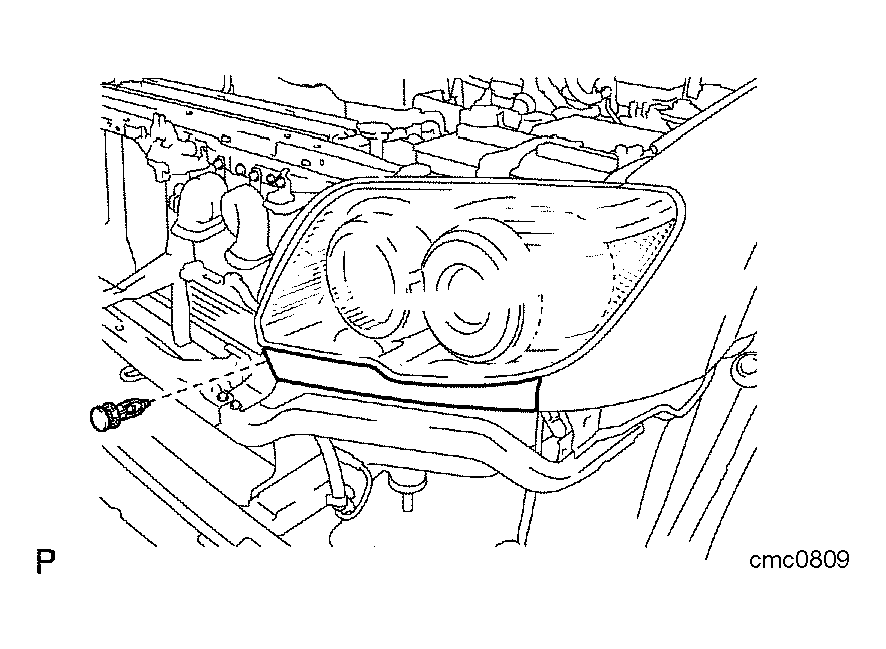

    Fig 2: Installing Front Bumper Filler
    G04331998Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL RADIATOR SUPPORT SEAL UPPER
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  5. INSTALL FRONT BUMPER ASSEMBLY (SEE  INSTALLATION  )
  6. VEHICLE PREPARATION FOR HEADLIGHT AIM ADJUSTMENT
  7. PREPARATION FOR HEADLIGHT AIMING (Using a tester)
  8. PREPARATION FOR HEADLIGHT AIMING (Using a screen)
  9. HEADLIGHT AIMING INSPECTION
  10. HEADLIGHT AIMING ADJUSTMENT
  11. PERFORM INITIALIZATION
