Front No.2 Speaker ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH (See OVERHAUL )
REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH (See OVERHAUL )
REMOVE FRONT ARMREST ASSY LH (See OVERHAUL )
REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH (See OVERHAUL )
REMOVE FRONT NO.2 SPEAKER ASSY
1. Disconnect the connector and remove the 2 bolts.
2. Remove the front No.2 speaker assy from speaker mounting bracket No.1.

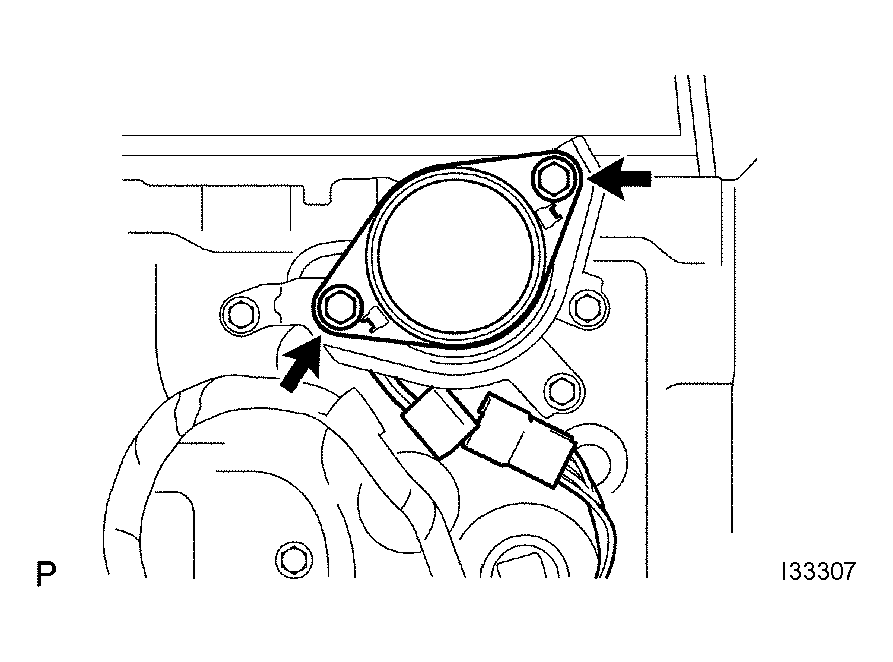

  Fig 1: Removing Front No. 2 Speaker Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO.2 SPEAKER ASSY
1. Align a claw with the notch of the speaker mounting bracket No.1, and install the front No.2 speaker assy with 2 bolts.
2. Connect the connector.

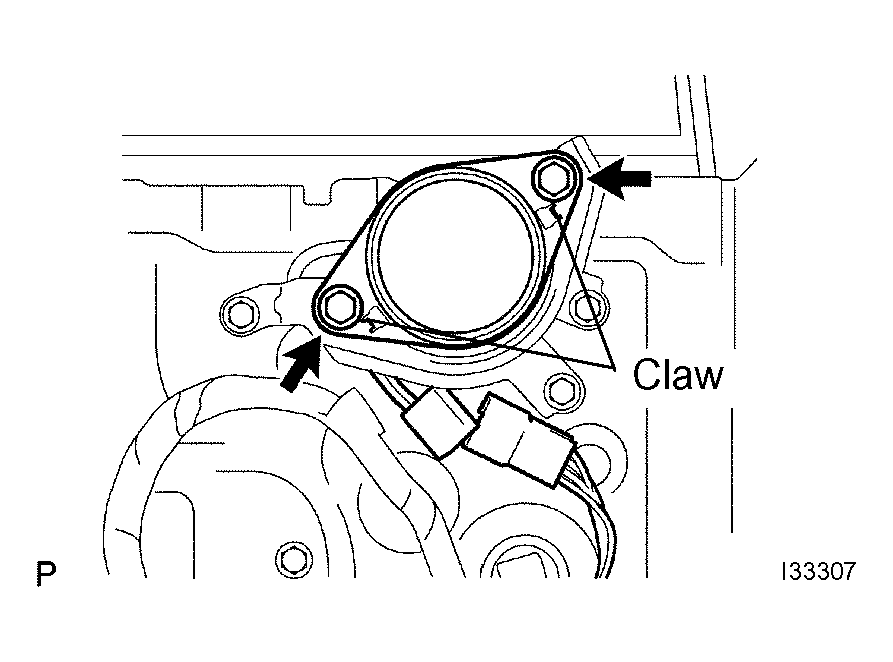

  Fig 2: Installing Front No. 2 Speaker Assy With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
