How To Determine Nut Strength

Nut Type

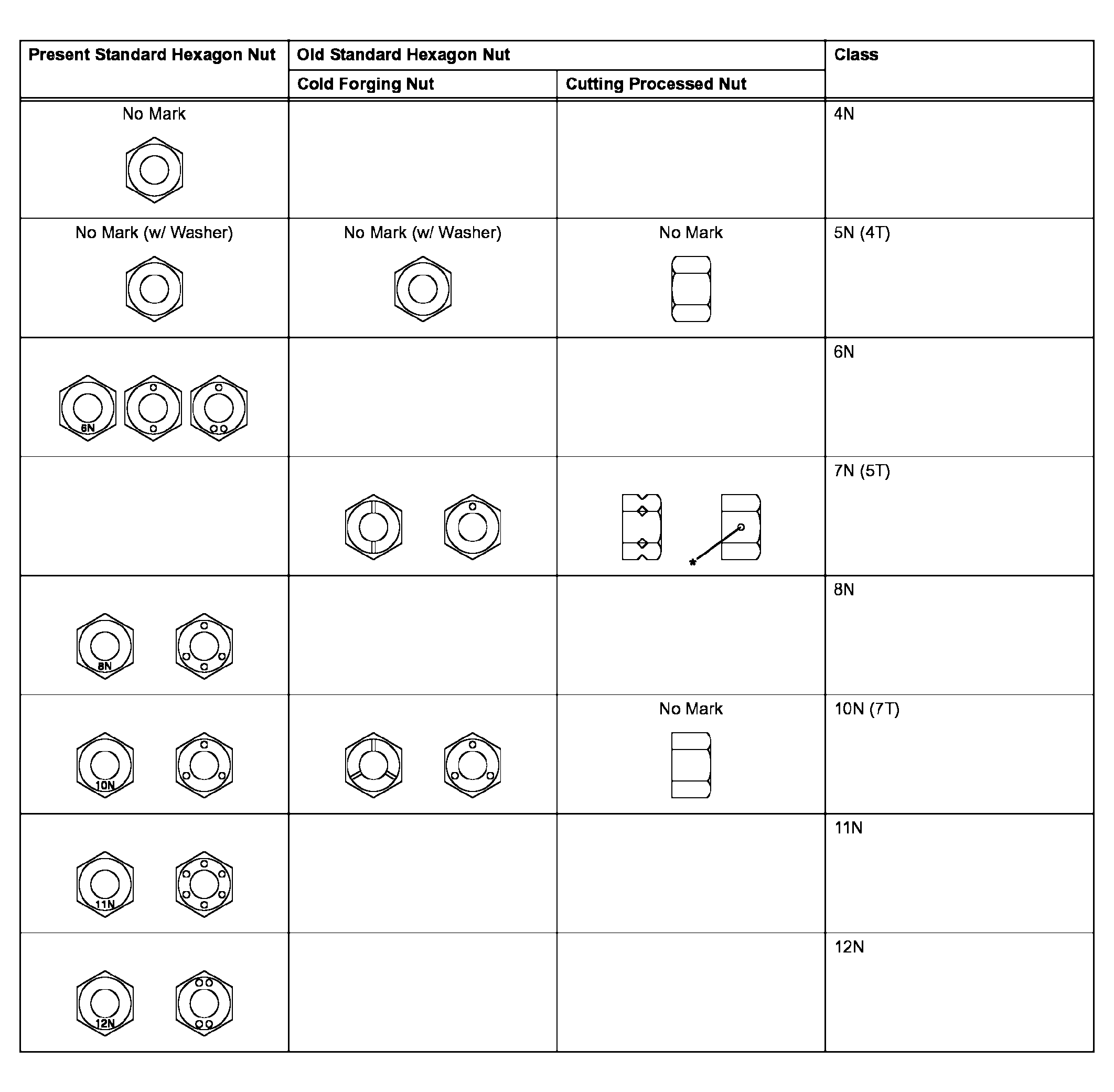

Fig 1: Standard Nuts Strength Specification Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• *: Nut with 1 or more marks on one side surface of the nut.
• Use the nut with the same number of the nut strength classification or greater than the bolt strength classification number when tightening parts with a bolt and nut.

  Example:

• Bolt = 4T
• Nut = 4N or more
