Pattern Select Switch Circuit: Wiring Diagram

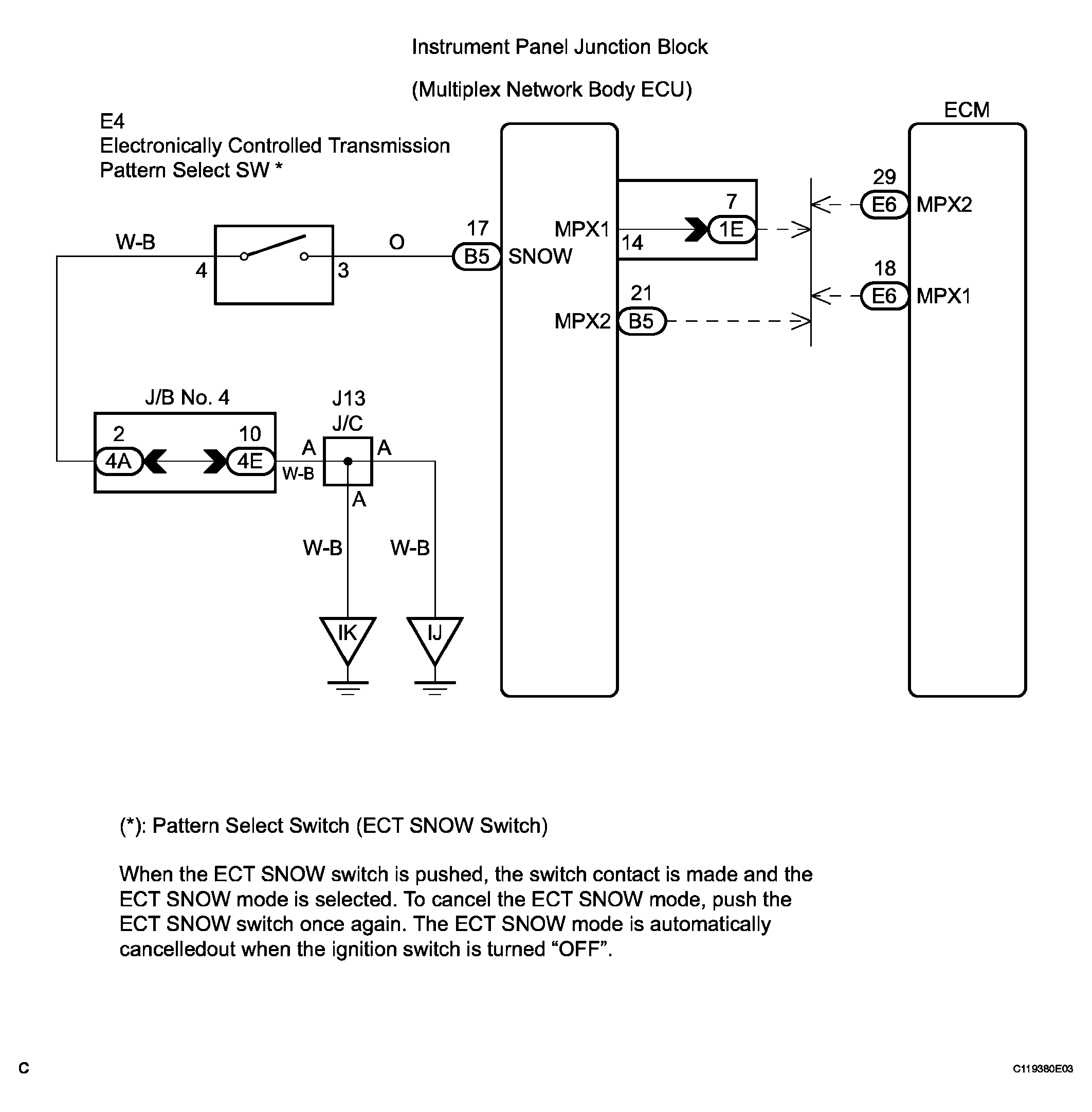

Fig 1: Pattern Select Switch Circuit
G04088462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
